EXSYS EX-49222 USB-C paneeliasennus-adapterikaapeli, USB 3.2 Gen 2, 10Gbps, 100W PD, 30cm

Deliver 10Gbps data and 100W power through a panel with this USB-C adapter cable. The EXSYS EX-49222 provides a secure panel-mount USB-C female port connected to a 30cm cable with a USB-C male plug, supporting USB 3.2 Gen 2 and DisplayPort Alt Mode.

Overview

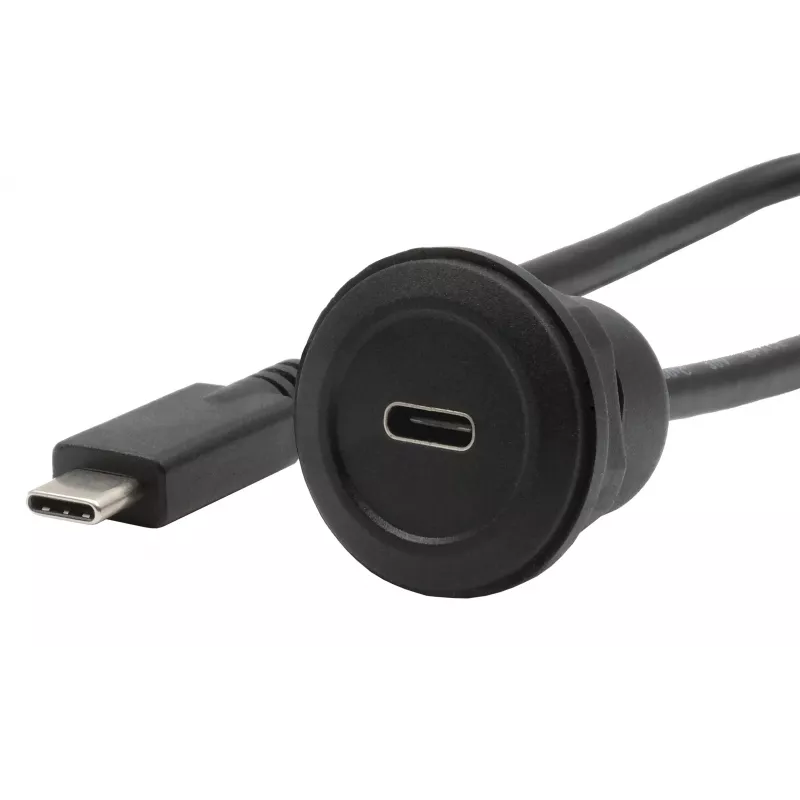

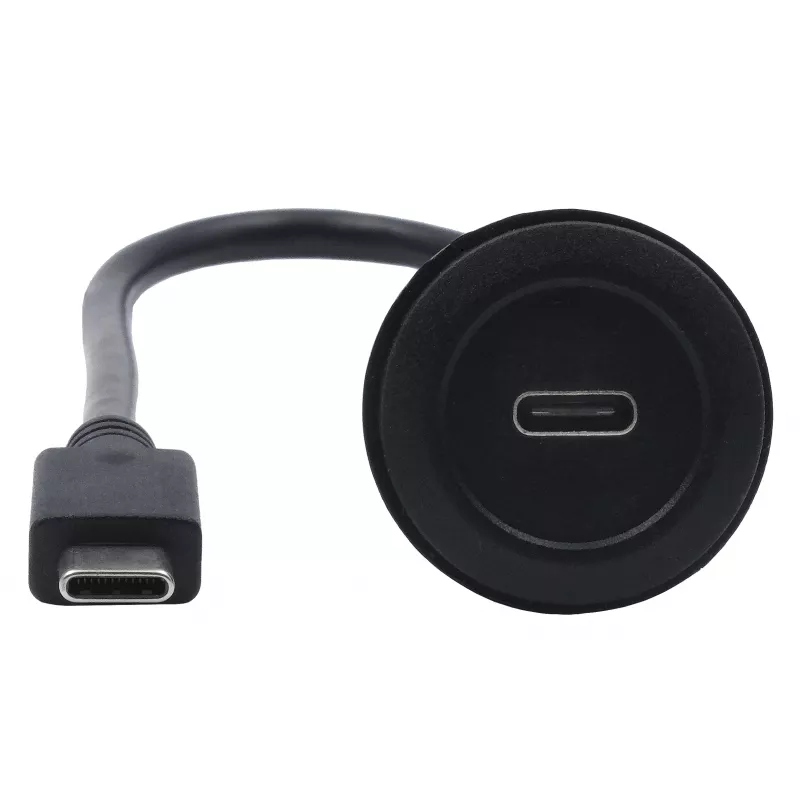

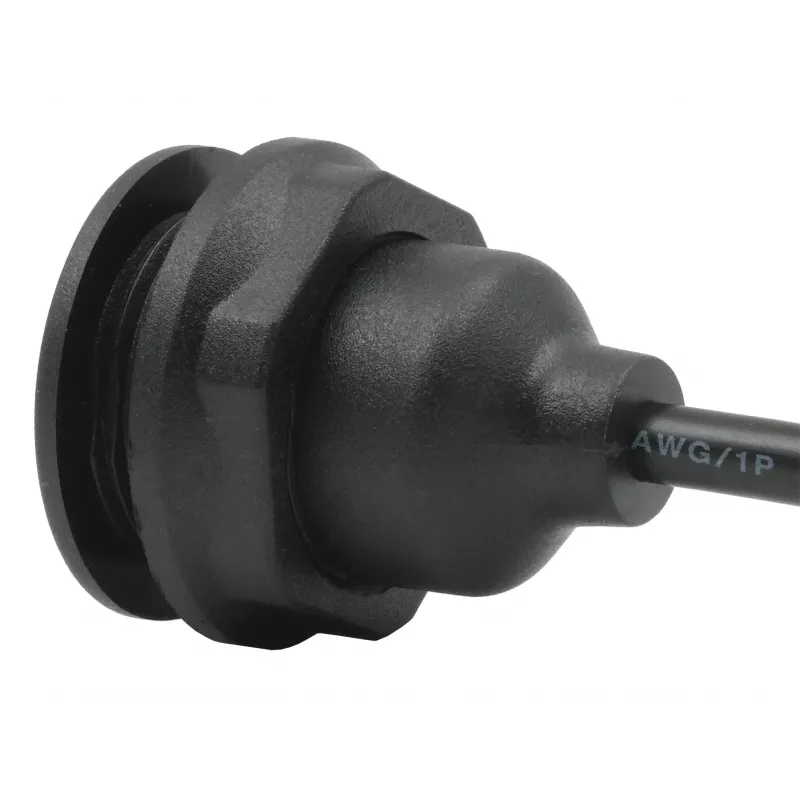

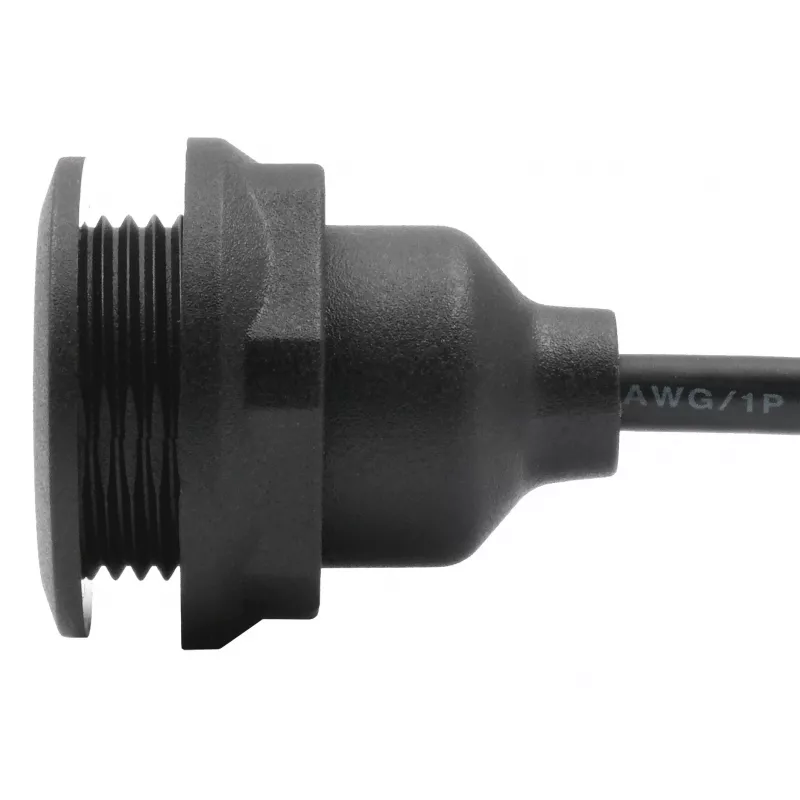

The EXSYS EX-49222 is a panel mount adapter cable that converts a USB-C male connector to a panel-mountable USB-C female port. It is designed for integration into PC cases, industrial panels, and custom enclosures. The cable supports USB 3.2 Gen 2 data transfer rates up to 10Gbps and USB Power Delivery up to 100W (20V/5A). It also supports DisplayPort Alternate Mode for video output. The cable is 30cm long and features a black PVC jacket.

What stands out

• USB 3.2 Gen 2 speed: 10Gbps data transfer
• Power Delivery up to 100W (20V/5A)
• DisplayPort Alt Mode for video output
• Panel mount design with 25 x 10 mm mounting hole
• 30cm cable length for flexible installation

Technical details

• Connector 1: USB-C Male
• Connector 2: USB-C Female (panel mount)
• USB Standard: USB 3.2 Gen 2
• Data Transfer Rate: 10 Gbps
• Power Delivery: Up to 100W (20V/5A)
• Video Support: DisplayPort Alternate Mode
• Cable Length: 30 cm
• Mounting Hole Dimensions (W x H): 25 x 10 mm
• Mounting Plate Dimensions (W x H): 30 x 15 mm
• Cable Color: Black
• Cable Jacket Material: PVC
• Backward Compatibility: USB 3.1 Gen 1 (USB 3.0), USB 2.0

Our verdict

A reliable panel-mount USB-C solution for custom builds and industrial applications, delivering high-speed data, power, and video in a compact form factor.
