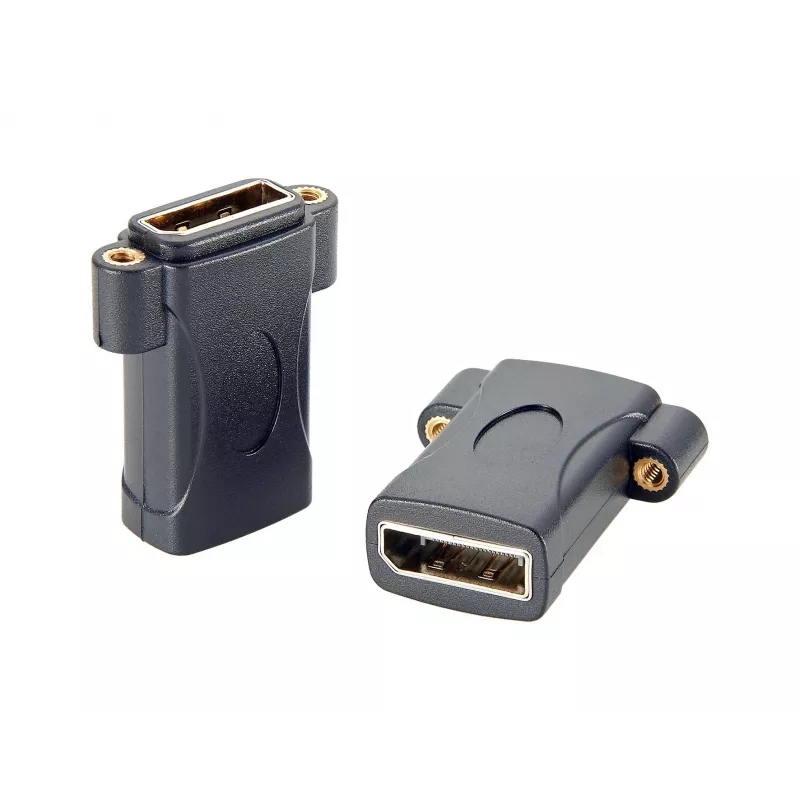

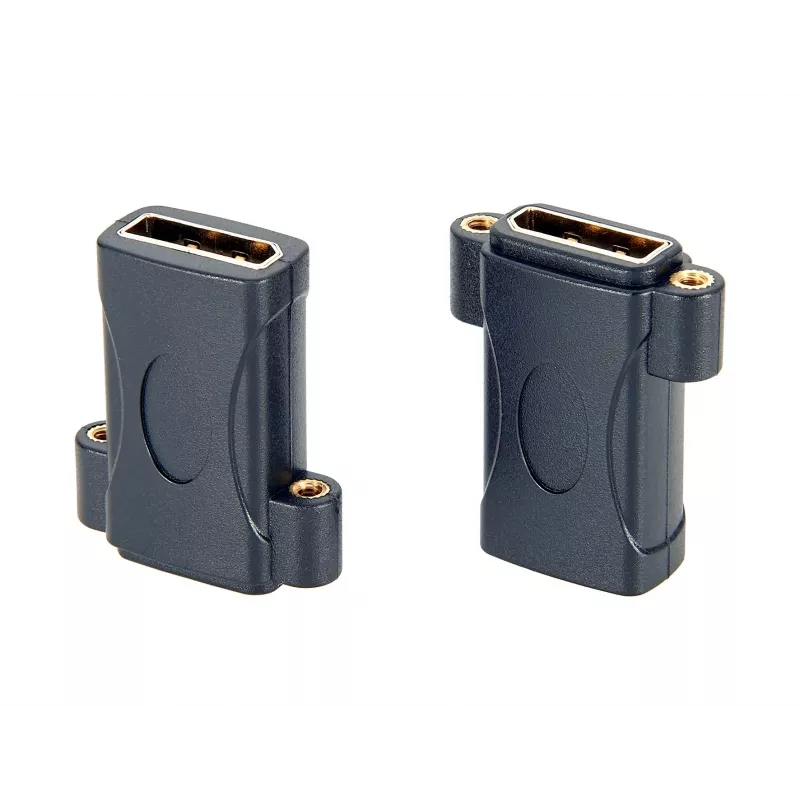

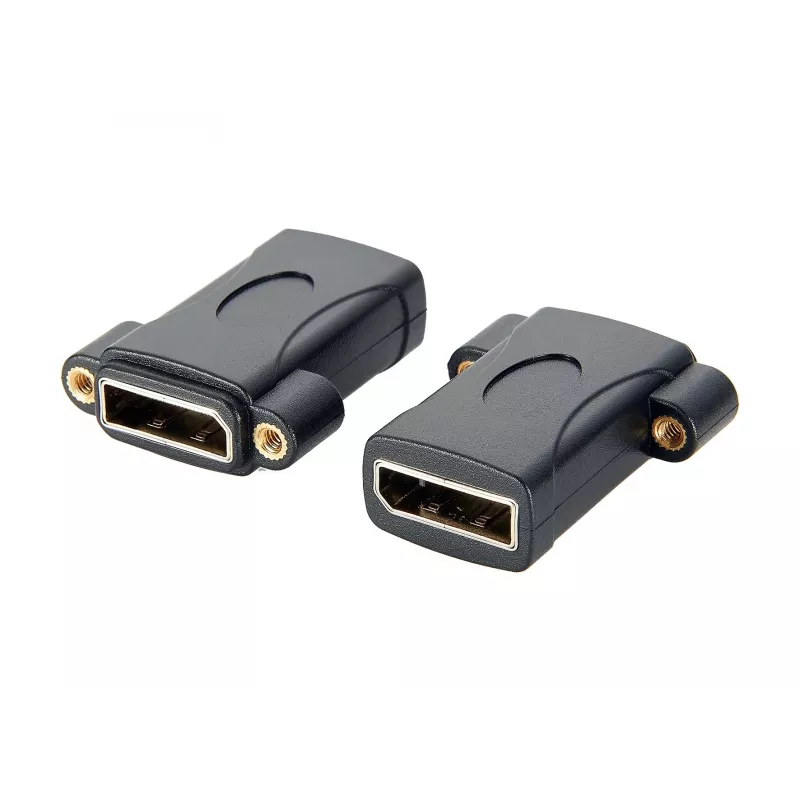

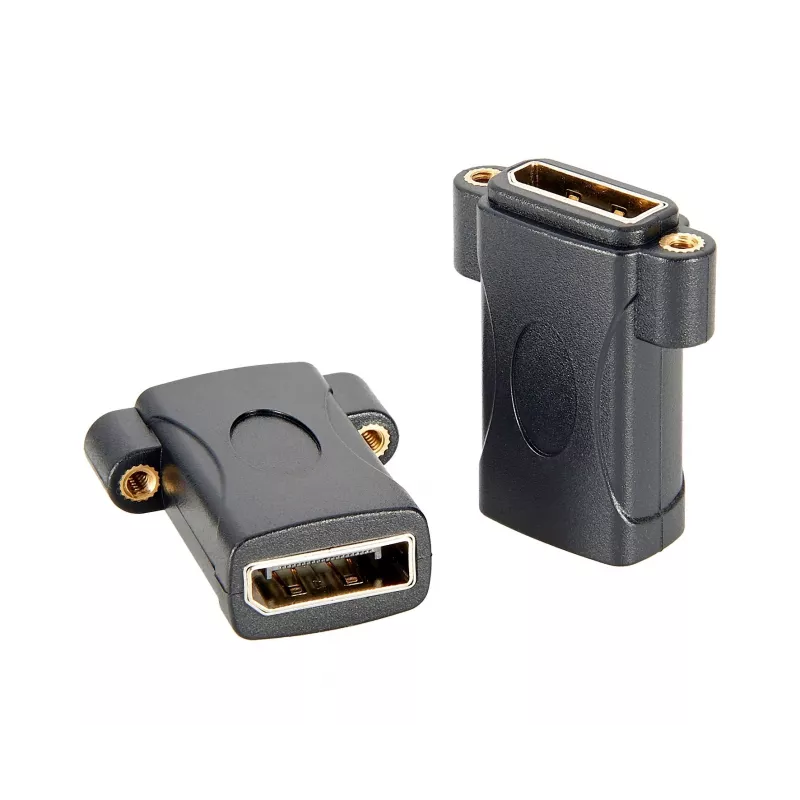

EXSYS EX-49304 paneeliasennettava DisplayPort naaras-naaras-adapteri, ruuvattava, 8K 60Hz

Integrating a DisplayPort connection into a panel or enclosure often requires a reliable, secure port that can withstand repeated plugging and unplugging. The EXSYS EX-49304 addresses this by providing a screwable, panel-mount DisplayPort female-to-female coupler that turns a standard cable connection into a fixed, robust port.

Who is it for

This adapter is intended for system integrators, AV professionals, and industrial users who need to mount a DisplayPort interface on a machine housing, control cabinet, or custom enclosure. It is also suitable for custom PC builds where a front-panel DisplayPort port is desired.

Main features

• Panel-mount design with screwable flanges for secure installation.
• DisplayPort female to DisplayPort female coupler.
• Supports DisplayPort 1.4 with up to 8K resolution at 60Hz.
• Metal housing with gold-plated contacts for durability and signal integrity.
• Compact cutout dimensions of approximately 20 x 15 mm.

Specifications

• Connector 1: DisplayPort Female
• Connector 2: DisplayPort Female
• DisplayPort Version: 1.4
• Maximum Resolution: 7680 x 4320 (8K) @ 60Hz
• Maximum 4K Resolution: 3840 x 2160 @ 120Hz
• Bandwidth: 32.4 Gbps (HBR3)
• HDCP Support: HDCP 2.2 / 1.4
• Audio Support: Yes (multi-channel digital audio)
• Housing Material: Metal
• Contact Plating: Gold-plated
• Mounting Method: Screwable (M3)
• Installation Cutout: Approx. 20 x 15 mm

Tips

When installing, ensure the panel cutout is precise to avoid stress on the adapter. Use M3 screws with appropriate length for your panel thickness. This adapter is passive, so no external power is required.
