EXSYS EX-6074POE-2 PCI Express nelinkertainen Gigabit Ethernet PoE+ -verkkokortti

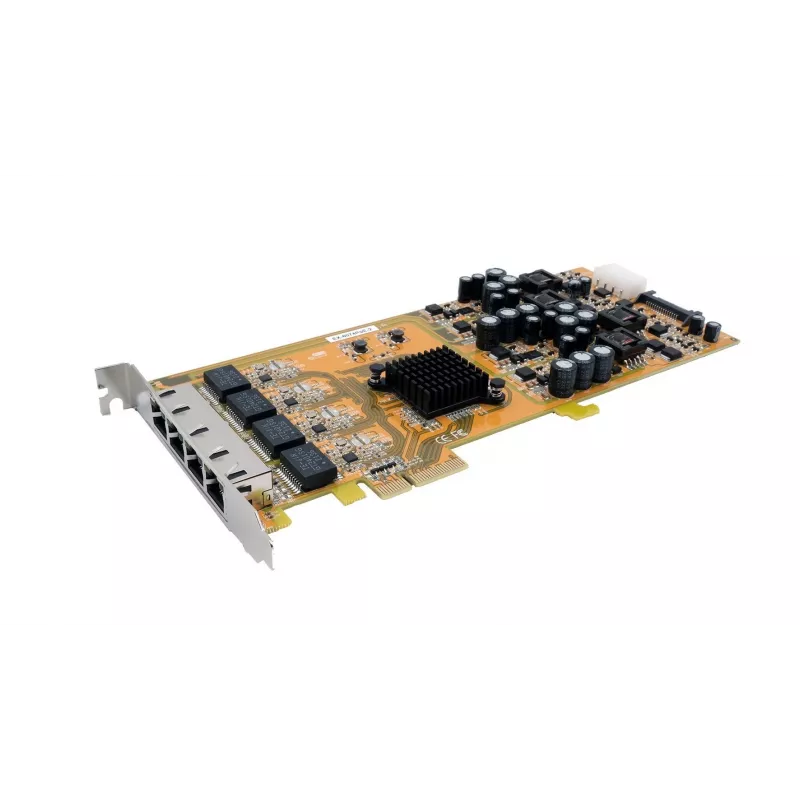

Adding four Gigabit Ethernet ports with Power over Ethernet to a server or workstation can be a challenge, especially when space and power budgets are tight. The EXSYS EX-6074POE-2 solves this by combining a quad-port Intel I350-AM4 controller with IEEE 802.3at PoE+ support on a single PCI Express x4 card. Each of the four RJ45 ports can deliver up to 30W to connected devices such as IP cameras, wireless access points, or VoIP phones, with a total power budget of 120W when an external 48-57V DC supply is connected via the 4-pin Molex connector.

Who is it for

System integrators, network administrators, and industrial PC builders who need to power multiple PoE devices from one server or workstation. It is ideal for surveillance systems, access control, digital signage, and edge computing applications where a separate PoE switch is impractical or too costly.

Main features

• Four Gigabit Ethernet ports with PoE+ (IEEE 802.3at) and PoE (IEEE 802.3af) support
• Intel I350-AM4 controller for reliable, high-performance networking
• Up to 30W per port, 120W total PoE budget with external 48-57V DC input
• PCI Express x4 interface, compatible with x4, x8, and x16 slots
• Includes both standard and low-profile brackets for flexible installation
• Supports jumbo frames up to 9.5 KB, VLAN tagging, and flow control
• Wake-on-LAN and PXE boot support for remote management
• LED indicators for link/activity and PoE status on each port

Specifications

• Host Interface: PCI Express x4
• Ethernet Ports: 4x RJ45
• Data Transfer Rate: 10/100/1000 Mbps
• PoE Standard: IEEE 802.3at (PoE+), IEEE 802.3af (PoE)
• Max PoE Power per Port: 30W
• Total PoE Power Budget: 120W (requires external 48-57V DC input)
• Chipset: Intel I350-AM4
• Jumbo Frame Support: Up to 9.5 KB
• VLAN Support: IEEE 802.1Q
• Flow Control: IEEE 802.3x
• Wake-on-LAN: Yes
• PXE Boot Support: Yes
• Operating Temperature: 0°C to 55°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 5% to 95% non-condensing
• Certifications: CE, FCC, RoHS
• Form Factor: Standard Profile (Low Profile bracket included)
• External Power Input: 4-pin Molex connector, 48-57V DC
• LED Indicators: Link/Activity, PoE Status

Tips

Ensure your system has an available PCIe x4 or larger slot and a spare 4-pin Molex power connector from the PSU. For full 120W PoE budget, use a 48-57V DC power supply with sufficient wattage. Install the latest Intel I350 drivers for optimal performance and compatibility with Windows, Linux, or VMware ESXi.
