EXTRA DIGITAL PoE 1000M injektori, 60W

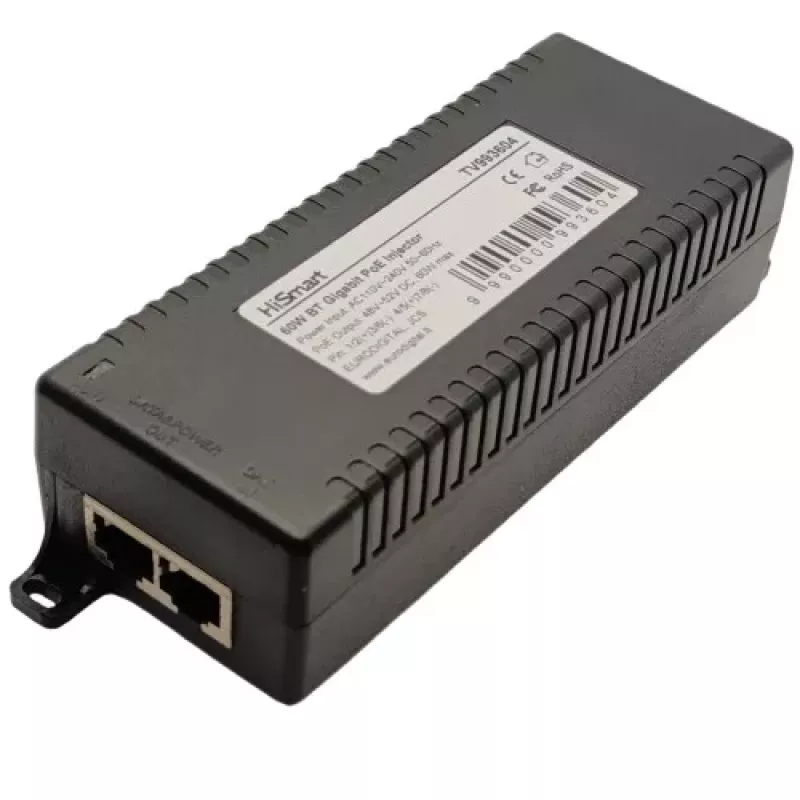

The EXTRA DIGITAL PoE-006 is a high-performance Power over Ethernet injector designed to deliver up to 60W of power and Gigabit data over a single Ethernet cable. Compliant with IEEE 802.3af/at/bt (Type 3) standards, it supports 4-pair power injection for high-power devices such as PTZ cameras, wireless access points, and VoIP phones. The metal housing ensures durability, while desktop and wall-mountable options provide flexible installation. With overload, short-circuit, over-voltage, and under-voltage protection, this injector ensures reliable and safe operation in demanding environments.

Advantages

Simplifies network setup by combining power and data transmission over one cable, eliminating the need for separate power outlets near devices. Supports high power output (60W) for demanding equipment, with robust protection features to safeguard connected devices. Compact metal design allows for versatile mounting options, saving space and reducing clutter.

Suitable for

• Powering PoE++ devices such as PTZ cameras, high-power wireless access points, and video phones
• Extending network reach up to 100 meters without additional power sources
• Industrial and commercial environments requiring reliable, protected power delivery

Key specifications

• PoE Standard: IEEE 802.3af/at/bt (Type 3)
• Ethernet Speed: 10/100/1000 Mbps (Gigabit)
• Max PoE Power Output: 60W
• Input Voltage: 100-240V AC, 50/60 Hz
• Output Voltage: 50-57V DC
• Data In Port: 1x RJ45 (Shielded)
• PoE Out Port: 1x RJ45 (Data + Power, Shielded)
• Power Pin Assignment: 4-Pair (Pins 1/2, 3/6, 4/5, 7/8)
• LED Indicators: Power, PoE Status
• Mounting Type: Desktop, Wall-mountable
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Operating Humidity: 5% to 90% non-condensing
• Protection Features: Overload, Short-circuit, Over-voltage, Under-voltage
• Max Cable Length: 100 meters (328 ft) for Ethernet
• Jumbo Frame Support: Up to 9K bytes
• Housing Material: Metal
• Certifications: CE, FCC, RoHS
• Power Plug Type: IEC C13 (AC Power Cord not included)

Recommendations

For optimal performance, use shielded CAT5e or higher Ethernet cables. Ensure the power source matches the input specifications. This injector is ideal for expanding PoE capabilities in existing networks without upgrading switches.
