EZVIZ CS-PBC24-R100-20AH 24W aurinkopaneeli akulla valkoinen

The EZVIZ CS-PBC24-R100-20AH is a 24W solar panel with an integrated 20Ah lithium iron phosphate battery, designed to provide reliable, off-grid power for EZVIZ outdoor cameras and devices. This all-in-one solar power solution ensures continuous operation even in low-light conditions, with robust protection features and easy wall or pole mounting.

Advantages

Integrated 20Ah LiFePO4 battery stores energy for nighttime or cloudy day use. High-efficiency monocrystalline solar panel with 24W peak power. IP65 weatherproof rating ensures durability outdoors. Over-charge, over-discharge, over-current, and short-circuit protection for safe operation. Includes mounting bracket for flexible installation.

Suitable for

• EZVIZ outdoor security cameras and devices
• Remote monitoring locations without mains power
• Solar-powered surveillance systems
• Off-grid or backup power applications

Key specifications

• Solar Panel Power: 24W (Max)
• Battery Capacity: 20 Ah (20000 mAh)
• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Output Voltage: 12V DC
• Max Output Current: 2A
• IP Rating: IP65
• Operating Temperature: -20°C to 50°C (-4°F to 122°F)
• Cable Length: 3 meters

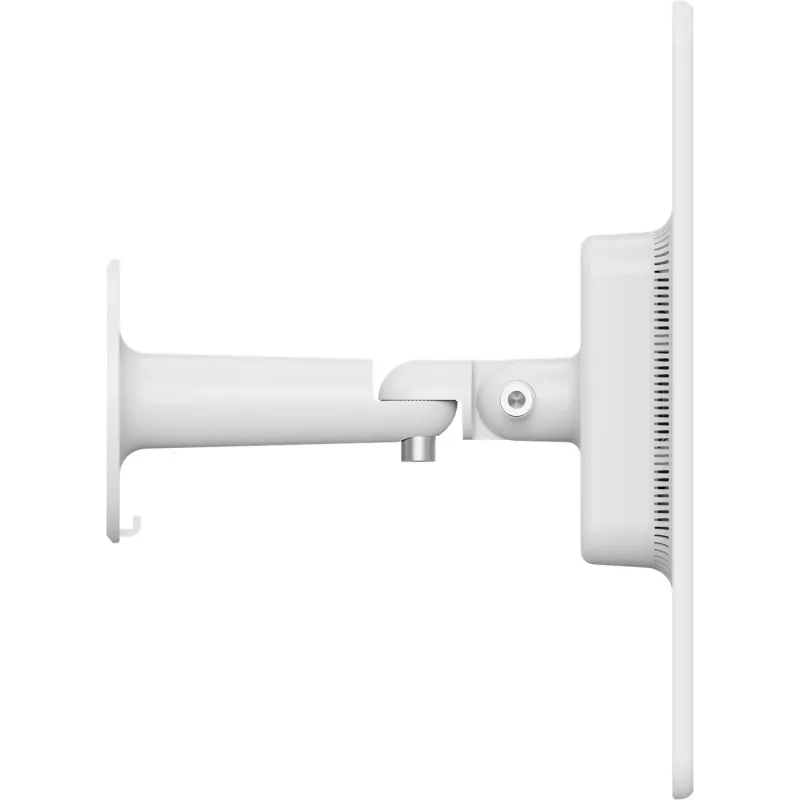

• Mounting Type: Wall/Pole Mount (Bracket Included)
• Compatibility: EZVIZ Outdoor Cameras/Devices
• Color: White
• Material: Aluminum Alloy, Tempered Glass, Plastic
• Charging Interface: DC Power Jack
• Protection Features: Over-charge, Over-discharge, Over-current, Short-circuit
• Energy Storage: Integrated Battery
• Maximum Power Voltage (Vmp): 18V
• Open Circuit Voltage (Voc): 21.6V
• Short Circuit Current (Isc): 1.45A

Recommendations

For optimal performance, position the solar panel to receive maximum sunlight. Compatible with EZVIZ outdoor cameras that support DC power input. Ensure the mounting surface is sturdy and the bracket is securely attached.
