F-tyypin naaras BNC-uros-adapteri GETFORT GF-WBNC HQ 100 kpl

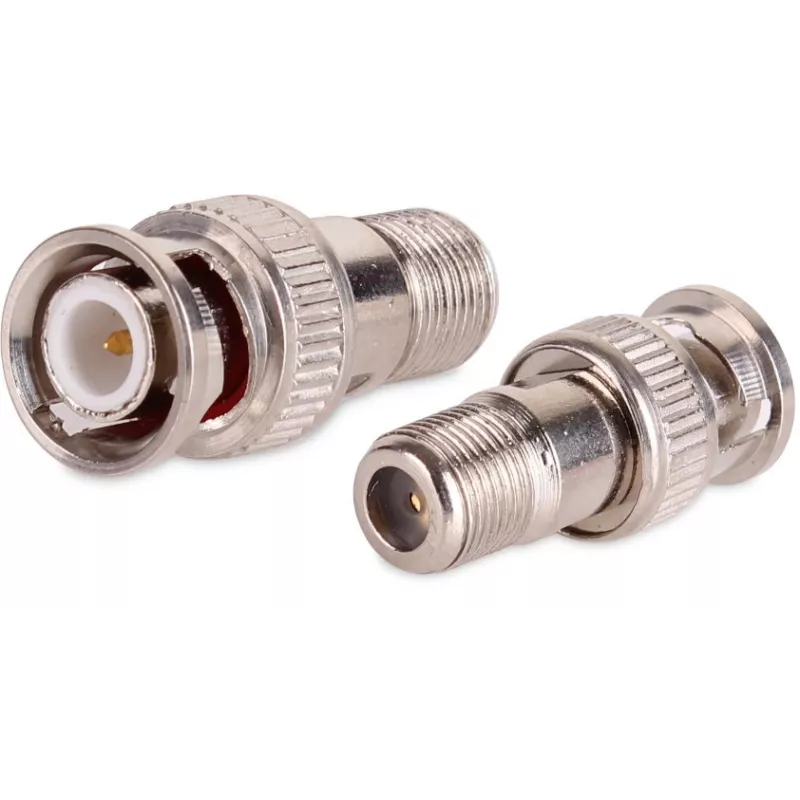

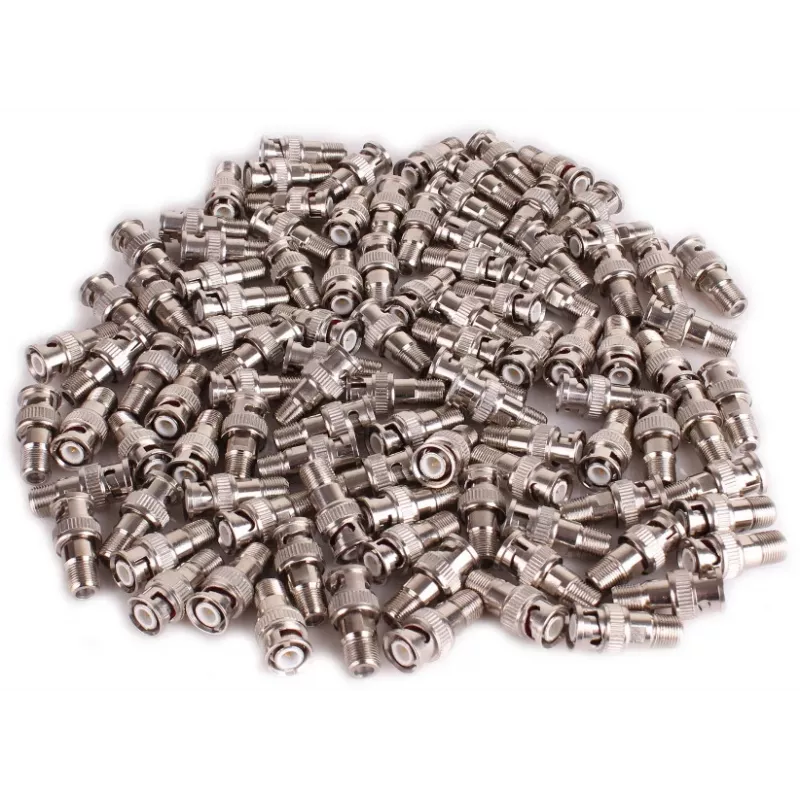

The GETFORT GF-WBNC HQ is a high-quality F-Type female to BNC male adapter, designed for reliable signal transmission in CCTV, satellite TV, and antenna systems. This pack of 100 pieces ensures you have a sufficient supply for multiple installations. The adapter features a straight body style, nickel-plated brass construction, and PTFE insulator for durability and consistent performance.

Advantages

High-quality nickel-plated brass construction ensures excellent conductivity and corrosion resistance. PTFE insulator provides stable dielectric properties. Low VSWR (<1.2:1) and insertion loss (<0.2 dB) guarantee minimal signal degradation. Suitable for a wide frequency range from DC to 1 GHz. RoHS compliant for environmental safety.

Suitable for

• CCTV systems
• Satellite TV installations
• Antenna systems
• RF applications

Key specifications

• Connector A: F-Type Female
• Connector B: BNC Male
• Impedance: 75 Ohm
• Frequency Range: DC - 1 GHz
• Material: Nickel-plated Brass
• Insulator: PTFE
• Body Style: Straight Adapter
• Mounting: Free Hanging / In-line
• Quantity: 100 pieces
• VSWR: <1.2:1
• Insertion Loss: <0.2 dB
• Operating Temperature: -40°C to +85°C
• Dielectric Withstanding Voltage: 1500 V RMS
• Durability: 500 mating cycles
• RoHS Compliant

Recommendations

For optimal performance, use with 75 Ohm coaxial cables and ensure proper termination. Ideal for professional installers and DIY enthusiasts.
