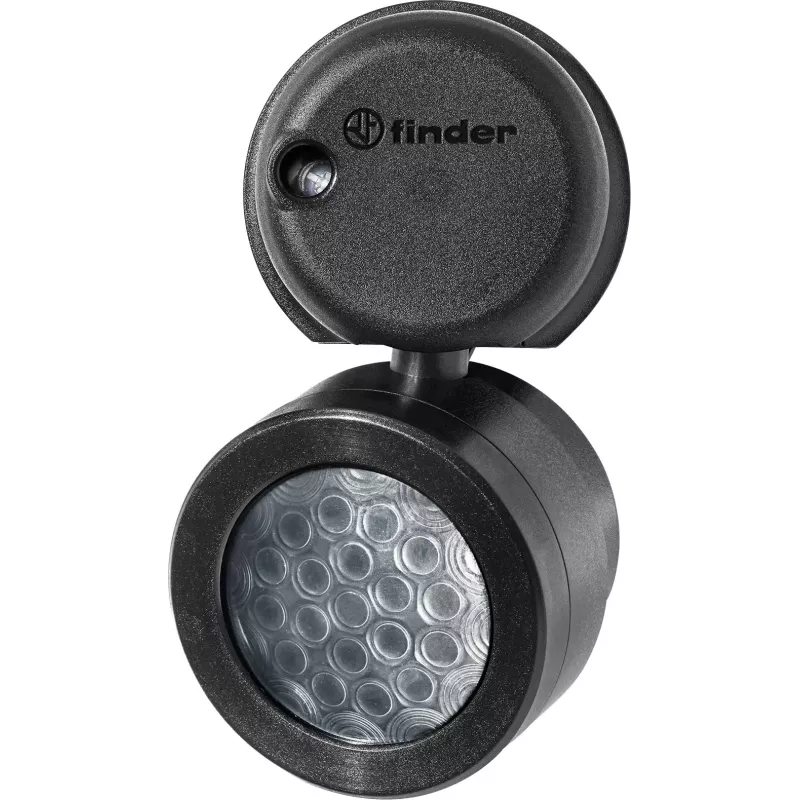

Finder 18.71 liiketunnistin, 230 V AC, 1 NO, 180°, 12 m, IP54 18.71.8.230.0002

Detect movement across a 180° field with a tangential range up to 12 m using the Finder 18.71 motion detector. It operates on 230 V AC (184–253 V) and provides a relay output with one normally open contact for switching loads up to 10 A.

Overview

The Finder 18.71 is a wall-mounted passive infrared motion detector for indoor and outdoor use. It runs on 230 V AC at 50/60 Hz and offers adjustable lux level (5–1000 lux) and time delay (10 s–12 min). The relay output can switch incandescent loads up to 2000 W or LED/CFL loads up to 1000 W.

What stands out

• Wide 180° detection angle and 12 m tangential range
• Adjustable lux and time delay for flexible automation
• IP54 protection for dusty or damp environments
• Relay output with 10 A switching capacity

Technical details

• Operating voltage: 230 V AC (184–253 V AC)
• Frequency: 50/60 Hz
• Output: Relay, 1 NO contact
• Max switching current: 10 A
• Max switching power: 2000 W incandescent, 1000 W LED/CFL
• Detection angle: 180°
• Detection range: up to 12 m tangential
• Adjustable lux: 5–1000 lux
• Adjustable time delay: 10 s–12 min
• Protection rating: IP54
• Operating temperature: -20 to +50 °C
• Recommended installation height: 1.8–2.5 m
• Dimensions: 65.3 x 51 x 100.4 mm

Our verdict

A robust motion detector for lighting control in corridors, stairwells, and outdoor areas. Its adjustable settings and IP54 rating make it versatile for both residential and commercial use.
