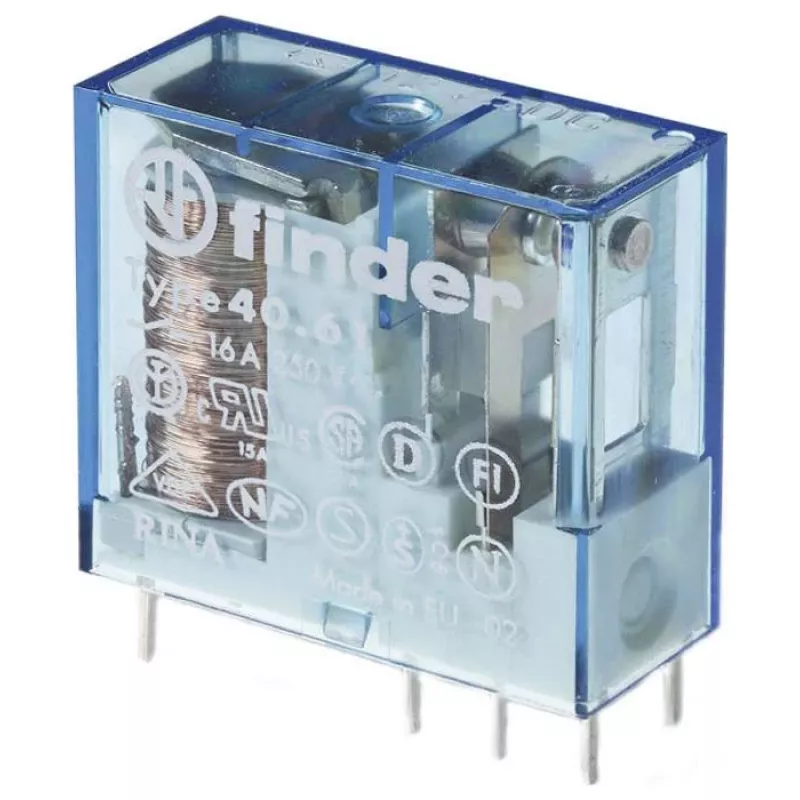

Finder 40.61.9.018.4000 tehorele 16A SPDT 18V DC PCB-asennus

Automation engineers and panel builders use the Finder 40.61.9.018.4000 power relay to switch AC loads up to 16 A in industrial control cabinets. Its compact PCB-mount design and 18 V DC coil suit dense DIN-rail assemblies.

Key specifications

• Contact configuration: 1 CO (SPDT)
• Rated current: 16 A
• Rated voltage: 250 V AC
• Max. switching voltage: 400 V AC
• Max. switching power: 4000 VA
• Coil voltage: 18 V DC
• Coil power: 0.6 W
• Contact material: AgNi
• Dielectric strength coil-contacts: 6 kV (1.2/50 µs)
• Dielectric strength open contacts: 1000 V AC
• Operating temperature range: -40 to +70 °C
• Mounting type: PCB mount
• Protection degree: RT I (flux proof)
• Electrical life (AC1): 100,000 cycles
• Mechanical life: 10,000,000 cycles
• Terminal type: PCB pins

Why choose it

The AgNi contacts handle high inrush currents, and the 6 kV isolation between coil and contacts protects control circuits from voltage spikes. Flux-proof construction resists contamination during wave soldering.

Ideal use cases

• Switching motors, heaters, and lighting in industrial automation
• Interface between PLC outputs and high-power loads
• PCB assemblies requiring a compact, high-current relay

Good to know

Approvals include VDE, UL, and CSA. The relay is supplied in single-unit packaging.
