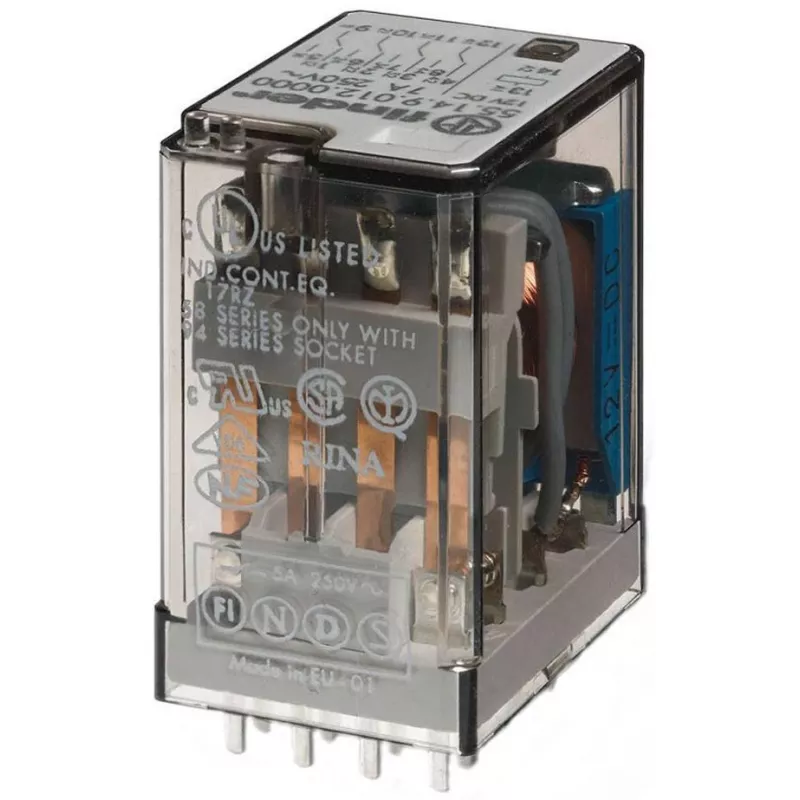

Finder 55.14.9.012.0000 teollisuusrele, 12 V DC kela, 4 vaihtokosketinta, 7 A

Industrial plug-in relay with 4 changeover contacts (4PDT) and a 12 V DC coil, delivering reliable switching for demanding automation and control applications. Its 140 Ω coil consumes just 1 W, while the silver-nickel contacts handle up to 7 A at 250 V AC, making it a robust choice for high-cycle operations.

Advantages

Flux-proof (RT I) design protects against dust and flux ingress, ensuring stable performance in industrial environments. The relay offers a mechanical life of 10 million operations and an electrical life of 100,000 cycles at rated load, reducing maintenance frequency. Plug-in mounting with standard pins simplifies installation and replacement.

Suitable for

• Industrial control panels and PLC interfaces
• Motor and valve control circuits
• Heating and lighting systems
• General-purpose switching up to 1750 VA

Key specifications

• Coil voltage: 12 V DC
• Contact configuration: 4 changeover (4PDT)
• Rated contact current: 7 A
• Rated contact voltage: 250 V AC
• Coil resistance: 140 Ω
• Coil power: 1 W
• Contact material: AgNi (silver nickel)
• Max switching power: 1750 VA
• Dielectric strength (coil-contact): 2500 V AC
• Dielectric strength (open contacts): 1000 V AC
• Ambient temperature range: -40 to +70 °C
• Protection degree: RT I (flux proof)
• Mounting type: plug-in
• Electrical life: 100,000 cycles
• Mechanical life: 10,000,000 cycles

Recommendations

For optimal performance, pair with a compatible DIN rail socket and ensure coil polarity is observed. Use within specified temperature limits to maintain contact reliability.
