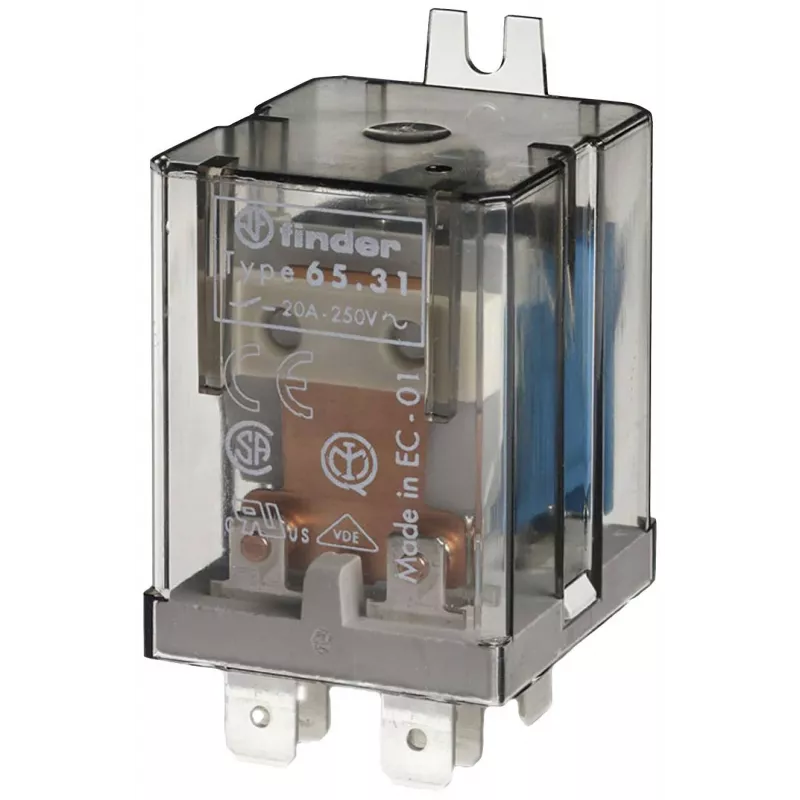

Finder 65.31.8.230.4309 pistoketehorele 230 V AC 30 A 1 NO

Control high-current loads in industrial control panels and automation systems with this Finder 65 series plug-in relay. It switches up to 30 A with a single normally open contact, driven by a 230 V AC coil. The relay plugs into a standard socket for quick installation and replacement.

Key specifications

• Coil voltage: 230 V AC
• Contact configuration: 1 NO (normally open)
• Rated switching current: 30 A
• Max switching voltage: 400 V AC
• Max switching power: 7500 VA (AC1)
• Contact material: AgCdO
• Mounting: plug-in (socket required)
• Terminal type: Faston 6.3 x 0.8 mm
• Operating temperature: -40 to +70 °C
• Electrical life: 100,000 cycles at rated load
• Mechanical life: 5,000,000 cycles
• Coil power: 2.5 VA
• Protection degree: RT I (flux proof)

Why choose it

Designed for demanding switching tasks, this relay offers high inrush current capability and reliable performance in a compact plug-in package. The AgCdO contacts handle heavy loads, while the flux-proof construction protects against dust and flux ingress.

Ideal use cases

• Motor control circuits
• Heating and lighting loads
• Power distribution panels
• Industrial automation systems

Good to know

Requires a compatible Finder socket (not included). Approvals include CE, VDE, UL, CSA, RINA, GOST, IMQ.
