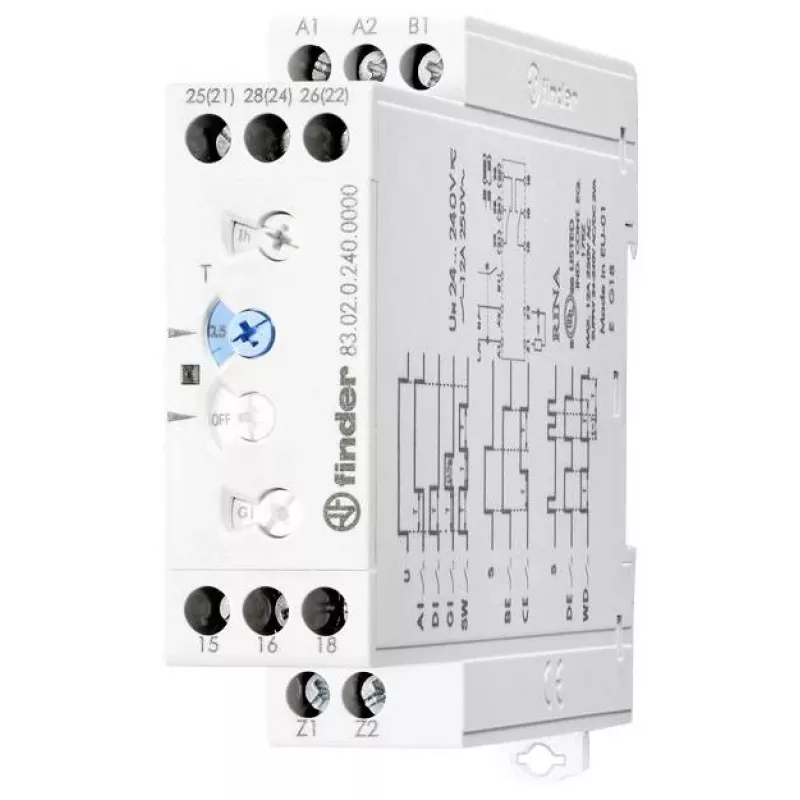

Finder 83.02.0.240.0003 monitoimiaikarele, 8 toimintoa, 24-240V AC/DC, 2 vaihtokosketinta

With a time range spanning from 0.05 seconds to 10 days across 7 selectable scales, the Finder 83.02.0.240.0003 multifunction time relay offers precise control for a wide variety of automation tasks. Its 8 built-in timing functions provide flexibility for delayed on, delayed off, interval, and pulse generation, making it suitable for industrial and building automation applications.

Overview

This DIN rail mountable relay operates on a universal supply voltage of 24 to 240 V AC/DC, simplifying inventory and installation. It features two changeover contacts (DPDT) rated for 16 A switching current at 250 V AC, capable of handling demanding loads. The AgCdO contact material ensures reliable switching performance over a long electrical life of 100,000 cycles at rated load.

What stands out

• 8 selectable timing functions for versatile control
• Wide time range: 0.05 s to 10 days, divided into 7 scales
• Universal supply voltage: 24-240 V AC/DC
• High switching capacity: 16 A, 250 V AC, 2 changeover contacts
• Compact DIN rail mounting, IP20 protection

Technical details

• Product type: Multifunction time relay
• Series: Finder 83
• Contact configuration: 2 changeover (CO) / DPDT
• Max. switching current: 16 A
• Rated switching voltage: 250 V AC
• Max. switching voltage: 400 V AC
• Contact material: AgCdO (Silver Cadmium Oxide)
• Mounting type: DIN rail (35 mm)
• Operating temperature range: -20 to +50 °C
• Power consumption: 3 VA (AC) / 1.5 W (DC)
• Electrical life: 100,000 cycles at rated load

Our verdict

A robust and versatile time relay for professionals who need precise timing control across a broad range of applications, backed by Finder's proven reliability.
