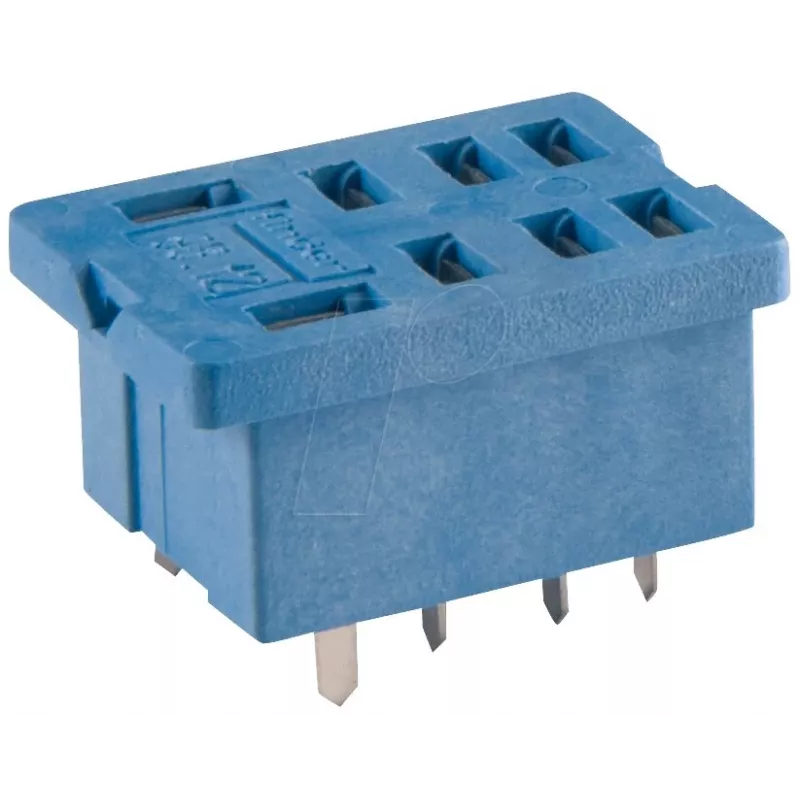

Finder 96.14 piirilevykanta 56.34-releelle, 14-napainen, 10A, 250V, musta

When integrating Finder 56.34 relays into printed circuit boards, a reliable connection is essential. The Finder 96.14 PCB mount socket provides a secure and durable interface, eliminating the need for hand-wiring and ensuring consistent electrical performance.

Who is it for

This socket is intended for electronics manufacturers, panel builders, and maintenance engineers who need to mount Finder 56.34 relays directly onto PCBs. It is suitable for applications requiring a 4-pole relay with a 14-pin connection, such as industrial controls, automation systems, and power distribution.

Main features

• Compatible with Finder 56.34 relay series
• 14 PCB pins for through-hole soldering
• Rated for 10 A current and 250 V AC voltage
• Dielectric strength of 2 kV AC for 1 minute
• Insulation resistance greater than 100 MΩ at 500 V DC
• Operating temperature range from -40°C to +70°C
• Housing made of polyamide (PA) in black
• Protection degree IP20

Specifications

• Mounting type: PCB
• Compatible relay series: Finder 56 Series
• Number of poles: 4
• Number of terminals: 14
• Terminal type: PCB pins
• Rated current: 10 A
• Rated voltage: 250 V AC
• Dielectric strength: 2 kV AC (1 min)
• Insulation resistance: >100 MΩ (at 500 V DC)
• Operating temperature: -40 to +70 °C
• Storage temperature: -40 to +85 °C
• Housing material: PA (polyamide)
• Protection degree: IP20
• Colour: Black

Tips

Ensure proper soldering of all 14 pins to achieve reliable electrical contact. The socket is designed for wave or manual soldering processes. For high-vibration environments, consider additional mechanical support for the relay.
