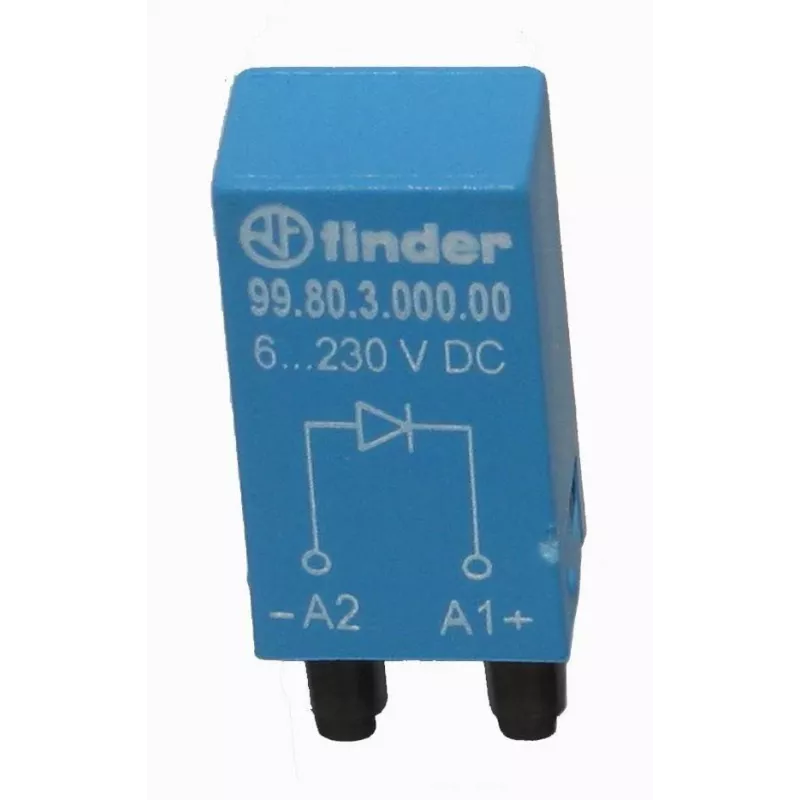

Finder 99.80.3.000.00 vapaakäyntidiodimoduuli 6-220 VDC

The Finder 99.80.3.000.00 is a high-quality freewheeling diode module designed for arc suppression and back-EMF protection in relay circuits. This pluggable module is compatible with a wide range of Finder relay series and sockets, ensuring reliable operation and extended contact life.

Advantages

Protects relay contacts from voltage spikes and inductive loads, reducing wear and increasing system reliability. Easy clip-in installation without tools. Compact design saves space in control panels.

Suitable for

• Industrial automation and control systems
• Building management and HVAC controls
• Protection of relay contacts in switching applications
• Suppression of inductive loads such as contactors, solenoids, and motors

Key specifications

• Product Type: Freewheeling Diode Module
• Operating Voltage: 6 - 220 V DC
• Diode Type: Freewheeling
• Number of Diodes: 1
• Mounting: Pluggable / Clip-in
• Polarity: Polarized
• Operating Temperature: -40 to +70 °C
• Storage Temperature: -40 to +85 °C
• Dielectric Strength: 1 kV AC
• Insulation Resistance: >100 MΩ
• Approvals: CE, RoHS
• Compatible with Finder relay series: 40, 44, 46, 55, 62, 65, 66, 67, 77, 88, 90, 92, 94, 95, 96, 97, 98, 99 and corresponding sockets

Recommendations

For optimal protection, use this diode module with inductive loads such as relays, solenoids, and contactors. Ensure correct polarity during installation. This module is an essential accessory for prolonging relay life in demanding applications.
