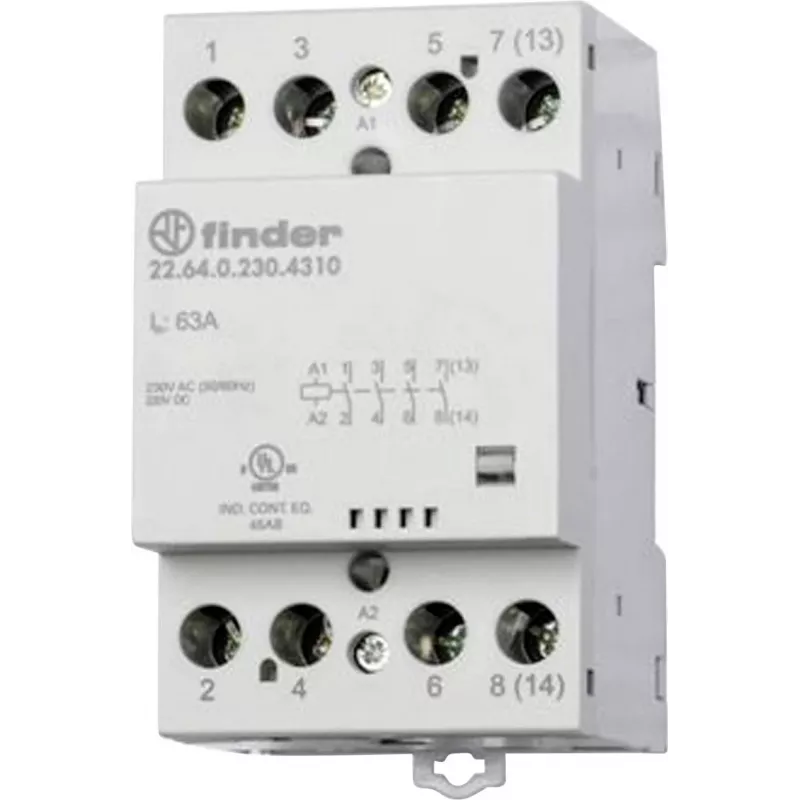

Finder asennuskontaktori 22.64.0.230.4610 (226402304610)

Controlling high-current lighting or heating loads with a silent, compact device can be a challenge in residential and commercial installations. The Finder 22 Series installation contactor solves this by providing a reliable switching solution that operates without the audible hum typical of traditional contactors.

Who is it for

Electricians and panel builders who need a DIN-rail mounted contactor for lighting circuits, heating systems, or other AC loads up to 25 A. Its silent operation makes it ideal for areas where noise is a concern, such as offices, hotels, and homes.

Main features

• 4 normally open contacts for switching multiple circuits simultaneously
• 25 A rated current (AC-1) for handling moderate power loads
• 230 V AC coil for direct control from standard mains voltage
• Silent operation thanks to its design, eliminating mechanical hum
• DIN rail mounting for quick installation in distribution boards
• Compact dimensions save space in enclosures

Specifications

• Number of poles: 4
• Contact configuration: 4 NO
• Rated current (AC-1): 25 A
• Rated voltage (AC-1): 400 V AC
• Coil voltage: 230 V AC
• Mounting: DIN rail (EN 60715)
• Electrical durability (AC-1): 100,000 cycles
• Mechanical durability: 1,000,000 cycles
• Operating temperature: -40 to +40 °C
• Protection degree: IP20
• Terminal type: Screw terminals
• Max terminal capacity: 6 mm² (single wire)
• Contact material: AgNi
• Max switching power (AC-1): 10 kVA

Tips

Ensure the coil voltage matches your control circuit. For frequent switching of high inrush loads, consider derating the contactor or using a larger model. Always follow local wiring regulations when installing.
