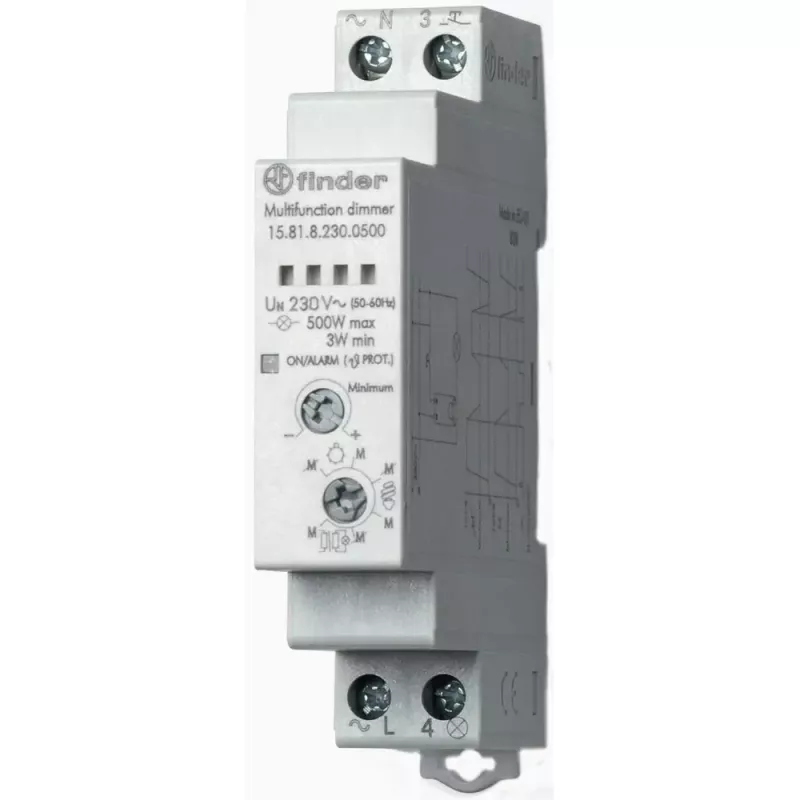

Finder FIN 15.81.8.230.0500 elektroninen himmennin 500W universaali

The Finder FIN 15.81.8.230.0500 is a high-quality electronic dimmer designed for universal dimming of incandescent, halogen, dimmable LED, and dimmable CFL lamps. With a maximum load of 500W for incandescent/halogen and 100W for dimmable LED/CFL, this flush-mounted dimmer operates on 230V AC and supports both leading-edge and trailing-edge dimming principles. It features soft start/stop, memory function, and protection against overload, short-circuit, and thermal issues. Ideal for residential and commercial lighting control, it requires no neutral wire and is controlled via a push-button momentary switch.

Advantages

Universal dimming compatibility with leading and trailing edge, soft start/stop for extended lamp life, memory function retains last dimming level, low standby power consumption below 0.5W, and robust protection features ensure safe operation.

Suitable for

• Dimmable LED and CFL lighting
• Incandescent and halogen lamps
• Flush-mounted in-wall installations
• Retrofit and new construction projects

Key specifications

• Input Voltage: 230 V AC, 50/60 Hz
• Max Load: 500 W (incandescent/halogen), 100 W (dimmable LED/CFL)
• Min Load: 3 W (dimmable LED/CFL)
• Dimming Principle: Universal (Leading Edge / Trailing Edge)
• Control: Push-button (momentary switch)
• Mounting: Flush-mounted (in-wall box)
• Wiring: 2-wire (no neutral required)
• Protection: Overload, short-circuit, thermal
• Soft Start/Stop: Yes
• Memory Function: Yes (last dimming level)
• Standby Power: < 0.5 W
• Operating Temperature: -10 to +50 °C
• Terminal Type: Screw terminals
• Housing Material: Thermoplastic

Recommendations

For optimal performance, use with dimmable LED lamps rated for trailing-edge dimming. Ensure proper ventilation in the mounting box to avoid overheating. This dimmer is not suitable for inductive loads like motors or transformers.
