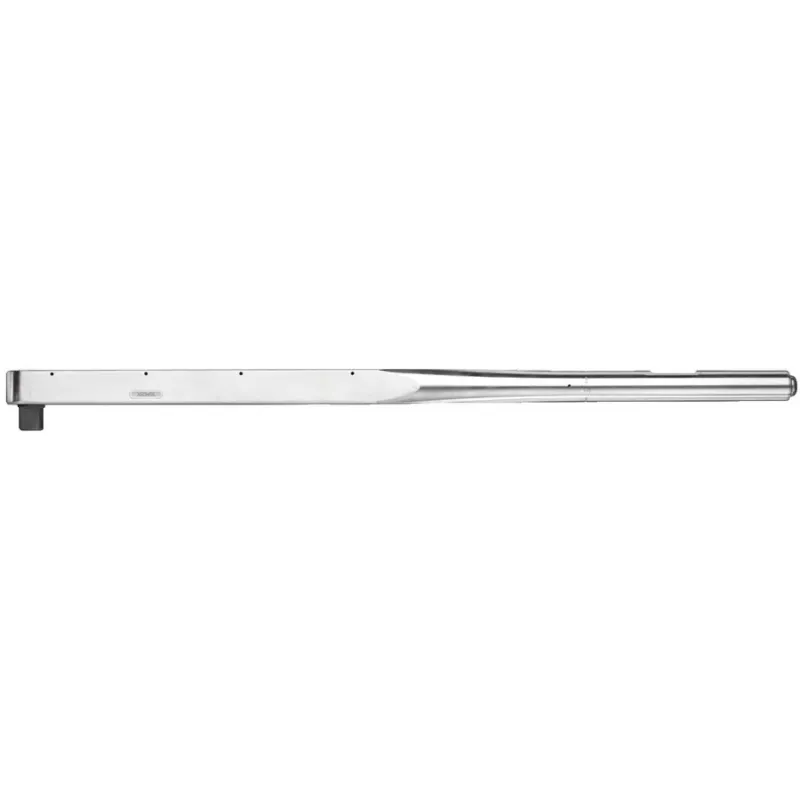

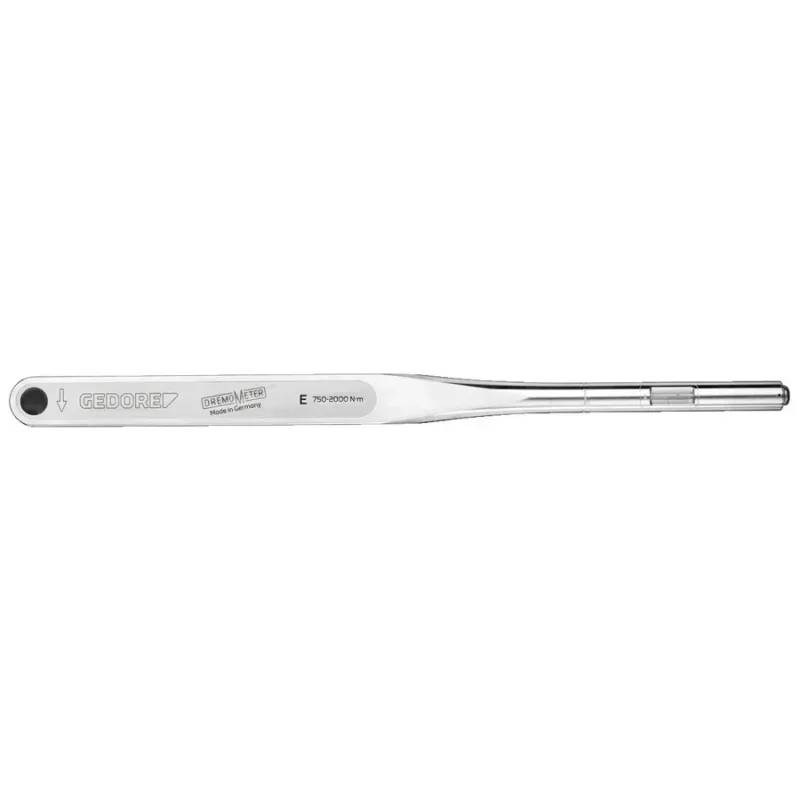

GEDORE DREMOMETER E 8564-01 momenttiavain 1 tuuma, 750-2000 Nm (7695250)

Delivering an impressive 800 Nm of controlled torque, this 1-inch drive torque wrench from GEDORE is engineered for heavy-duty fastening with precision. The 8564-01 combines a robust push-through square drive with a dual-scale micrometer adjustment, ensuring reliable tightening across a wide range of applications.

Overview

The GEDORE 8564-01 is a professional-grade torque wrench designed for demanding industrial and automotive tasks. It features a bi-directional operation with a tactile and audible signal upon reaching the set torque, preventing over-tightening and ensuring consistent results. The wrench is built to DIN EN ISO 6789-2:2017 standards and comes with an individual test certificate, verifying its accuracy of ±3% of the set scale value.

What stands out

• Wide torque range from 200 to 800 Nm (150 to 600 lbf·ft) for versatile heavy-duty use.
• Dual scale (Nm and lbf·ft) with quick adjustment via a push-through lever and micrometer scale.
• Ergonomic, non-slip handle provides a secure grip even with oily hands.
• Secure locking mechanism prevents accidental changes to the set torque value.
• High-quality steel construction ensures durability and long service life.

Technical details

• Drive size: 1 inch (25.4 mm) square drive, push-through type.
• Torque range: 200 - 800 Nm (150 - 600 lbf·ft).
• Accuracy: ±3% tolerance of the set scale value.
• Standard compliance: DIN EN ISO 6789-2:2017.
• Overall length: 1200 mm.
• Trigger mechanism: tactile and audible signal.
• Operating direction: bi-directional (controlled tightening).
• Adjustment type: quick adjustment via push-through lever, micrometer scale.
• Drive type: push-through square drive.
• Handle type: ergonomic, non-slip.
• Material: high-quality steel components.
• Certification: individual test certificate included.
• Application: controlled screw tightening.
• Locking mechanism: secure locking of set torque value.

Our verdict

A top-tier torque wrench for professionals who demand accuracy and durability in heavy-duty applications. Its wide range, precise adjustment, and reliable signal make it an indispensable tool for critical fastening jobs.
