Hylsyavainsarja Gedore R49003046 1/4" metrinen

Socket set Gedore R49003046 1/4 inch Metric is a compact hand tool kit designed for precision screw and bolt work. The set contains a range of 1/4" drive components and metric sockets manufactured from chrome-vanadium steel with a matt satin chrome finish. Tools are secured in a red plastic case with metal hinges and a fastener for organised storage and transport.

Advantages

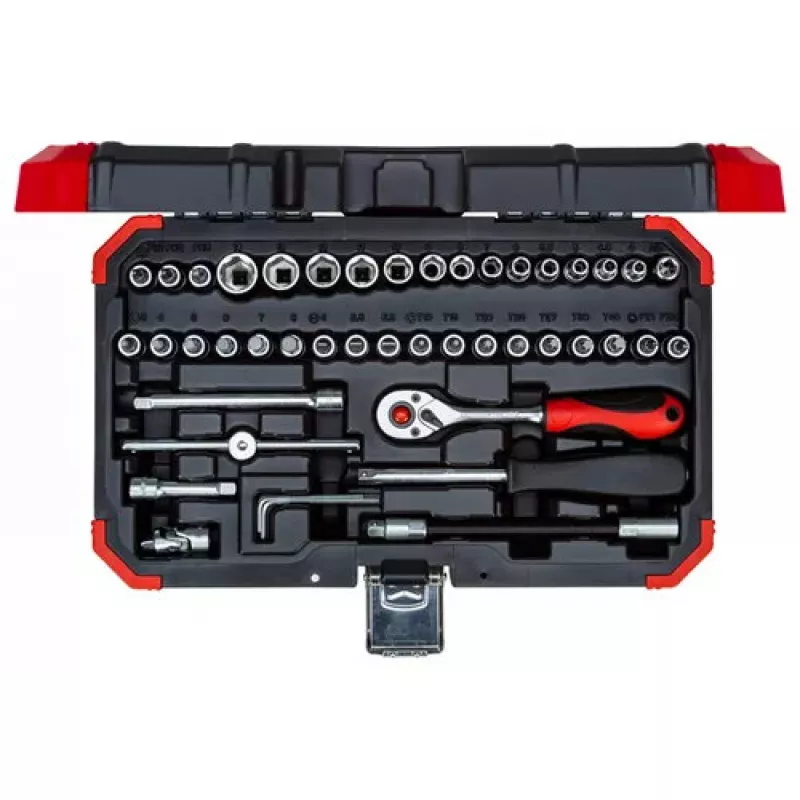

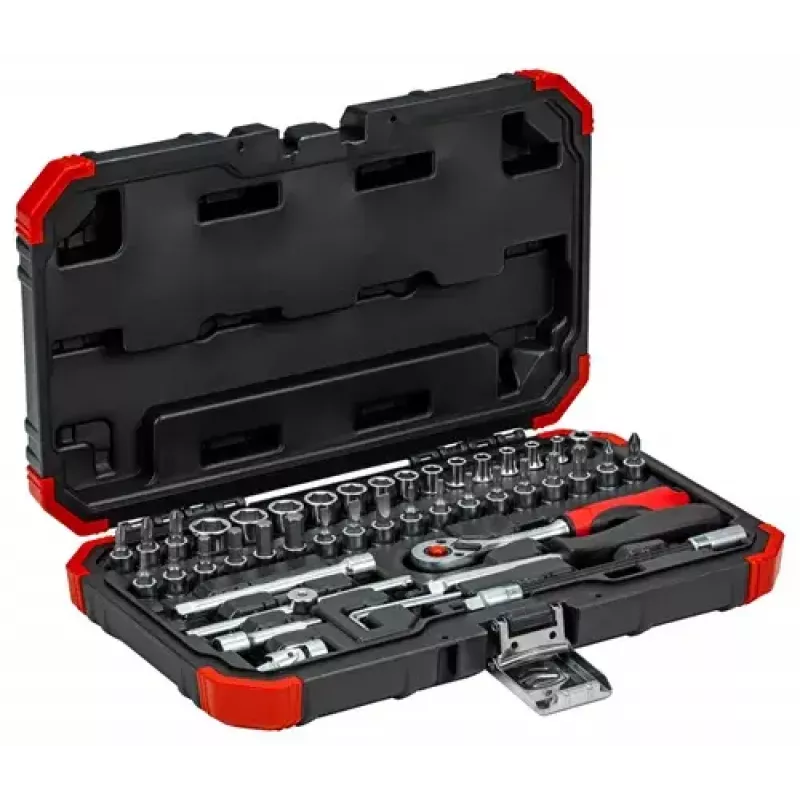

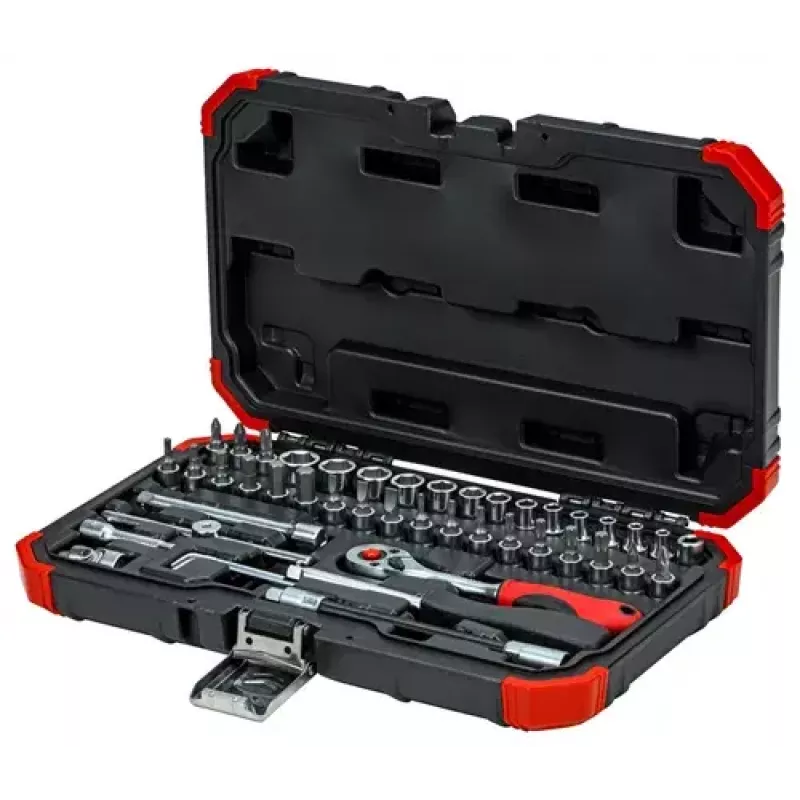

The kit includes a reversible 2-component 1/4" ratchet with a fine-toothed mechanism and push-button release, a variety of screwdriver-bit sockets with pressed-in phosphated pins, short hex metric sockets, extensions including a flexible extension, a sliding T-handle, universal joint and bit adaptor. Components conform to DIN/ISO standards (DIN 3120, ISO 1174, DIN 3124/ISO 2725, DIN 3122/ISO 3315, DIN 3123, DIN ISO 2936) and are suitable for reliable hand-operated screw work.

Suitable for

• Maintenance and repair of machinery and equipment
• Automotive service and small engine repair
• Precision assembly and disassembly tasks
• DIY projects requiring metric sockets and 1/4" drive tools

Key specifications

• Drive size: 1/4" (6.3 mm) – coupler and square drive per DIN 3120 / ISO 1174
• Ratchet: 2C reversible 1/4" with lever for clockwise/anticlockwise, push-button release, fine-toothed, oval head, 2-component handle
• Sockets: 1/4" hex metric, short, according to DIN 3124 / ISO 2725
• Screwdriver bit sockets: 1/4" for hex, slotted, PH, PZ, TX with pressed-in phosphated pins
• Extensions: fixed extension and flexible extension 1/4"
• Additional tools: square plug-in handle 1/4", sliding T-handle (DIN 3122 / ISO 3315), universal joint (DIN 3123), bit adaptor 1/4"
• Material: chrome-vanadium steel, matt satin chrome-plated

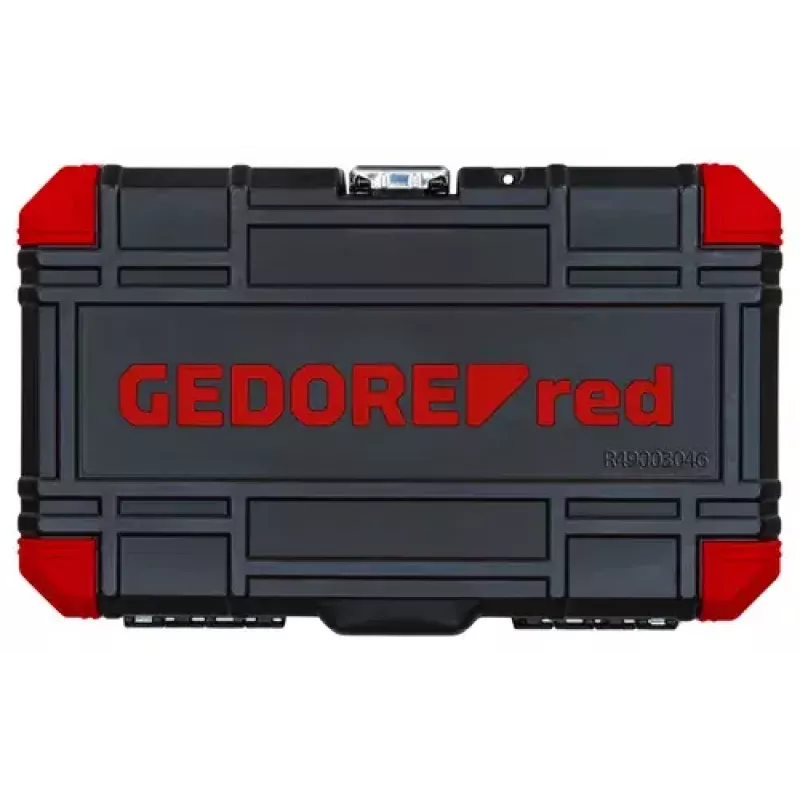

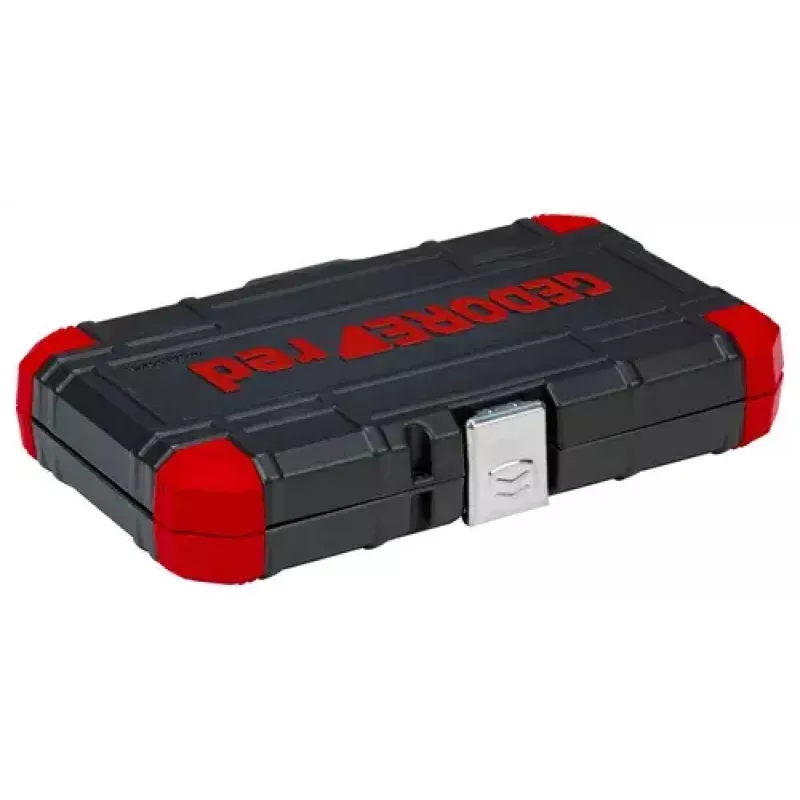

• Case: plastic, GEDORE red with clamp-secured tools and metal hinges/fastener
• Manufacturer: Gedore, MPN 3300052, EAN 4060833000529

How to use

Select the appropriate 1/4" socket or bit socket for the fastener, mount it onto the ratchet, extension or adaptor, and engage the square drive until the ball lock or retention groove secures the connection. Use the ratchet lever to set the desired turning direction and operate with controlled force for manual screw or bolt tightening and loosening. For recessed or angled fasteners, use the flexible extension or universal joint; use the sliding T-handle or plug-in handle when additional leverage or a straight push/pull motion is required.

Recommendations

For longest service life, keep tools clean and dry, apply appropriate torque within hand-tool limits, and store components in the provided case. Replace any worn or damaged bits and avoid using the ratchet or sockets with impact tools.
