GEMBIRD pyörivä täysin liikkuva TV-seinäteline, 40"–80"

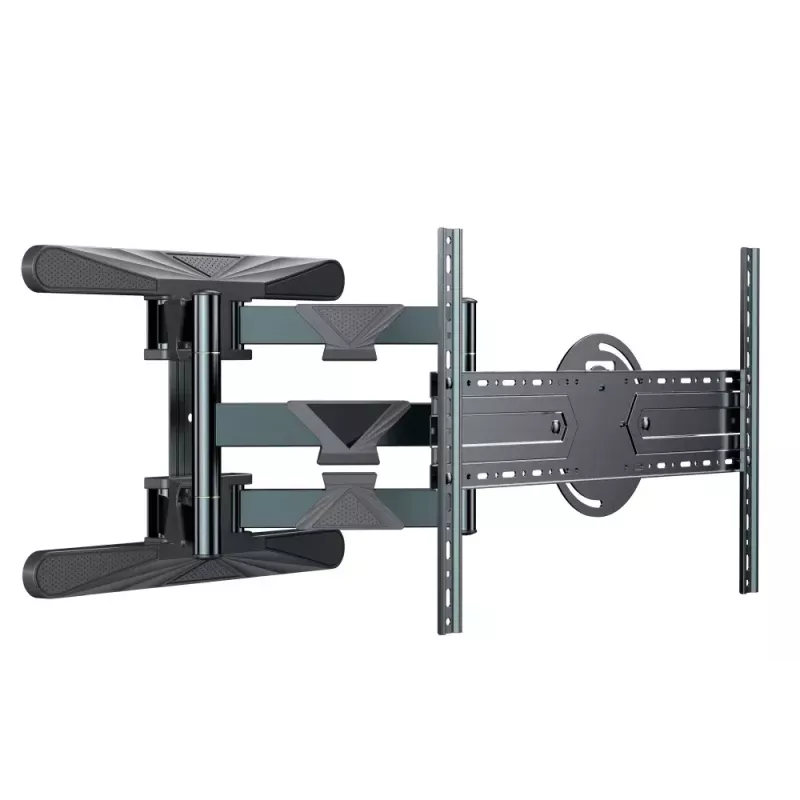

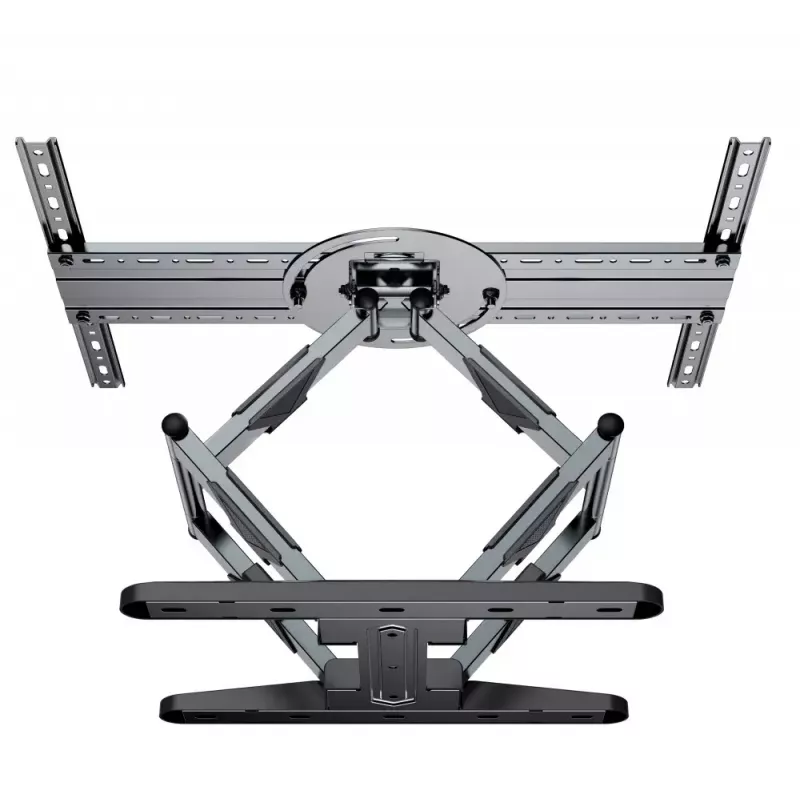

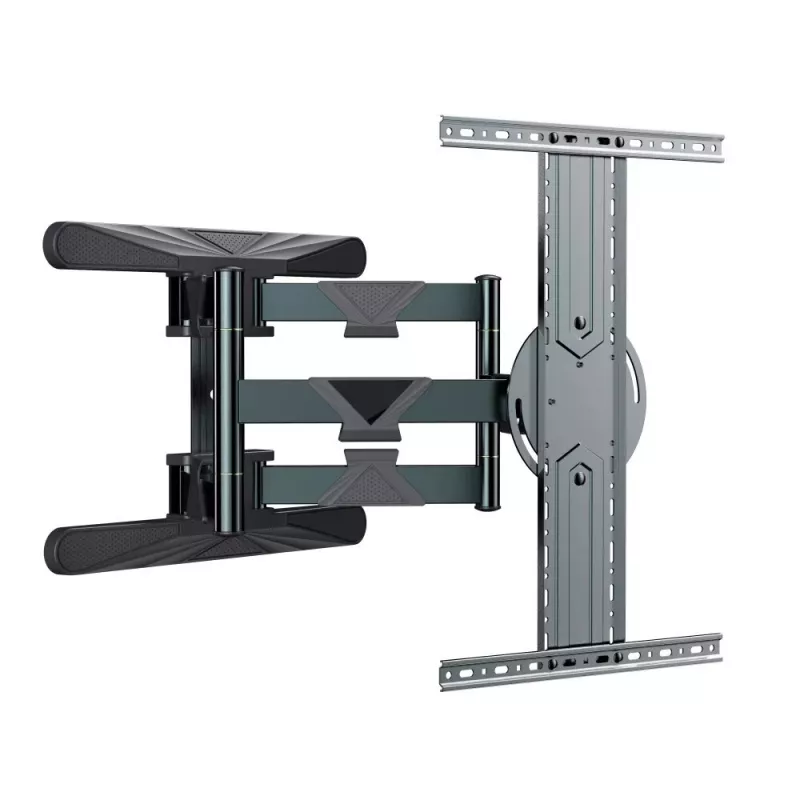

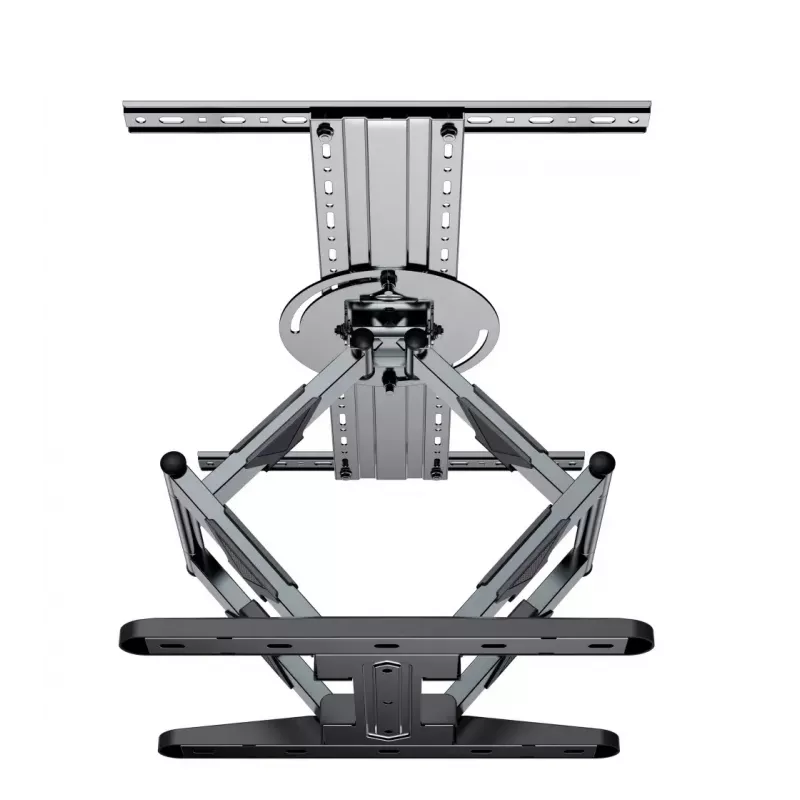

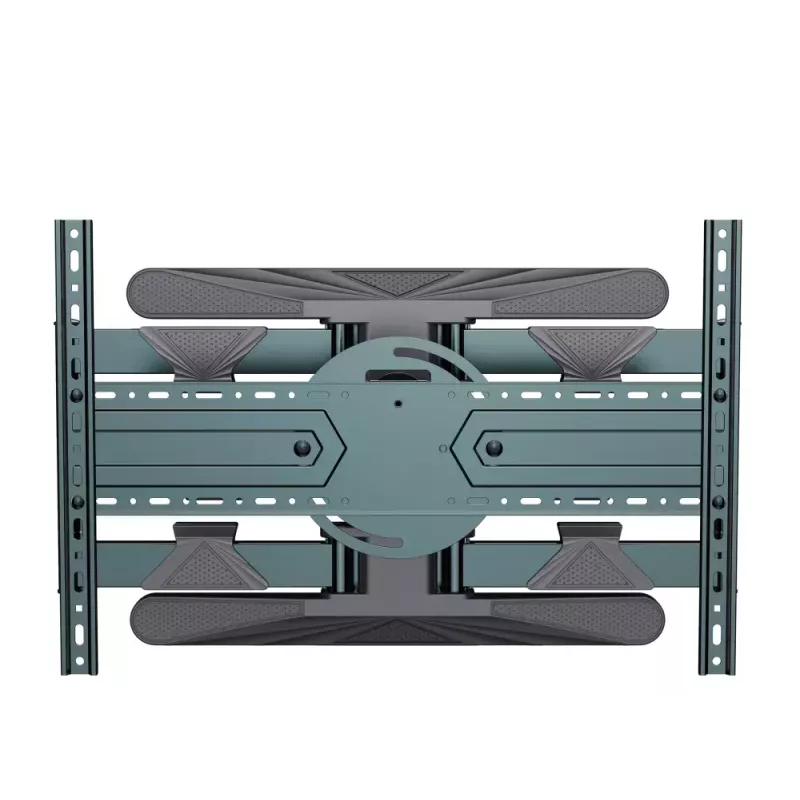

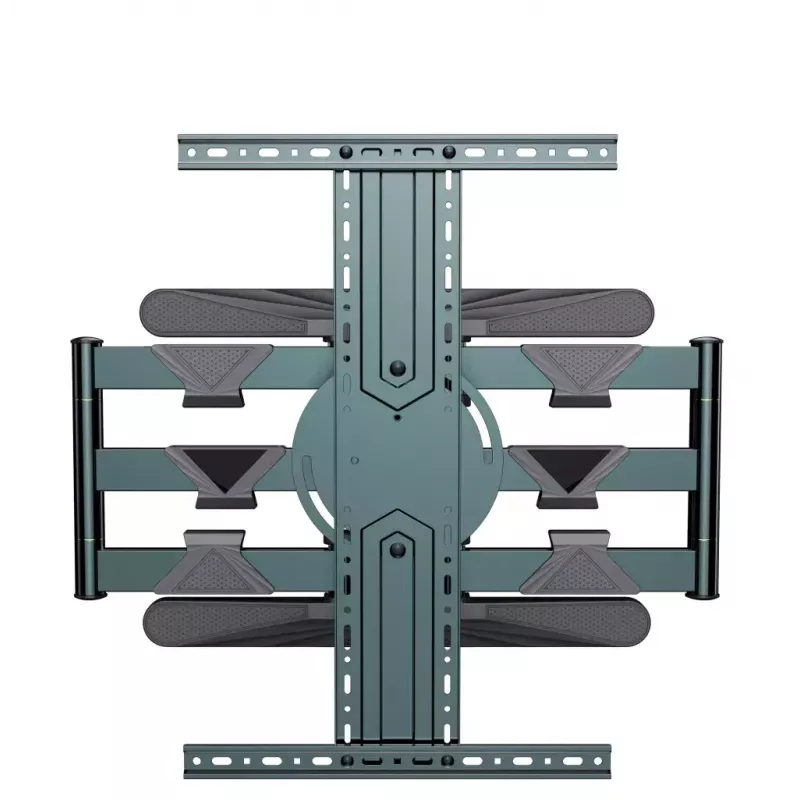

The Gembird WM-80STR-01 is a steel rotating full-motion TV wall mount for screens from 40" to 80". It supports a maximum load of 50 kg and accommodates VESA patterns from 100 x 100 mm up to 600 x 400 mm. The bracket allows tilt adjustment from -3° to 7° and swivel from -50° to 50°, with an installation distance from the wall adjustable between 6.1 cm and 50.6 cm, enabling flexible positioning for different room layouts.

Advantages

The steel construction provides stable support for large screens while the full-motion mechanism enables precise positioning. A wide VESA compatibility and a high 50 kg load capacity ensure compatibility with most 40"–80" TVs. The adjustable extension from the wall and combined tilt and swivel ranges offer versatile viewing-angle adjustments.

Suitable for

• Mounting 40"–80" LED, OLED or LCD TVs
• Living rooms, bedrooms and home theatres
• Rooms where adjustable viewing angle or room-wide visibility is required
• Setups requiring VESA support up to 600 x 400 mm

Key specifications

• Brand: GEMBIRD
• Model: WM-80STR-01
• Material: Steel
• Maximum screen size: 80"
• Maximum weight capacity: 50 kg
• VESA compatibility: 100 x 100 mm up to 600 x 400 mm

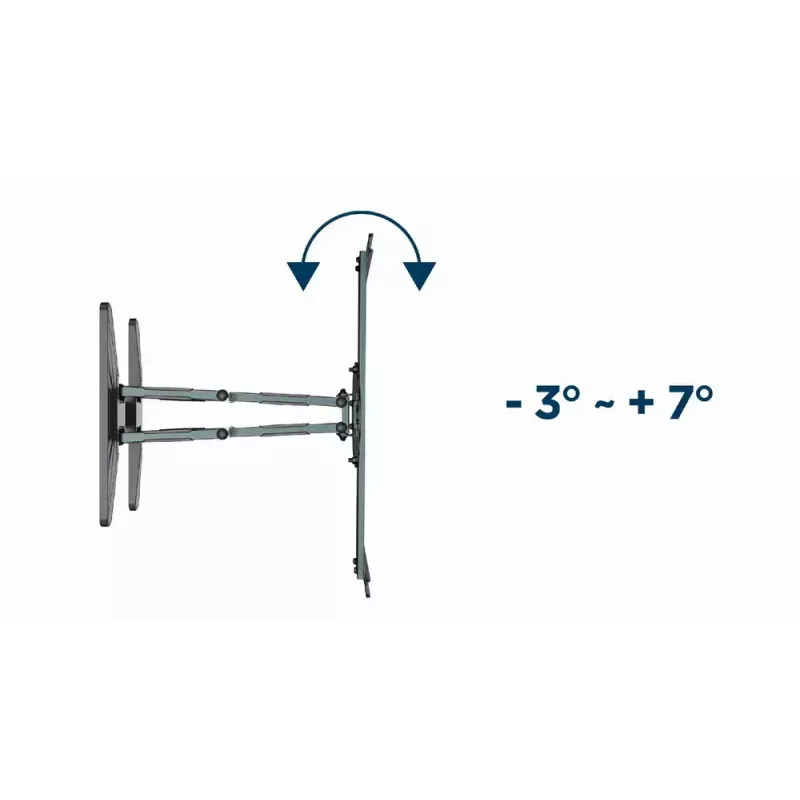

• Tilt range: -3° to 7°

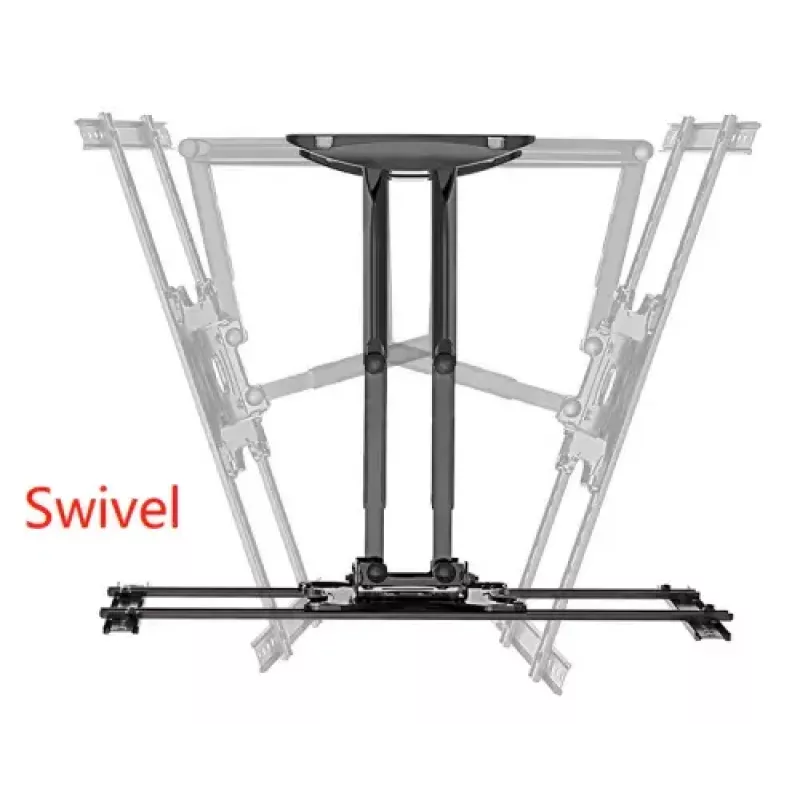

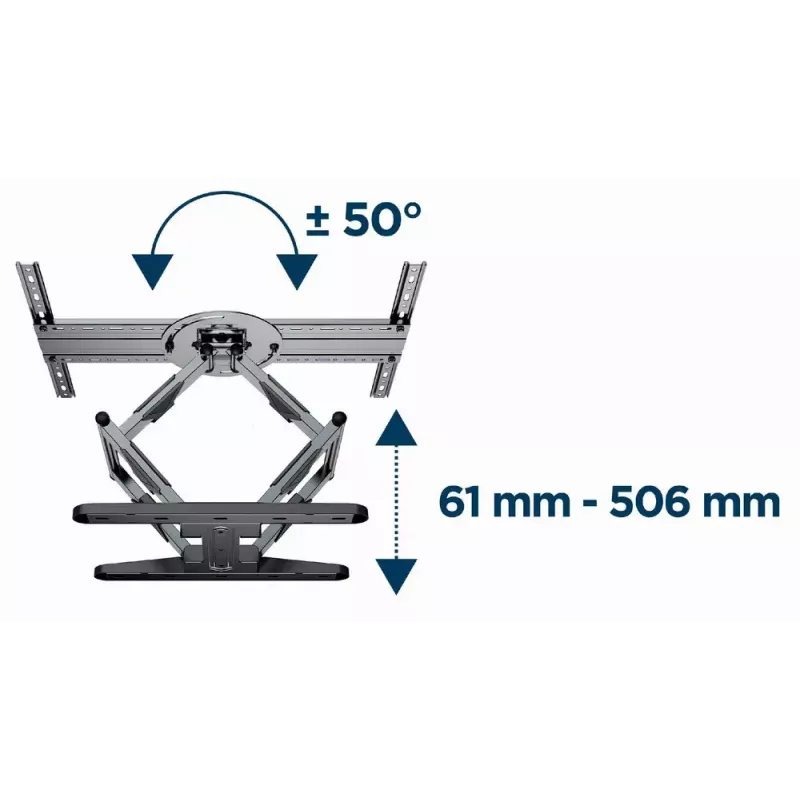

• Swivel range: -50° to 50°

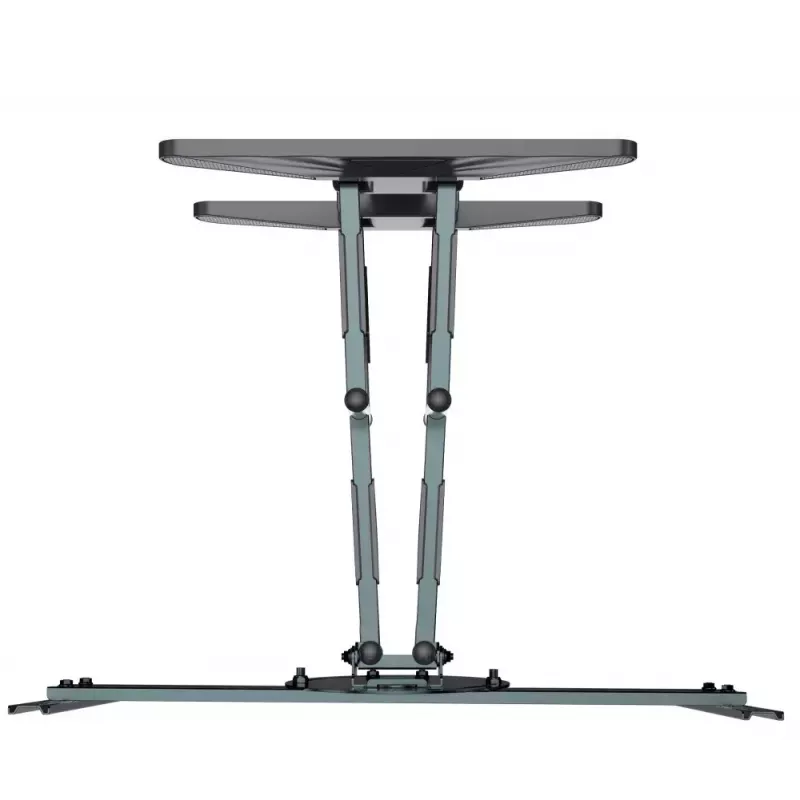

• Distance from wall: 6.1 cm – 50.6 cm
• Number of displays supported: 1

How to use

Attach the mount to a suitable load-bearing wall following the included instructions and using appropriate anchors for your wall type. Fix the TV to the mount using screws that match the TV's VESA pattern. Adjust the tilt and swivel to obtain the desired viewing angle, and pull the screen outward or push it closer to set the optimal distance from the wall. Verify that all fasteners are tightened and that the TV is secure before finishing installation.

Recommendations

Use suitable wall anchors for the wall material and do not exceed the 50 kg maximum load. Periodically check mount fixings and cable routing; if unsure about installation on a particular wall type, consult a qualified installer.
