GETFORT Cat.5e F/UTP PVC-verkkokaapeli 305 m

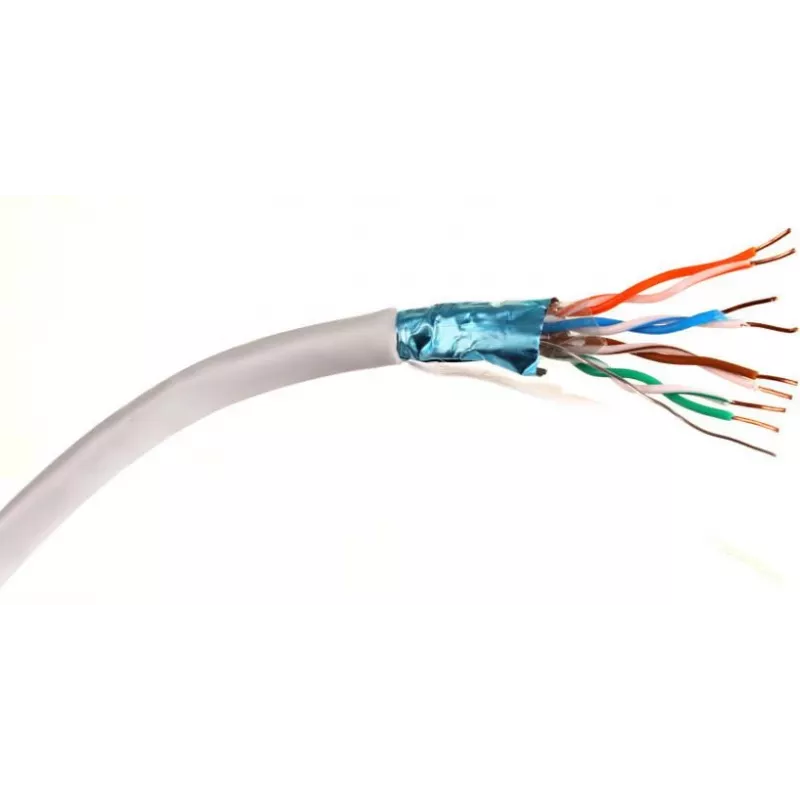

The GETFORT GF-5FTP-E-PVC-305 is a high-performance Cat.5e F/UTP network cable designed for reliable Gigabit Ethernet connections in indoor environments. With a length of 305 meters (1000 feet), it is ideal for structured cabling installations. The cable features 4 pairs of 24 AWG pure copper conductors, foiled shielding (F/UTP) to reduce electromagnetic interference, and a durable PVC jacket. It complies with TIA/EIA-568-B.2 and ISO/IEC 11801 standards, ensuring compatibility and performance.

Advantages

This cable offers excellent signal integrity and data transmission speeds up to 1 Gbps with a bandwidth of 100 MHz. The F/UTP shielding provides protection against crosstalk and external noise, making it suitable for office and data center environments. The PVC jacket is flexible and easy to install, while the pure copper conductors ensure low resistance and long-term reliability.

Suitable for

• Structured cabling in commercial buildings
• Data center patch panels and switches
• Network infrastructure for VoIP, video streaming, and data transfer
• Indoor horizontal and backbone cabling

Key specifications

• Cable Type: Twisted Pair Network Cable
• Category: Cat.5e
• Shielding: F/UTP (Foiled/Unshielded Twisted Pair)
• Jacket Material: PVC
• Length: 305 m (1000 ft)
• Conductor: Pure Copper, 24 AWG
• Number of Pairs: 4
• Number of Conductors: 8
• Max Data Rate: 1 Gbps
• Max Bandwidth: 100 MHz
• Impedance: 100 Ohm
• Outer Diameter: Approx. 5.0 - 5.5 mm
• Color: Grey
• Operating Temperature: -20°C to +60°C
• Standards: TIA/EIA-568-B.2, ISO/IEC 11801
• Packaging: Reel-in-box / Pull-box

Recommendations

For optimal performance, use with Cat.5e or higher rated connectors and patch panels. Ensure proper grounding of the foil shield for maximum EMI protection. Suitable for indoor use only; avoid exposure to moisture or extreme temperatures.
