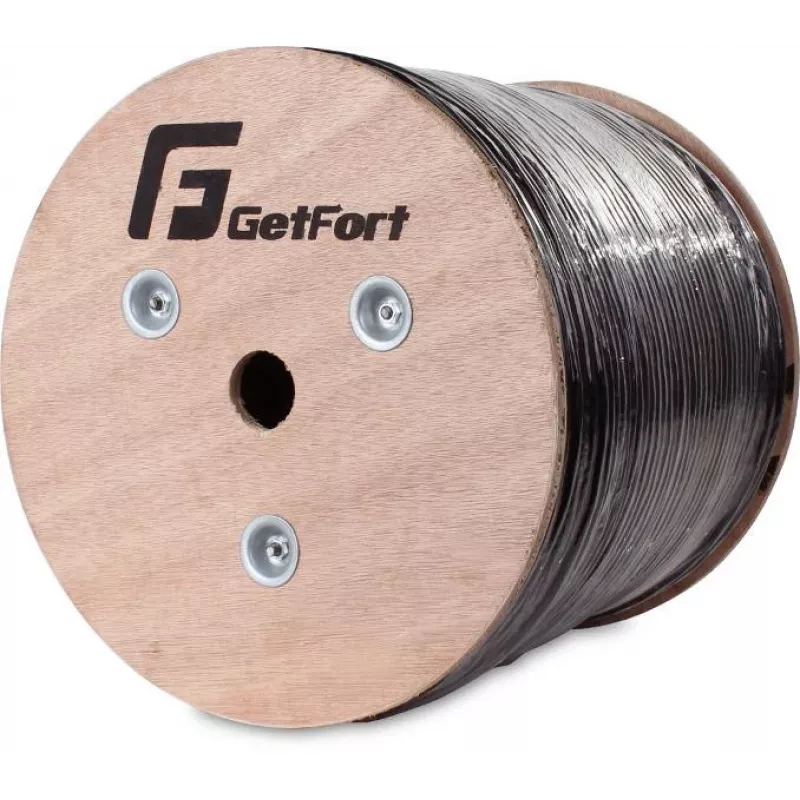

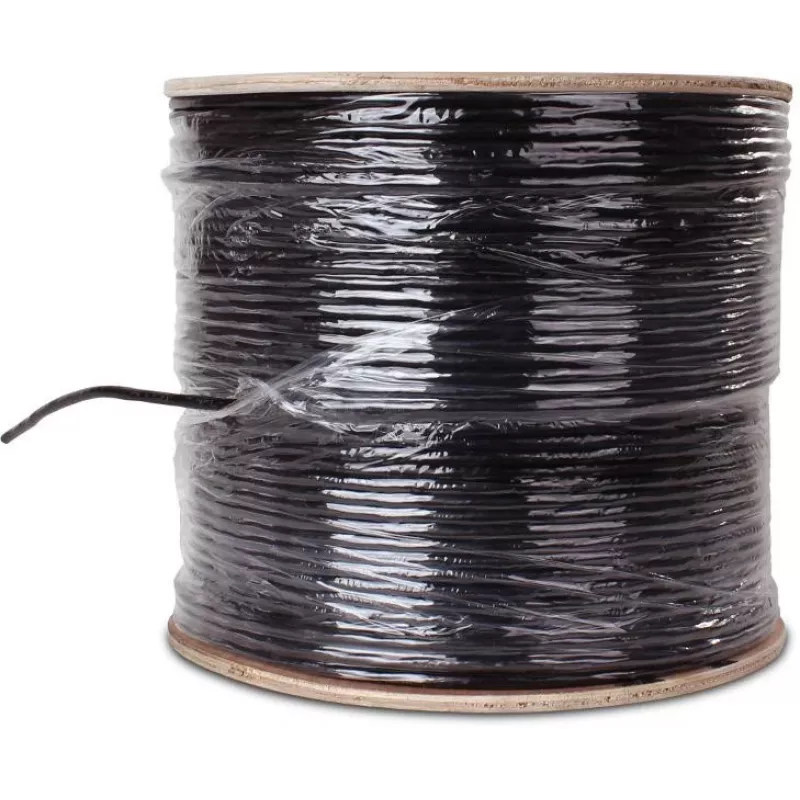

GETFORT Cat.6 F/UTP UV-geelitäytetty ulkokaapeli 500m musta

The GETFORT GF-6FTP-E-UVG-500 is a high-performance Cat.6 F/UTP outdoor cable designed for reliable data transmission in harsh environments. With a length of 500 meters, solid bare copper conductors, and a gel-filled PE jacket, this cable ensures excellent protection against moisture and UV radiation, making it ideal for direct burial and outdoor installations.

Advantages

This cable offers superior signal integrity and reduced crosstalk thanks to its F/UTP shielding and 23 AWG solid conductors. The gel-filled construction prevents water ingress, while the UV-resistant PE jacket withstands prolonged sun exposure. It supports Gigabit Ethernet (10/100/1000BASE-T) with a bandwidth of 250 MHz, ensuring high-speed data transfer for demanding applications.

Suitable for

• Outdoor network installations
• Direct burial applications
• Industrial environments requiring robust cabling
• Long-distance Ethernet runs up to 100 meters per segment

Key specifications

• Cable Standard: Cat.6 (Category 6)

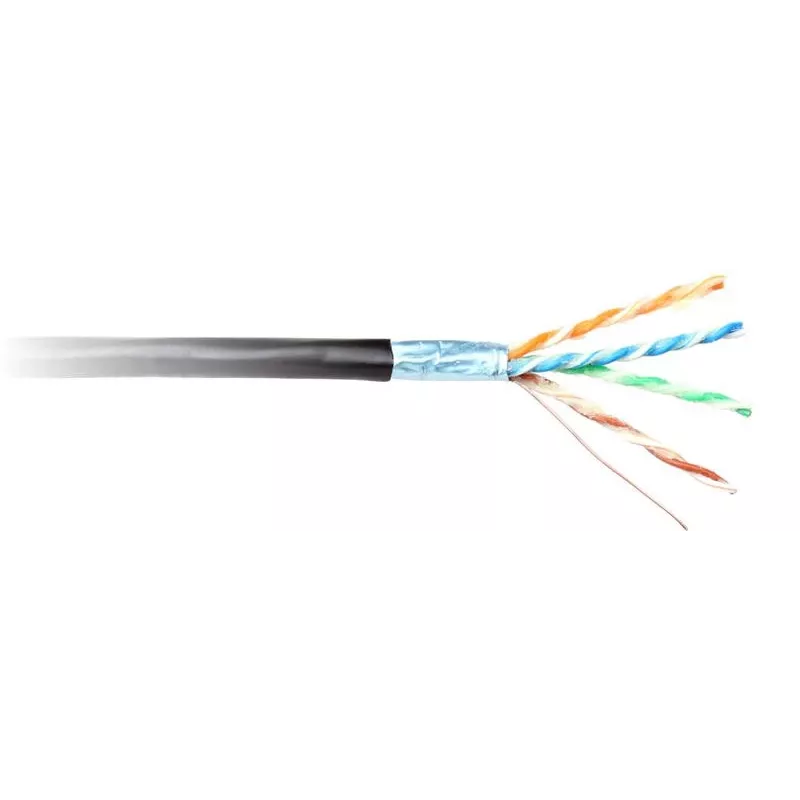

• Shielding Type: F/UTP (Foiled/Unshielded Twisted Pair)
• Conductor: Solid Bare Copper, 23 AWG
• Number of Pairs: 4
• Cable Length: 500 m
• Outer Jacket: PE (Polyethylene), Black
• Environmental Features: UV Resistant, Gel-Filled
• Maximum Bandwidth: 250 MHz
• Supported Data Rate: 10/100/1000BASE-T
• Insulation: HDPE
• Drain Wire: Yes
• Packaging: Wooden Drum
• Operating Temperature: -20°C to +60°C
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Nominal Outer Diameter: 7.2 mm

Recommendations

For optimal performance, use with appropriate RJ45 connectors rated for outdoor use. Ensure proper grounding of the shield to maintain signal integrity. This cable is not suitable for indoor plenum spaces without additional conduit.
