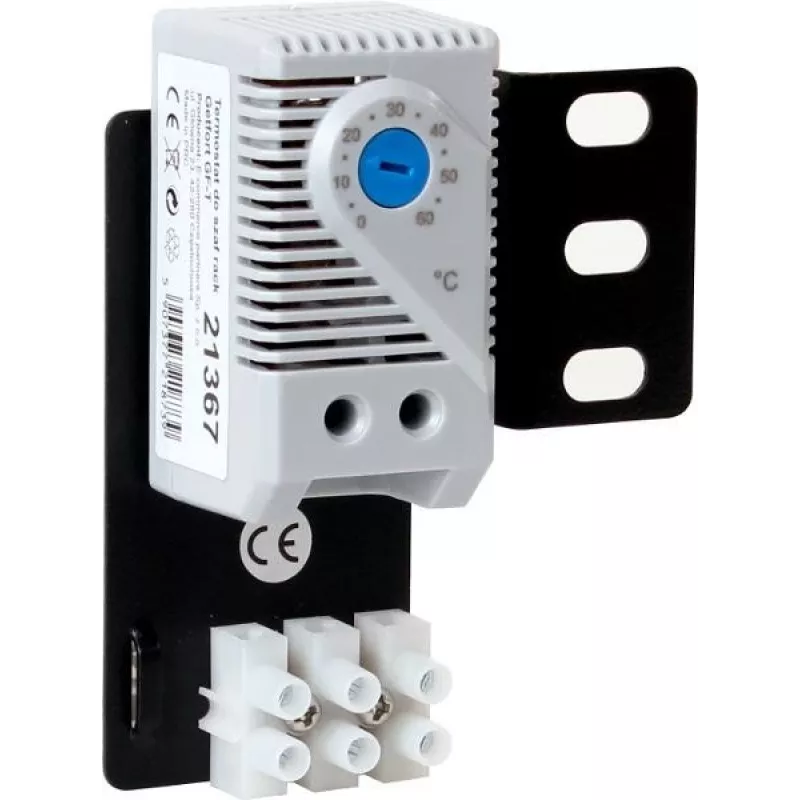

GETFORT GF-T rack-tuuletintermostaatti, 230V AC, 0-60°C, DIN-kisko, RAL 7035

The GETFORT GF-T is a professional thermostat designed for controlling fans in server racks and enclosures. It ensures optimal temperature regulation to protect sensitive equipment from overheating. With a robust bimetal sensor and DIN rail mounting, it offers reliable performance in industrial environments.

Advantages

Precise temperature control with adjustable range from 0°C to +60°C. Change-over contact (NO/NC) allows flexible wiring for fan activation or alarm signaling. Compact design saves space in crowded cabinets. Long lifespan of over 100,000 cycles ensures durability.

Suitable for

• Server racks and network cabinets
• Industrial control panels
• Telecommunication enclosures
• Any application requiring temperature-based fan control

Key specifications

• Temperature Setting Range: 0°C to +60°C
• Operating Voltage: 230V AC
• Switching Capacity (Resistive): 10A @ 230V AC
• Contact Type: Change-over (NO/NC)
• Hysteresis: 7K (±4K)
• Sensor Element: Thermostatic bimetal
• Mounting: DIN rail (35mm)
• Connection: Screw terminals (max 2.5mm²)
• Protection Class: IP20
• Housing Material: UL94 V-0 Plastic
• Color: RAL 7035 (Light Grey)
• Operating Temperature: -20°C to +80°C
• Storage Temperature: -45°C to +80°C
• Humidity: Max. 90% RH (non-condensing)
• Certifications: CE, RoHS

Recommendations

For optimal performance, install the thermostat on a DIN rail inside the cabinet, away from direct airflow. Use appropriate cable glands for wiring. Ensure the set temperature is above ambient to avoid continuous fan operation.
