Giada DN24 Raspberry Pi kompakti signage-soitin - CM4 Lite

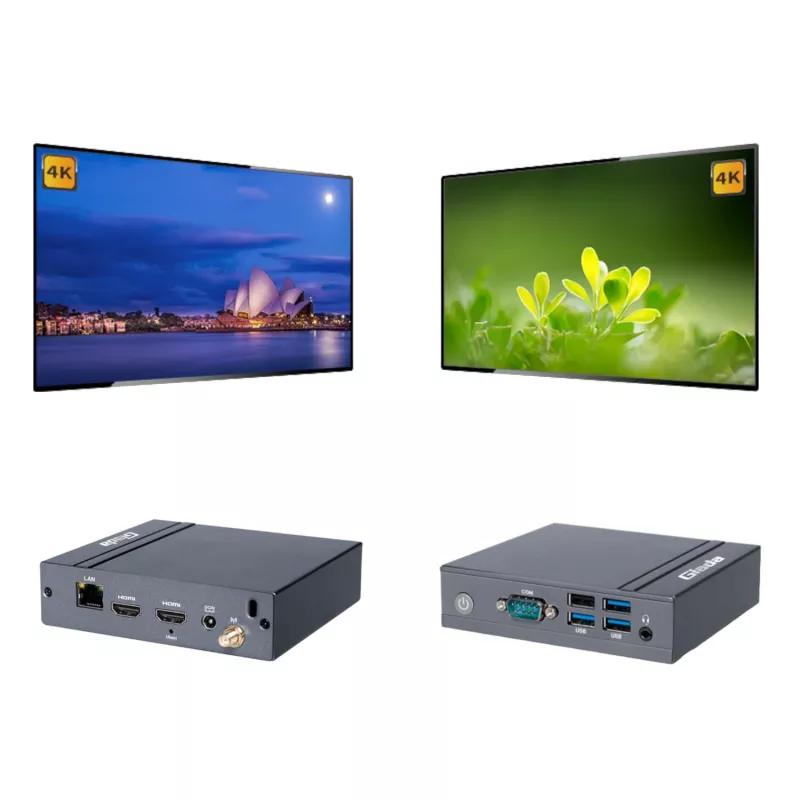

Digital signage deployments often struggle with bulky, noisy players that overheat and fail in tight spaces. The Giada DN24 with Raspberry Pi CM4 Lite eliminates that compromise, delivering quad-core processing and dual 4K output in a fanless metal chassis barely larger than a deck of cards.

Who is it for

Built for system integrators, AV professionals, and businesses rolling out menu boards, information kiosks, or video walls. It thrives in retail, hospitality, corporate, and education environments where space is tight and uptime is critical. Developers will appreciate the Raspberry Pi ecosystem and GPIO header for custom integrations.

Main features

• Powered by Raspberry Pi Compute Module 4 Lite with Broadcom BCM2711 quad-core Cortex-A72 at 1.5GHz
• 2GB LPDDR4-3200 RAM for smooth multitasking and responsive UI
• MicroSD card slot for OS and content storage
• HDMI 2.0 output supporting up to 4K@60Hz for crisp visuals
• Gigabit Ethernet plus Wi-Fi 5 (802.11ac) and Bluetooth 5.0 for flexible connectivity

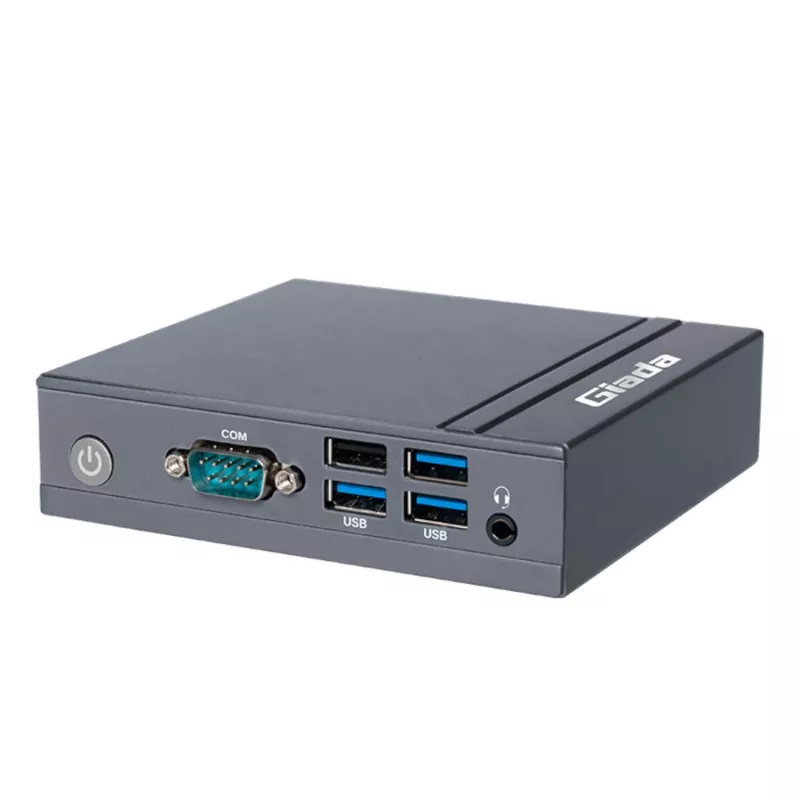

• Dual USB 2.0, RS232, RS485, and 4-pin GPIO for peripheral and industrial integration
• Fanless, all-metal enclosure for silent operation and durability
• VESA mount compatibility for discreet installation behind displays
• Watchdog timer for automatic recovery from system hangs

Specifications

• SoC: Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit @ 1.5GHz
• Compute Module: Raspberry Pi CM4 Lite
• RAM: 2GB LPDDR4-3200
• Storage: MicroSD card slot

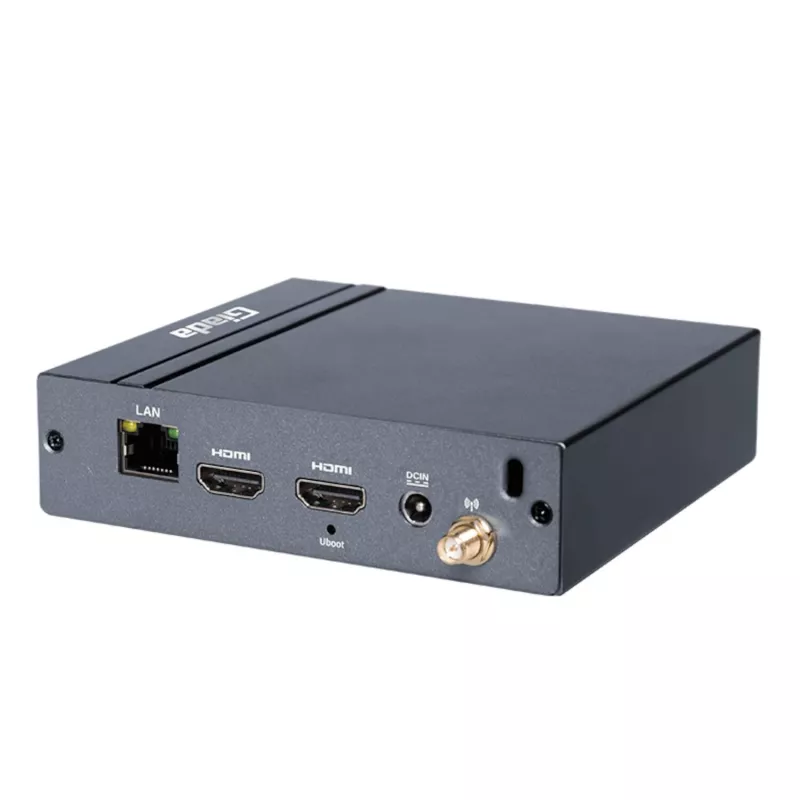

• Video output: 1x HDMI 2.0 (up to 4K@60Hz)
• Ethernet: 1x Gigabit Ethernet (RJ45)
• Wireless: Wi-Fi 5 (802.11ac) and Bluetooth 5.0
• USB: 2x USB 2.0 Type-A
• Serial: 1x RS232 (DB9), 1x RS485 (Phoenix connector)
• GPIO: 1x 4-pin header
• Power input: DC 12V
• OS support: Raspberry Pi OS, Ubuntu, other Linux distributions
• Cooling: Fanless design
• Chassis: Metal enclosure
• Mounting: VESA mount compatible
• Operating temperature: 0°C to 50°C
• Audio: HDMI audio
• Security: Watchdog timer

Tips

Pair with a high-endurance microSD card for 24/7 operation. Use the GPIO header to trigger external devices or integrate sensors for interactive signage. Mount behind the display with the VESA bracket to keep the installation clean and tamper-resistant.
