Giada VM27 minitietokone, N6210, 4GB DDR4 On Board, 64GB eMMC On Board

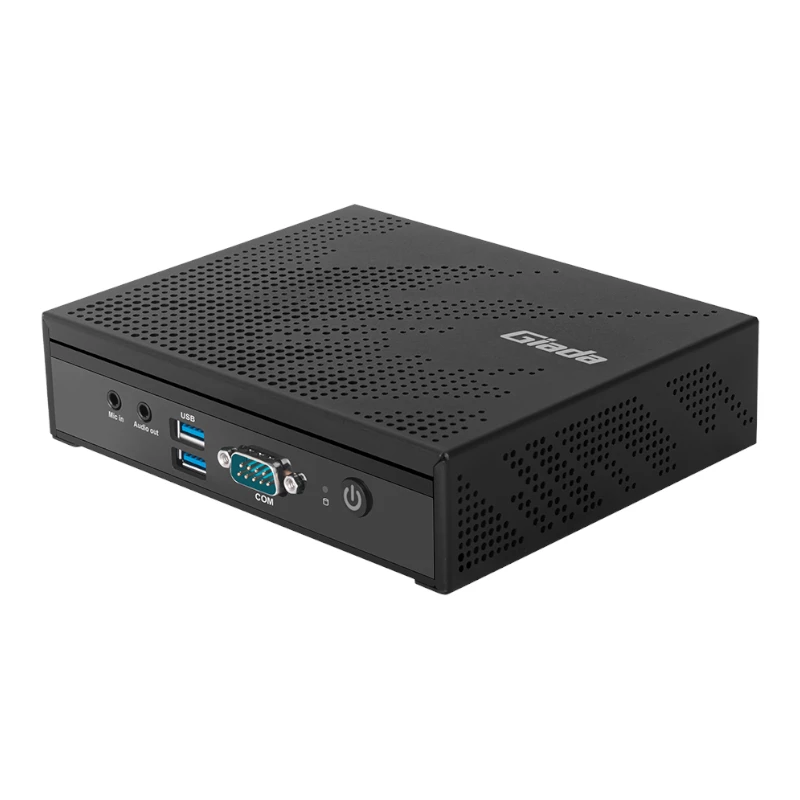

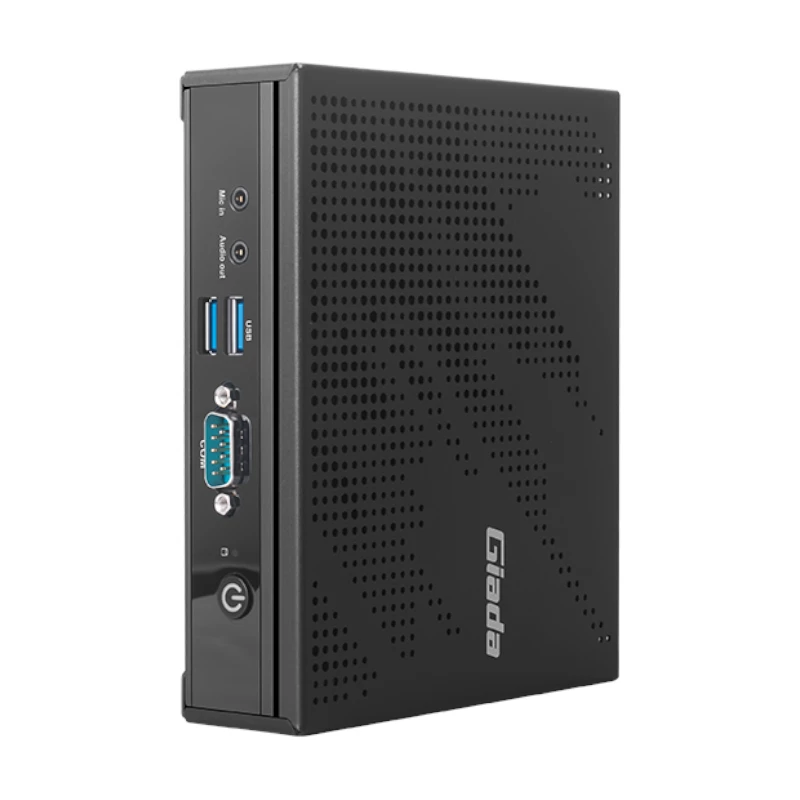

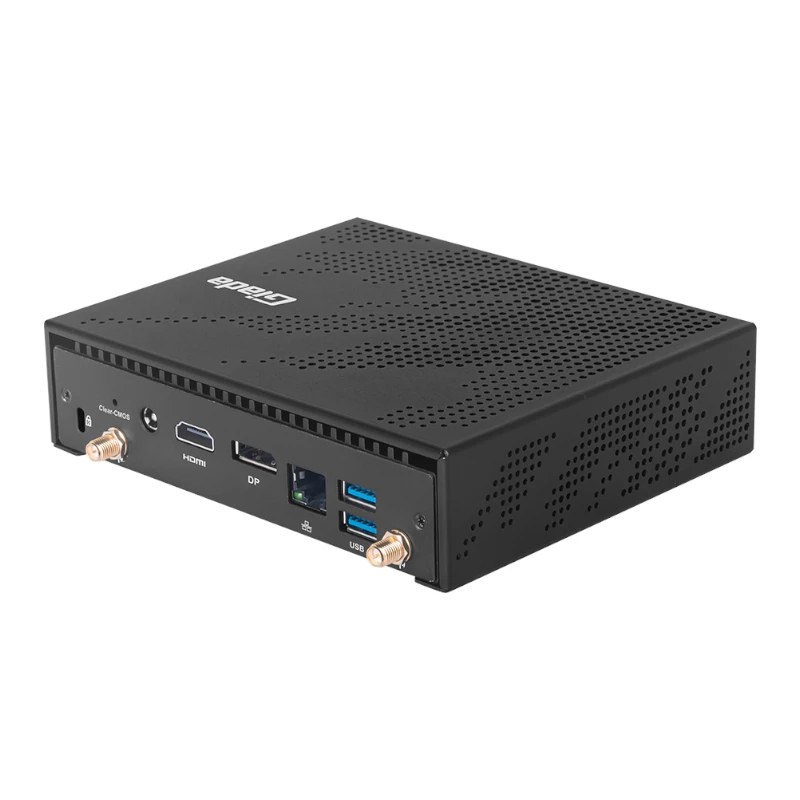

The Giada VM27 is a compact mini PC powered by an Intel Celeron N6210 processor with 4GB DDR4 memory and 64GB eMMC storage. It features a fanless design and supports dual displays via HDMI and DisplayPort, each capable of up to 4096 x 2160 @60Hz.

Key features

• Intel Celeron N6210 processor (2.60 GHz, 2 cores)
• 4GB DDR4-2666 MHz onboard memory
• 64GB eMMC5.1 onboard storage
• Intel UHD Graphics
• 1 x HDMI and 1 x DisplayPort, supporting up to 4096 x 2160 @60Hz
• 1 x RJ45 Gigabit LAN (Realtek RTL 8111H)
• 1 x E-Key M.2 (2230) for Wi-Fi/BT, supports Wi-Fi 5 and Wi-Fi 6
• 4 x USB 3.2 (10Gbps)
• 1 x RS232 serial port
• 1 x MIC-IN, 1 x AUDIO-OUT
• 2 x antenna connectors for Wi-Fi/BT
• Fanless design
• TPM: FTPM
• Watchdog timer, auto power on, RTC, remote on
• Windows 11 (64-bit) installed; also supports Windows 10 (64-bit) and Linux Ubuntu (64-bit)
• DC-IN 19V/2.37A power
• Operating temperature: 0°C to 45°C
• Relative humidity: 95% @ 45°C (non-condensing)
• Metal construction, black colour
• Dimensions: 15.4 x 12.5 x 4 cm

Specifications

• Brand: Giada
• MPN: VM27-N621042E6G-GIA
• Processor: Intel Celeron N6210, 2.60 GHz, 2 cores
• Chipset: SoC
• Memory: 4GB DDR4-2666 MHz onboard
• Storage: 64GB eMMC5.1 onboard; 1 x Full-size Mini-PCIe for MSATA
• Graphics: Intel UHD Graphics; DirectX 12.1, OpenGL 3.0, OpenCL 1.1, Intel Quick Sync Video
• Display outputs: 1 x DP (max 4096 x 2160 @60Hz), 1 x HDMI (max 4096 x 2160 @60Hz)
• Network: 1 x RJ45 Gigabit Ethernet (Realtek RTL 8111H)
• Wi-Fi/BT: 1 x E-Key M.2 (2230), supports Wi-Fi 5, Wi-Fi 6
• Mobile network: NA
• USB: 4 x USB 3.2 (10Gbps)
• Serial port: 1 x RS232
• Audio: 1 x MIC-IN, 1 x AUDIO-OUT
• Antenna: 2 x connector for Wi-Fi/BT
• Buttons: 1 x Power on, 1 x CLR-CMOS
• TPM: FTPM
• Watchdog timer: Yes
• Auto power on: Yes
• RTC: Set up independently every day
• Remote on: Yes
• Fanless: Yes
• Operating system: Windows 11 (64-bit) installed; supports Windows 10 (64-bit), Linux Ubuntu (64-bit)
• Power: DC-IN 19V/2.37A
• Operating temperature: 0°C ~45°C @0.7m/s air flow
• Relative humidity: 95% @ 45°C (non-condensing)
• Certification: CE, FCC Class B
• Construction: Metal
• Colour: Black
• Dimensions: 15.4 x 12.5 x 4 cm
