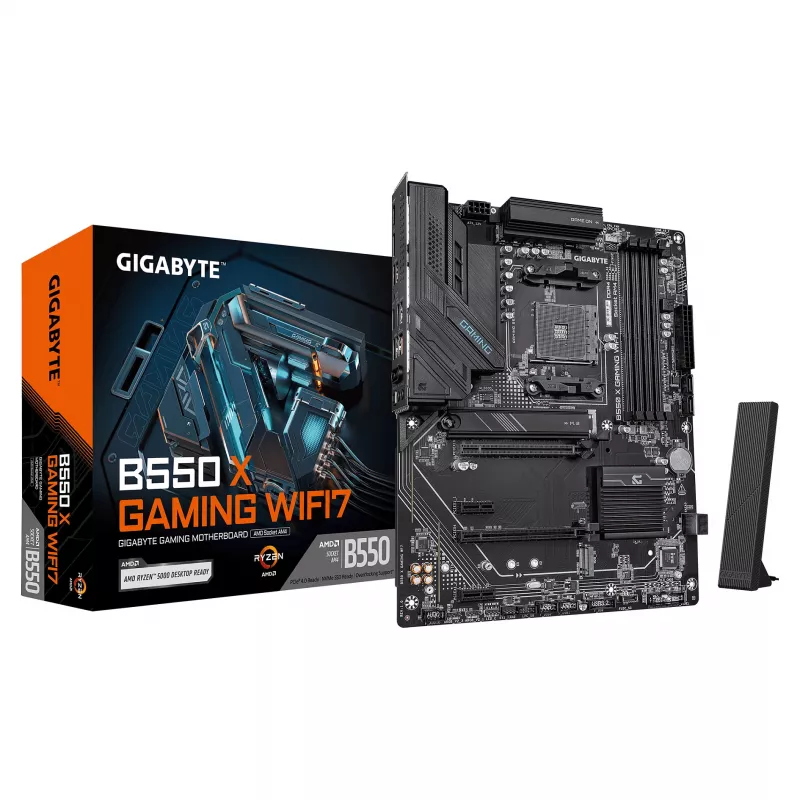

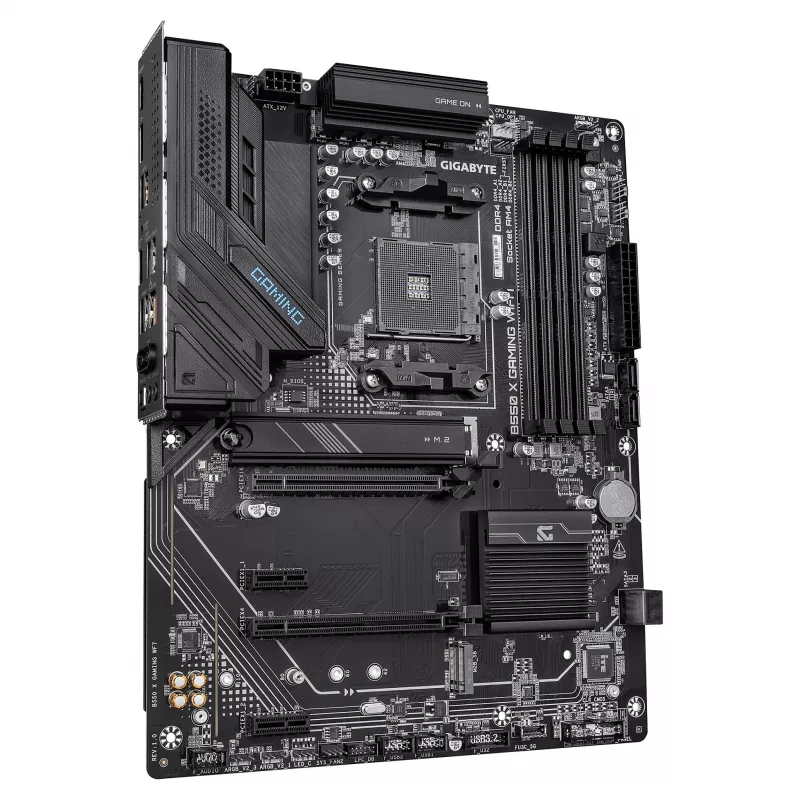

Gigabyte B550 X GAMING WIFI7 emolevy AMD AM4:lle, DDR4, Wi-Fi 7, M.2, HDMI

Built for AMD Ryzen enthusiasts who want modern connectivity without the full ATX footprint, the Gigabyte B550 X GAMING WIFI7 blends the proven AM4 platform with next-generation Wi-Fi 7 and dual M.2 storage. This micro ATX board is ready for high-speed networking, and its DDR4 memory support makes it a sensible upgrade for existing builds.

Highlights

• AMD AM4 socket supports Ryzen 5000, 4000 and 3000 series processors
• AMD B550 chipset with PCIe 4.0 for graphics and storage
• Dual M.2 slots - one PCIe 4.0 x4 and one PCIe 3.0 x2
• Wi-Fi 7 technology for ultra-low latency wireless networking
• Four DDR4 DIMM slots, up to 128 GB and 4733 MHz (OC)
• Micro ATX form factor fits compact builds

In daily use

The B550 X GAMING WIFI7 offers a complete rear I/O with four USB 3.2 Gen 1 ports and four USB 2.0 ports, plus HDMI and DisplayPort outputs for CPU-integrated graphics. With dual M.2 slots and four SATA 6Gb/s ports, you have flexible storage options. Gigabit Ethernet and Wi-Fi 7 ensure reliable wired or wireless connectivity.

Full specifications

• CPU Socket: AMD AM4
• Chipset: AMD B550
• CPU Compatibility: AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series
• Memory Type: DDR4 SDRAM
• Memory Slots: 4 x DIMM
• Max Memory: 128 GB
• Max Memory Speed (OC): 4733 MHz
• Form Factor: Micro ATX
• PCIe x16: 1 x PCIe 4.0/3.0 x16, 1 x PCIe 3.0 x16 (x4 mode)
• PCIe x1: 1 x PCIe 3.0 x1
• M.2 Slots: 2 (1x PCIe 4.0/3.0 x4, 1x PCIe 3.0 x2)
• SATA 6Gb/s: 4
• RAID Support: RAID 0, RAID 1, RAID 10 (SATA)
• USB 3.2 Gen 1 Rear: 4
• USB 2.0 Rear: 4
• Video Outputs: 1 x HDMI, 1 x DisplayPort (CPU dependent)
• LAN Speed: Gigabit Ethernet
• Audio Codec: Realtek ALC887/897

Final note

For a micro ATX motherboard that delivers current-generation Wi-Fi, dual M.2 storage and broad Ryzen compatibility, the Gigabyte B550 X GAMING WIFI7 is a solid pick for mainstream gaming or productivity systems.
