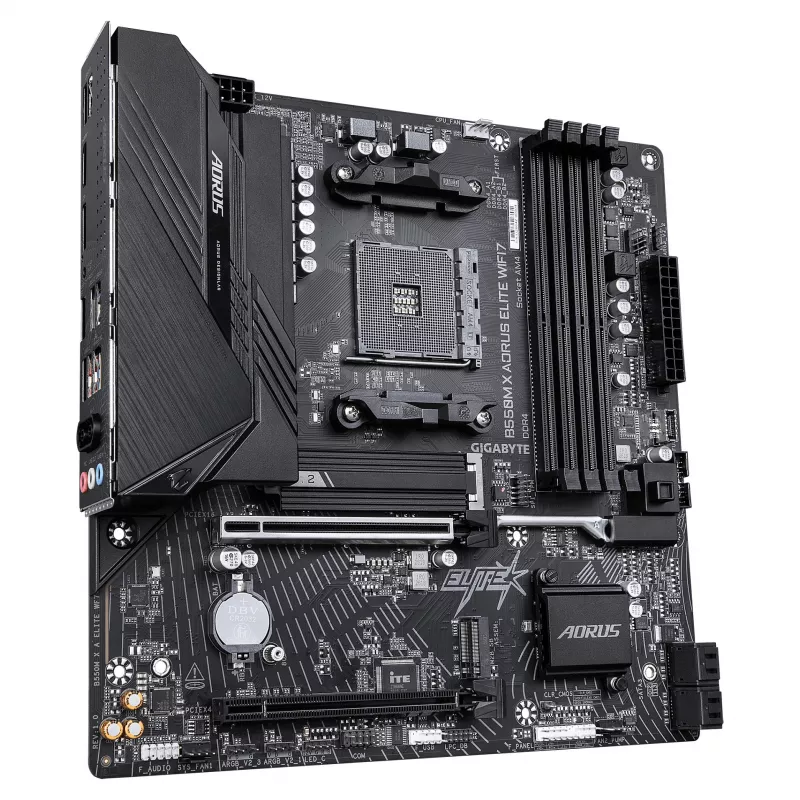

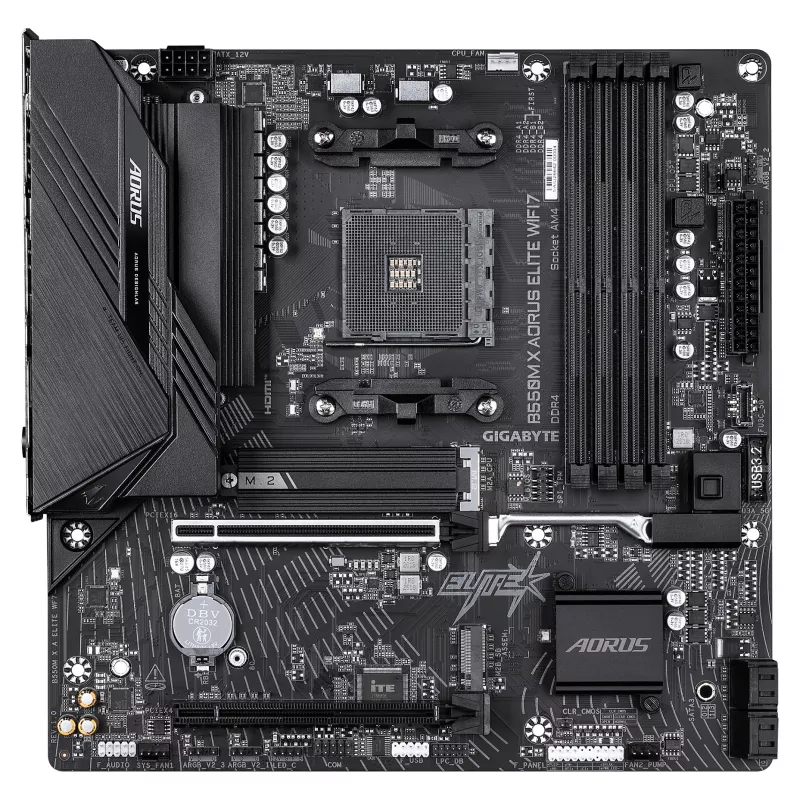

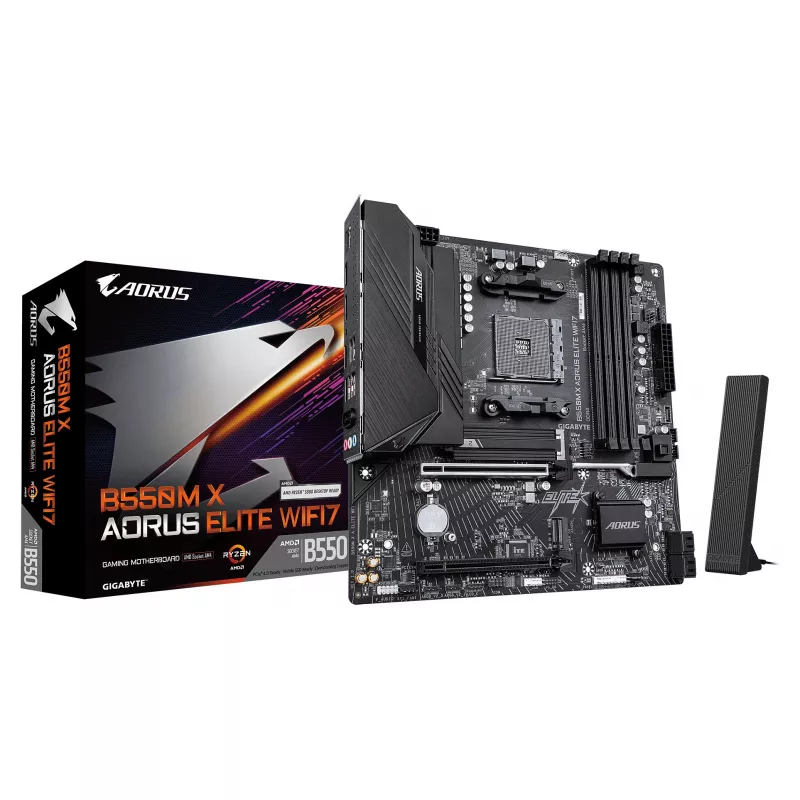

Gigabyte B550M X AORUS ELITE WIFI7 Micro-ATX-emolevy (AM4, DDR4, 2x M.2, Wi-Fi 7)

Building a compact AMD Ryzen system that doesn't compromise on connectivity or performance can be a challenge. The Gigabyte B550M X AORUS ELITE WIFI7 solves this by packing advanced features into a micro-ATX form factor. This motherboard supports AMD Ryzen 5000, 4000, and 3000 series processors on the AM4 socket, delivering reliable power and high-speed DDR4 memory support up to 128 GB. With Wi-Fi 7, 2.5GbE LAN, dual M.2 slots, and a rich set of USB ports, it's ready for gaming, content creation, and everyday productivity.

Who is it for

This board is ideal for PC builders who want a high-performance AM4 platform in a smaller case. Gamers will appreciate the fast networking and robust power delivery for Ryzen CPUs, while creators benefit from dual M.2 NVMe slots and ample memory capacity. It's also a great choice for upgrading an existing AM4 system with modern wireless connectivity.

Main features

• Supports AMD Ryzen 5000/4000/3000 series processors (AM4 socket)
• 4x DDR4 DIMM slots, up to 128 GB, dual-channel
• Wi-Fi 7 and Bluetooth for cutting-edge wireless
• 2.5 Gigabit Ethernet for high-speed wired networking
• Dual M.2 slots for NVMe SSDs
• HDMI and DisplayPort outputs for integrated graphics
• Micro-ATX form factor fits compact builds

Specifications

• Socket: AM4
• Chipset: AMD B550
• Memory: 4x DDR4 DIMM, max 128 GB, dual-channel
• Expansion: 2x M.2 slots, 4x SATA ports
• Networking: Wi-Fi 7, Bluetooth, 2.5GbE LAN

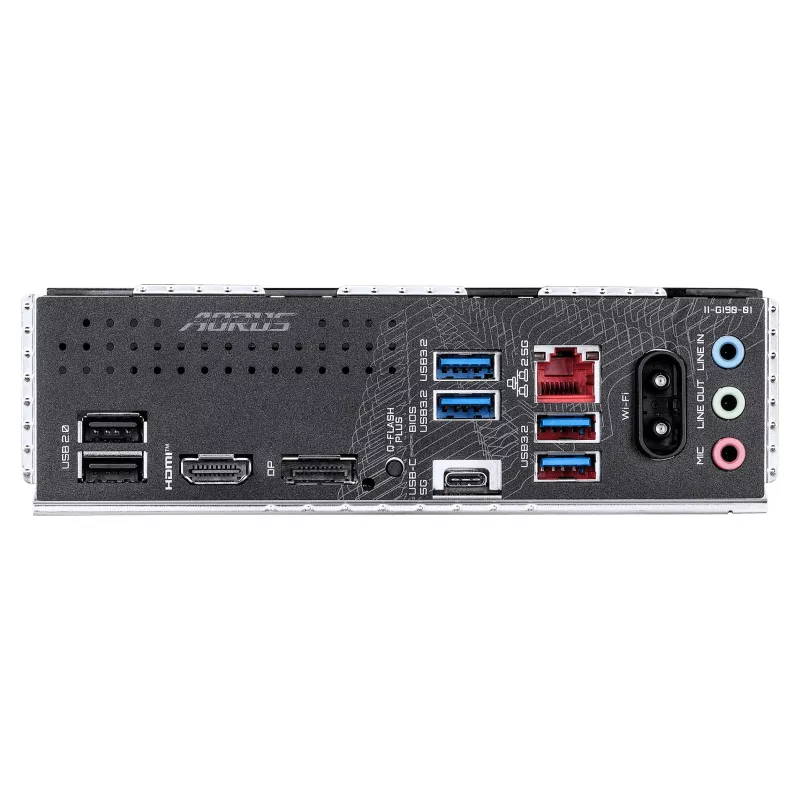

• Rear USB: USB 3.2 Gen 1 Type-A, USB 2.0
• Video outputs: HDMI, DisplayPort
• Form factor: Micro-ATX

Tips

Pair this motherboard with a Ryzen 5 5600X or Ryzen 7 5800X for excellent gaming performance. Use the M.2 slots for fast NVMe SSDs to reduce load times. Ensure your case supports micro-ATX and has good airflow for optimal cooling.
