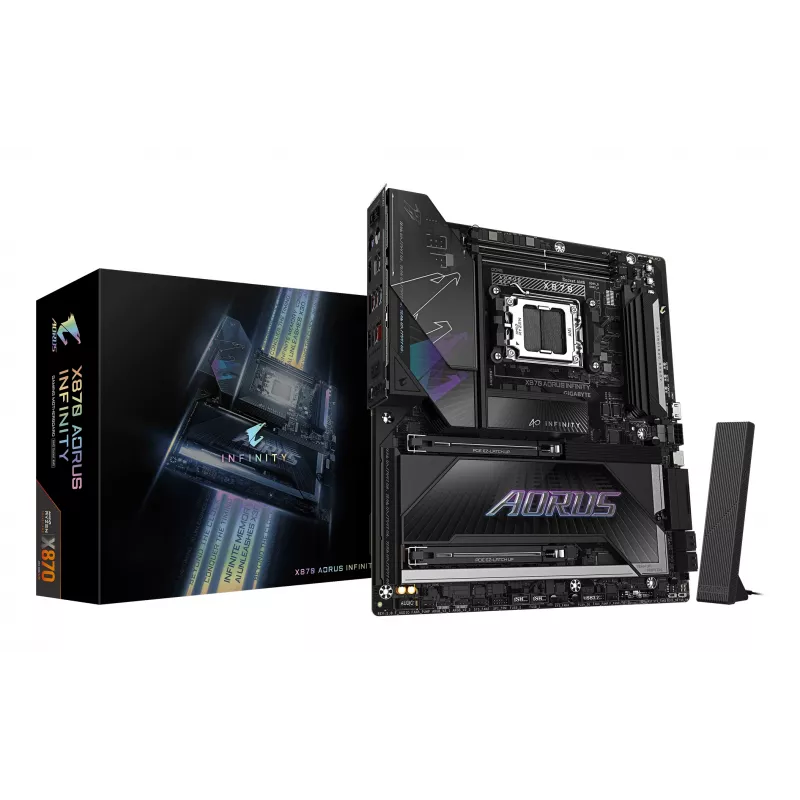

GIGABYTE X870 AORUS INFINITY AM5 ATX -emolevy, DDR5, 4x M.2, Wi-Fi 7, 2.5GbE

For enthusiasts assembling a high-performance AMD Ryzen 7000/8000/9000 series build, the GIGABYTE X870 AORUS INFINITY delivers a rock-solid foundation with cutting-edge connectivity and robust power delivery. This ATX motherboard pairs the AMD X870 chipset with a 16+2+2 digital VRM to handle multi-core CPUs with ease, while DDR5 memory support up to 8000+ MHz (OC) and 192GB capacity ensures smooth multitasking and gaming. Four M.2 slots—including one PCIe 5.0 x4 for blazing-fast NVMe SSDs—provide ample storage expansion, and the integrated Wi-Fi 7 with Bluetooth 5.4 offers wireless flexibility. A 2.5 Gigabit Ethernet port guarantees low-latency wired networking, and the rear I/O includes a USB 3.2 Gen 2x2 Type-C for high-speed peripherals. Whether you are building a gaming rig, content creation workstation, or future-proof PC, this board offers the features and stability you need.

Key specifications

• Socket: AMD AM5 (LGA 1718)
• Chipset: AMD X870
• Memory: 4x DDR5 DIMM, up to 192GB, speeds up to 8000+ MHz (OC)
• Expansion Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x4
• Storage: 4x M.2 (1x PCIe 5.0 x4, 3x PCIe 4.0 x4), 4x SATA 6Gb/s
• Network: 2.5 Gigabit Ethernet, Wi-Fi 7, Bluetooth 5.4
• Rear USB: 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 2 Type-A, 4x USB 3.2 Gen 1 Type-A, 4x USB 2.0 Type-A
• Video Outputs: 1x HDMI, 1x DisplayPort
• Audio: Realtek ALC1220-VB codec
• Form Factor: ATX

Why choose it

The X870 AORUS INFINITY stands out with its premium feature set: PCIe 5.0 support for next-gen graphics and storage, Wi-Fi 7 for ultra-fast wireless, and a robust VRM that ensures stable power delivery even under heavy overclocking. GIGABYTE's renowned build quality and BIOS make setup straightforward, while the inclusion of four M.2 slots offers exceptional storage flexibility. The 2.5GbE LAN and modern USB ports cater to high-speed peripherals and network-attached storage, making this board a future-ready choice.

Ideal use cases

• High-end gaming PCs with Ryzen 7000/8000/9000 processors
• Content creation and video editing workstations requiring fast storage and memory
• Enthusiast builds with PCIe 5.0 SSDs and graphics cards
• Systems needing both high-speed wired and wireless networking
• Compact ATX builds with multiple M.2 drives for a clean setup

Good to know

The motherboard supports AMD EXPO for easy memory overclocking and features GIGABYTE's Q-Flash Plus for BIOS updates without a CPU. It includes comprehensive cooling options for M.2 drives and VRM, ensuring sustained performance. The rear I/O shield is pre-installed for convenience, and the board is compatible with Windows 10 and 11. Note that using the PCIe 5.0 M.2 slot may share bandwidth with the primary PCIe x16 slot depending on configuration; refer to the manual for details.
