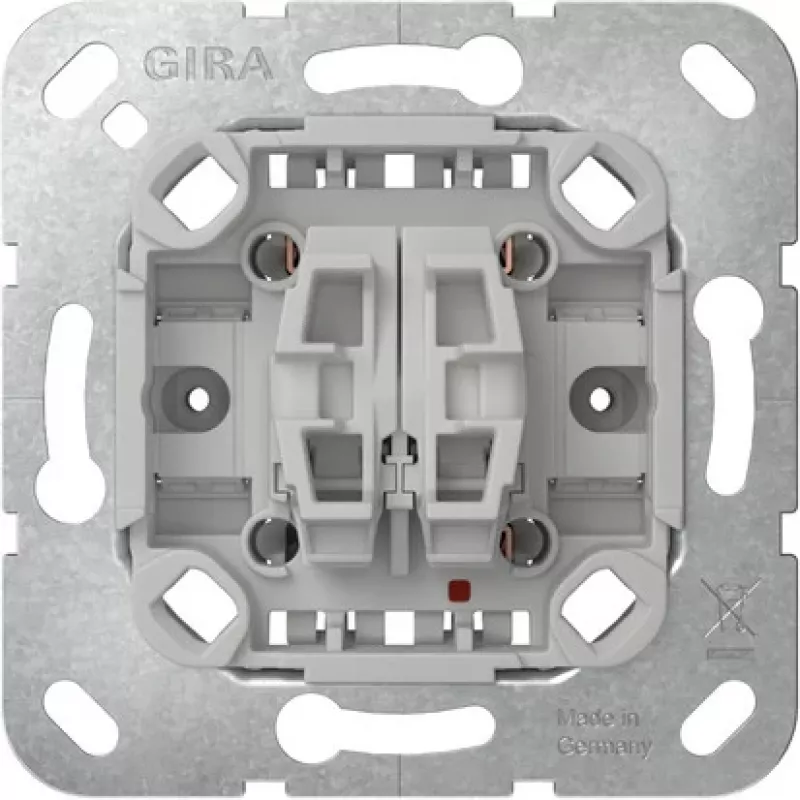

GIRA 383500 painikesisäosa, 2-kertainen, kosketuskontakti, uppoasennus

This Gira push-button insert stands out by combining two independent momentary contacts in a single flush-mounted unit, so a single rocker can control two separate circuits or functions without additional wiring complexity. It is the core switching component for Gira System 55 and compatible design lines, leaving the visible rocker and frame to be chosen separately to match the room's style.

Highlights

• 2-gang series push-button insert with momentary contact function
• Rated for 250 V AC, 10 A, suitable for lighting and blind control
• Flush-mounted with screw fixing, no claws required
• Compatible with Gira System 55, E2, Event, Esprit, ClassiX, and F100 design lines
• Thermoplastic housing, IP20, operating temperature -20 °C to +40 °C

In daily use

The insert is installed behind a Gira cover plate and rocker (sold separately). Its screw terminals provide a secure connection for solid or stranded conductors. The momentary action returns the rocker to its original position after each press, making it ideal for impulse switches, stairwell timers, or blind control relays. The two gangs operate independently, allowing one rocker to manage two loads or functions.

Full specifications

• Product type: Push-button switch insert
• Switching function: Momentary contact (push-button)
• Number of gangs: 2 (series switch)
• Mounting type: Flush-mounted
• Fixing method: Screw fixing (without claws)
• Rated voltage: 250 V AC
• Rated current: 10 A
• Connection type: Screw terminals
• Material: Thermoplastic
• Protection class: IP20
• Operating temperature: -20 °C to +40 °C
• Contact type: Normally open (NO)
• Compatibility: Gira System 55, E2, Event, Esprit, ClassiX, F100

Final note

This insert requires a compatible Gira rocker and cover plate to complete the installation. It is the functional core, not a complete switch.
