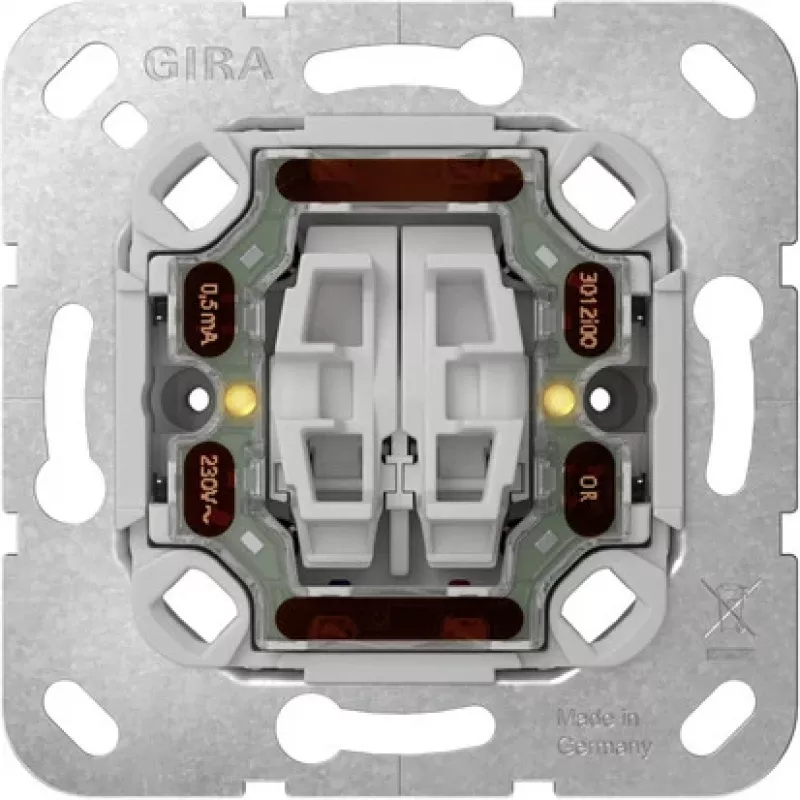

GIRA 384500 sarjakytkinosa, uppoasennus, 10 AX, 250 V, ruuviliittimet

Series switch insert for flush-mounted installation, enabling control of two separate lighting groups or electrical devices from a single point. The insert is compatible with Gira System 55, E2, Event, Esprit, ClassiX, and F100 ranges when paired with the appropriate rocker and frame.

Advantages

Two independent circuits in one compact unit. Screw terminals provide secure connections. Halogen-free thermoplastic construction.

Suitable for

• Controlling two lighting groups from one location
• Flush-mounted installations in standard wall boxes
• Gira switch ranges System 55, E2, Event, Esprit, ClassiX, F100

Key specifications

• Switch function: series switch
• Rated voltage: 250 V AC
• Rated current: 10 AX
• Number of circuits: 2
• Mounting type: flush-mounted
• Connection type: screw terminals
• Material: thermoplastic, halogen-free
• Installation depth: 32 mm

Recommendations

Combine with a Gira rocker and frame from the System 55 or compatible ranges to complete the switch.
