GIRA 387800 kaihdin-/rullaverhokytkimen painikeosa, ilman kantta

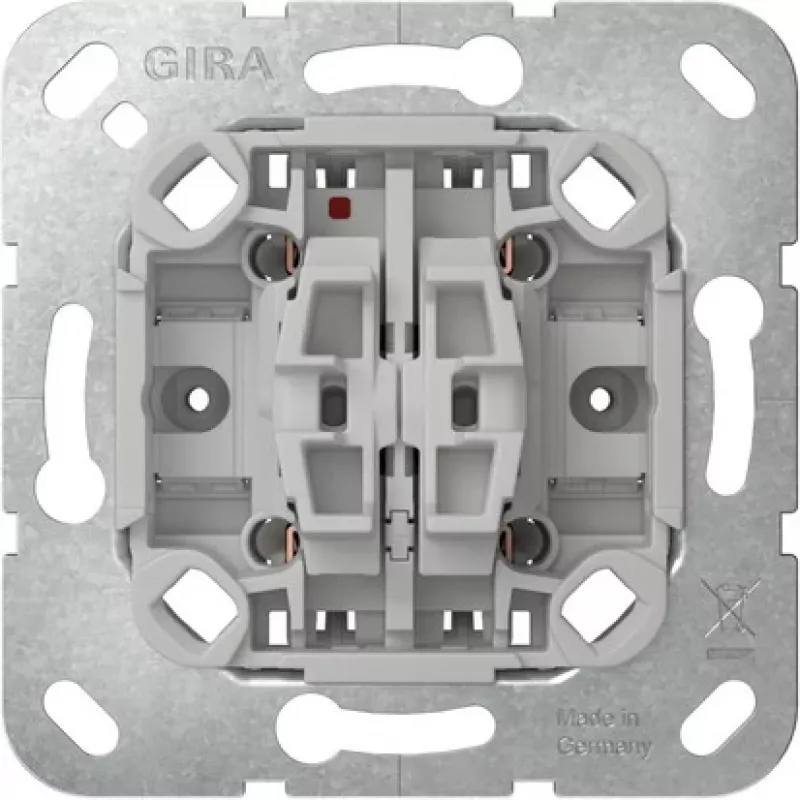

Controlling blinds, shutters, or awnings requires a reliable switching mechanism that fits seamlessly into your existing installation. The GIRA 387800 is a flush-mounted push-button insert that provides momentary switching for two directions—up and down—making it the core component for manual control of motorized window coverings.

Who is it for

Electricians and installers who need a dependable, system-compatible insert for Gira System 55 design frames. It is also suitable for homeowners upgrading their blind controls while keeping their chosen cover plates.

Main features

• Momentary (taster) function: press and hold to move blinds, release to stop.
• 2-pole switching for up/down control of blinds, shutters, and awnings.
• Flush-mounted design with screw fixing for secure installation.
• Compatible with Gira System 55, E2, Event, Esprit, ClassiX, S-Color, and F100 design lines.
• Screw terminals for straightforward wiring.

Specifications

• Product type: Blind/Shutter Push-button Insert
• Function: Momentary (Taster)
• Switching poles: 2-pole (Up/Down)
• Mounting type: Flush-mounted (Unterputz)
• Fixing method: Screw fixing
• Fixing claws: Without fixing claws
• Connection type: Screw terminals
• Contact type: Normally Open (NO) momentary contacts
• Contact rating (max.): 10 A / 250 V AC
• Number of terminals: 3 (Common, Up, Down)
• Installation depth: approx. 32 mm
• Material: Thermoplastic (PC)
• Operating temperature: -5 °C to +45 °C
• Storage/transport temperature: -25 °C to +70 °C
• Protection class: IP20 (when installed)
• Compatibility: Gira System 55, E2, Event, Esprit, ClassiX, S-Color, F100

Tips

This insert requires a compatible cover plate and rocker from the Gira System 55 range. For complete blind control, pair with a suitable frame and a blind switch cover. Always verify the electrical load of your blind motor before installation.
