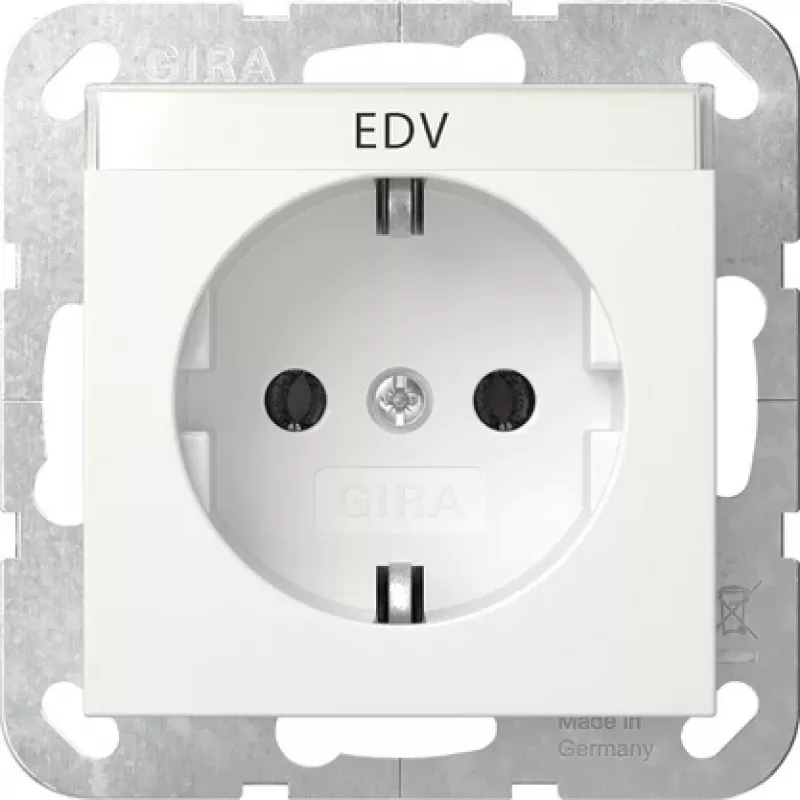

GIRA 445727 SCHUKO-pistorasia System 55 reinweiß

When a standard socket outlet leaves live contacts exposed to curious fingers or accidental contact, safety becomes a daily concern. The GIRA 445727 SCHUKO socket outlet with increased touch protection addresses this by integrating child-protective shutters directly into the mechanism. Designed for the Gira System 55 range, it fits flush into standard wall boxes and works with all System 55 frames, giving you a clean, uniform look in any indoor installation.

Who is it for

Electricians, builders, and homeowners upgrading or installing power points in residential or commercial spaces. It is especially suited to environments where child safety is a priority, such as homes, schools, and care facilities.

Main features

• SCHUKO socket outlet (Type F) with increased touch protection
• Rated at 16 A, 250 V AC for standard household and office loads
• Flush-mounted design for Gira System 55 frames
• Screw terminals for secure conductor connection up to 2.5 mm²
• Thermoplastic, shatterproof housing in pure white

Specifications

• Product type: SCHUKO socket outlet
• Socket standard: Type F (SCHUKO)
• Design line: Gira System 55
• Colour: Pure white
• Safety feature: Increased touch protection (child protection)
• Rated voltage: 250 V AC
• Rated current: 16 A
• Mounting type: Flush-mounted
• Connection type: Screw terminals
• Material: Thermoplastic (shatterproof)
• Protection class: IP20
• Number of sockets: 1
• Compatibility: Gira System 55 frames
• Application area: Indoor
• Certification: VDE
• Installation depth: Approx. 32 mm (mechanism)
• Terminal capacity: Up to 2.5 mm²

Tips

Pair with any Gira System 55 frame in the same colour for a seamless finish. Ensure the wall box depth is at least 32 mm to accommodate the mechanism. For outdoor or damp locations, use a suitable weatherproof enclosure, as this socket is rated IP20 for indoor use only.
