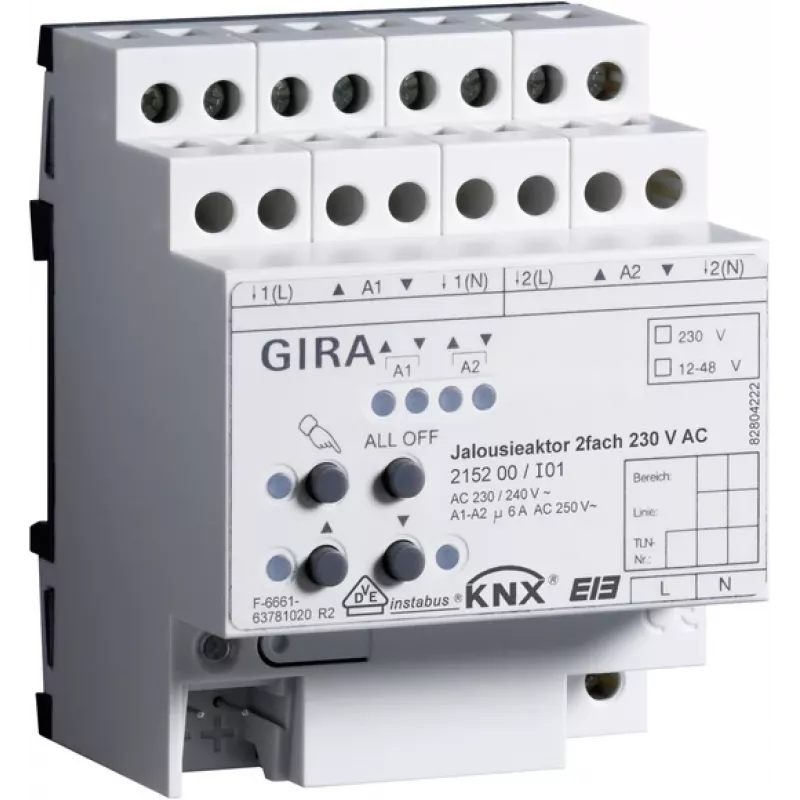

GIRA kaihdin-/rullaverhoaktuattori 2-kanavainen 230 V AC KNX/EIB DIN-kisko 215200

In a modern building equipped with a KNX bus system, this actuator controls two independent 230 V AC blind or shutter motors directly from the distribution board. Installers and system integrators mount it on a DIN rail, wire the motors to the screw terminals, and configure precise positioning, sun protection, and scene integration via ETS software.

Key specifications

• Bus system: KNX/EIB
• Device type: Blind/Shutter Actuator
• Number of channels: 2
• Output voltage: 230 V AC
• Output current per channel: 6 A (max.)
• Total output current: 12 A (max.)
• Mounting type: DIN rail (REG)
• Module width: 2 TE (36 mm)
• Operating voltage: via KNX bus
• Frequency: 50/60 Hz
• Protection class: IP20
• Operating temperature: -5 °C to +45 °C
• Manual operation: via buttons on device
• Programming: ETS software
• Connections: KNX bus terminal, screw terminals for load
• Short-circuit protection: Yes
• Overload protection: Yes
• Standby power consumption (KNX): typ. 10 mA

Why choose it

This actuator offers reliable blind and shutter control with precise positioning and scene integration, making it suitable for automated sun protection in residential and commercial KNX installations. Manual buttons allow on-site override during commissioning or maintenance.

Ideal use cases

• Automated sun protection in smart homes
• Blind control in office buildings with KNX
• Integration into building management systems

Good to know

The device is powered via the KNX bus, so no separate power supply is needed for its electronics. It is designed for DIN rail mounting in distribution boards.
