Gira kierroslukusäädinosuus 246000

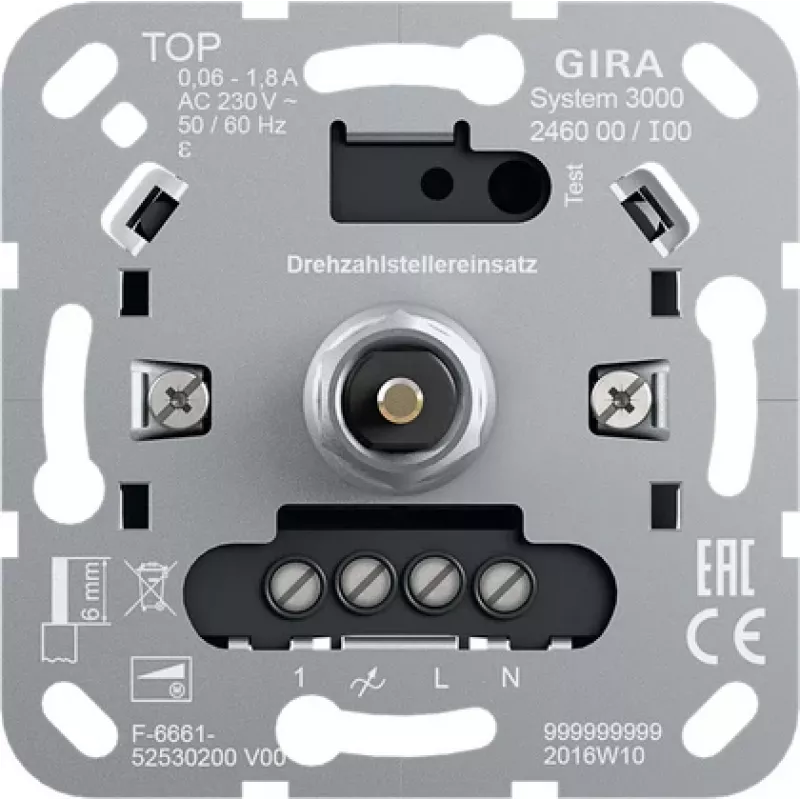

The Gira 246000 speed controller insert provides stepless regulation for inductive loads such as fan motors. Unlike simple on/off switches, it uses phase control to adjust speed continuously, making it suitable for ventilation and motor-driven applications where variable speed is required.

Highlights

• Stepless rotary knob for precise speed adjustment
• Designed for inductive loads (e.g., fan motors)
• Electronic short-circuit and overload protection
• Flush-mounted installation in standard switch boxes
• Compatible with Gira System 55 switch ranges (central plate and frame required)

In daily use

Install the insert in a flush-mounted box, connect the load via screw terminals, and attach a suitable Gira System 55 central plate and cover frame. The rotary knob allows smooth adjustment from minimum to maximum speed. The integrated protection prevents damage from short circuits or overloads.

Full specifications

• Operating voltage: 230 V AC
• Frequency: 50 Hz
• Rated current: 0.1 – 2.5 A
• Rated power: 20 – 500 VA
• Load type: Inductive loads (e.g., fan motors)
• Control method: Rotary knob, stepless (phase control)
• Mounting type: Flush-mounted
• Connection: Screw terminals
• Ambient temperature: -5 °C to +45 °C
• Installation depth: approx. 32 mm
• Housing material: Plastic

Final note

The Gira 246000 is a reliable choice for speed control of fans and other inductive loads in residential and commercial installations.
