Gira KNX liiketunnistin 1,10 m antrasiitti 205067

Detects motion across a 180° angle with a frontal range of 12 m and lateral range of 8 m, while presence detection covers 5 x 4 m at the recommended mounting height of 1.10 m.

Overview

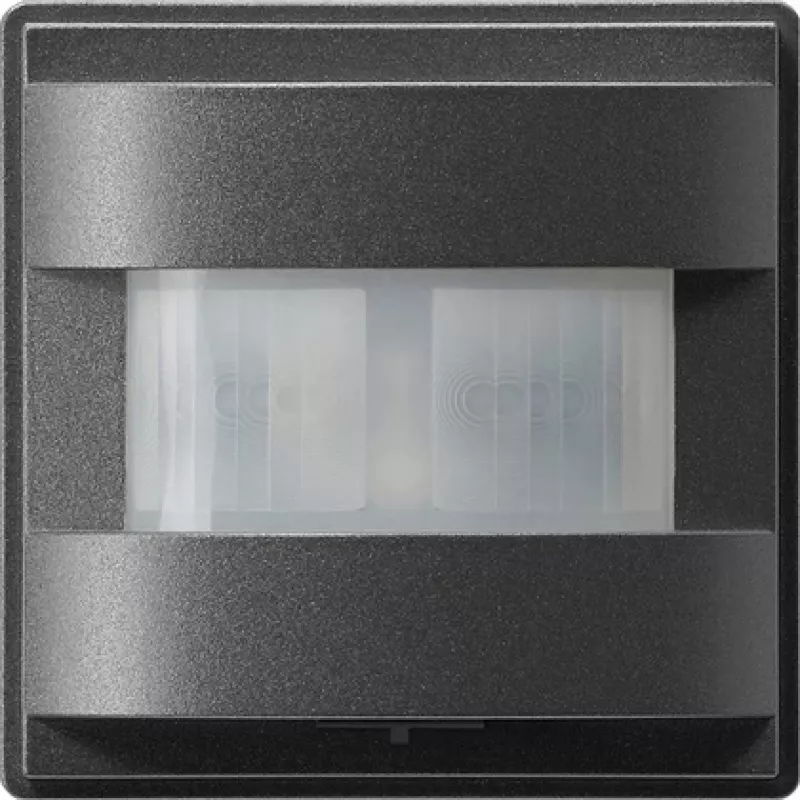

The Gira KNX Motion Detector 205067 is a flush-mounted sensor for KNX bus systems. It integrates motion, presence, and brightness detection in one device, with three channels for lighting, HVAC, and alarm functions. Configuration is done via ETS software.

What stands out

• 180° detection angle with 12 m frontal and 8 m lateral range
• Presence detection for precise room monitoring
• Brightness sensor adjustable from 10 to 2000 lux
• Three independent channels for flexible automation
• Anthracite thermoplastic housing, IP20 rated

Technical details

• Bus system: KNX (21-30 V DC, approx. 10 mA)
• Mounting: Flush-mounted (wall), recommended height 1.10 m
• Detection: Motion 12 m frontal / 8 m lateral; Presence 5 x 4 m
• Brightness sensor: 10–2000 lux
• Adjustable time delay: 10 s to 120 min
• Adjustable sensitivity
• Channels: 3 (light, HVAC, alarm)
• Material: Thermoplastic (shatterproof)
• IP rating: IP20
• Operating temperature: -5 °C to +45 °C
• Configuration: ETS software

Our verdict

A versatile KNX sensor for professional building automation, offering precise presence detection and flexible control in a durable anthracite design.
