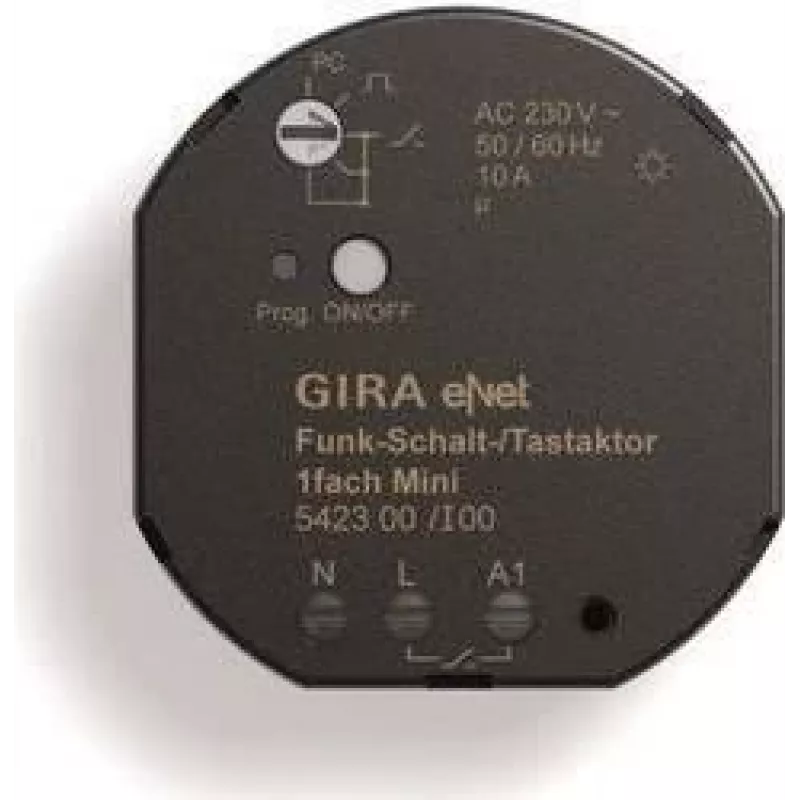

GIRA radio kytkin-/painikeaktori Mini 1-kertainen 542300

Wireless actuator for switching and push-button functions in a compact flush-mounted design. The GIRA 542300 enables remote control of lighting and other electrical loads via the Gira radio system at 868.3 MHz, with a maximum switching capacity of 2000 W resistive load.

Advantages

One-channel actuator with screw terminals for secure connections. Supports resistive, inductive, incandescent, halogen, electronic transformer and LED loads up to 200 W. Overload and short-circuit protection ensure reliable operation.

Suitable for

• Control of lighting circuits in residential and commercial buildings
• Integration with Gira radio transmitters for wireless switching
• Flush-mounted installation in standard device boxes

Key specifications

• Radio frequency: 868.3 MHz
• Power supply: 230 V AC, 50/60 Hz
• Max. switching current: 10 A
• Switching capacity resistive: 2000 W
• Incandescent/HV halogen: 1800 W
• Electronic transformers: 1500 W
• Inductive load: 1200 VA
• LED: 200 W
• Operating temperature: -5 °C to +45 °C
• Protection class: IP20

Recommendations

For wireless control, pair with compatible Gira radio transmitters. Ensure installation by a qualified electrician.
