Gira S3000 liiketunnistin 1,10 m standardi, System 55, alumiini 537326

With a wide 180° detection angle and a range of up to 10 metres, the Gira S3000 motion detector brings reliable presence detection to flush-mounted installations. Its adjustable brightness threshold (0–1000 lux) and time delay (10 seconds to 30 minutes) give you precise control over lighting automation.

Overview

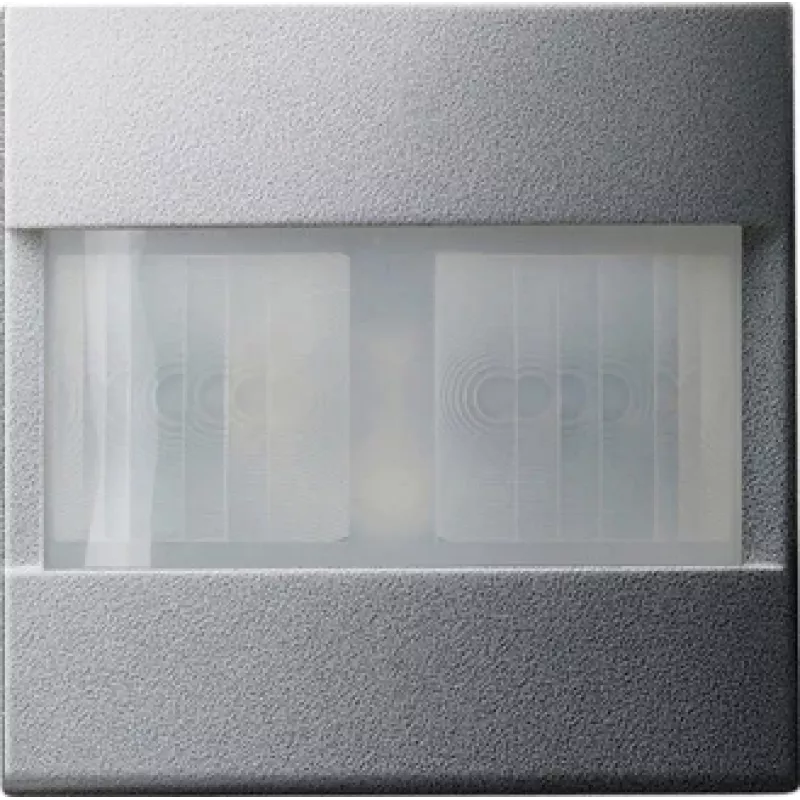

The Gira S3000 motion detector is designed for flush mounting at a recommended height of 1.10 m. It is part of the Gira System 55 design line and comes in a pure white glossy finish (RAL 9010) with an aluminium colour frame. The device operates on 230 V AC and supports a wide range of loads, including LED lamps up to 400 W in RC mode.

What stands out

• 180° detection angle with 10 m forward range and 6 m to each side
• Adjustable brightness threshold from 0 to 1000 lux
• Time delay adjustable from 10 seconds to 30 minutes
• Teach-in function for brightness and sensitivity adjustment
• Presence simulation and short-term operation modes
• Flush-mounted design for System 55 frames

Technical details

• Operating voltage: 230 V AC, 50/60 Hz
• Max. switching capacity incandescent/HV halogen: 2300 W
• Max. switching capacity LED: 400 W (RC mode)
• Max. capacitive load: 200 µF
• Standby power consumption: approx. 0.5 W
• Protection class: IP20
• Operating temperature: -20 °C to +45 °C
• Material: thermoplastic
• Colour: pure white glossy (RAL 9010)

Our verdict

A versatile and precise motion detector for flush-mounted installations, offering extensive adjustment options and a sleek System 55 design.
