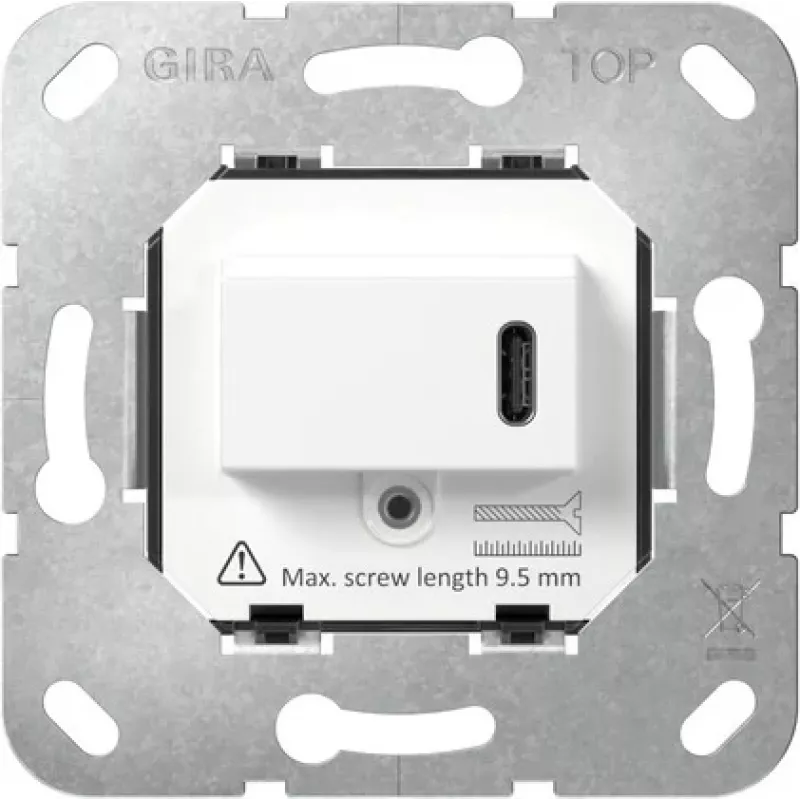

Gira SCHUKO-pistorasiaosa USB Type-C PD:llä, 16 A, 250 V, uppoasennus, musta 236200

Electricians and installers use the Gira SCHUKO socket outlet insert with USB Type C PD in residential and commercial buildings where a flush-mounted power socket with integrated fast charging is required. The insert combines a standard SCHUKO socket with a USB Type C port that supports Power Delivery, allowing direct charging of compatible devices without a separate adapter.

Key specifications

• Socket standard: SCHUKO (Type F)
• Number of sockets: 1
• Number of poles: 2-pole with earth
• Rated current: 16 A
• Rated voltage: 250 V AC
• Frequency: 50/60 Hz
• Mounting type: flush-mounted
• Connection type: screw terminals
• Fixing method: screw fixing (without claws)
• Material: thermoplastic
• Colour: black
• Protection class: IP20
• Operating temperature: -5 °C to +40 °C
• Installation depth: approx. 32 mm
• Compatibility: Gira System 55, E2, Esprit, Event, Standard 55, S-Color, TX_44 (requires matching cover and frame)

Why choose it

The integrated USB Type C PD port delivers fast charging for smartphones, tablets and other USB-C devices, eliminating the need for a separate charger. The insert is designed for standard flush-mount wall boxes, and its screw terminals ensure a secure connection. The black thermoplastic housing blends with dark cover frames.

Ideal use cases

• Bedrooms and living areas where device charging is frequent
• Kitchens and home offices with limited counter space
• Hotels and meeting rooms requiring convenient power and USB charging

Good to know

The insert is VDE certified and suitable for indoor, dry rooms. It requires a compatible Gira cover and frame from the listed design lines. The USB port supports Power Delivery, enabling faster charging for compatible devices.
