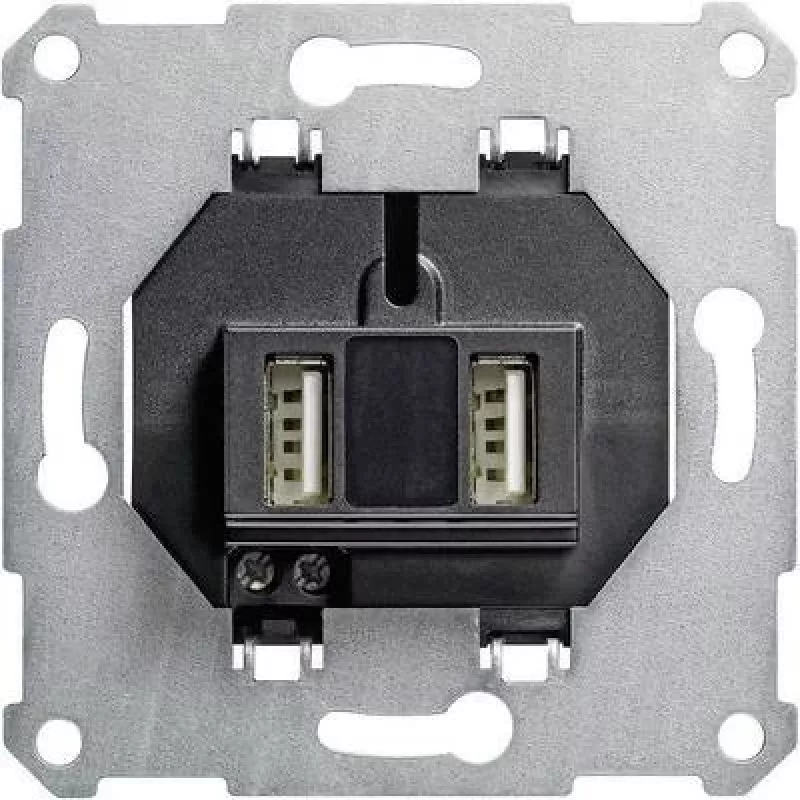

Gira USB-latausyksikkö Standard 55, E2, Event, Esprit, ClassiX, System 55 (235900)

For electricians and homeowners upgrading Gira System 55 installations, this USB charging insert adds two fast-charging ports directly into a standard flush-mounted box. It fits frames from the E2, Event, Esprit, and ClassiX ranges, including Event Klar and Event Opak variants.

Key specifications

• 2 USB ports: 1x USB Type A, 1x USB Type C
• Total output: 5 V DC, 3000 mA (3 A), 15 W
• Input: 230 V AC, 50/60 Hz
• Flush-mounted, compatible with Gira System 55
• Overload and short-circuit protection
• Standby power consumption: < 0.1 W
• Screw terminals, thermoplastic housing

Why choose it

Charges two devices simultaneously without occupying a wall outlet. The Type C port supports modern fast-charging protocols, while the Type A port covers legacy devices. Integrated protection prevents damage from overloads or short circuits.

Ideal use cases

• Retrofitting existing Gira System 55 installations with USB charging
• New builds specifying Gira E2, Event, Esprit, or ClassiX switch ranges
• Hotel rooms, offices, and residential spaces needing convenient charging

Good to know

Requires a standard flush-mounted box and a compatible Gira cover frame (not included). The insert is designed for indoor use, with an operating temperature range of 0 °C to +45 °C.
