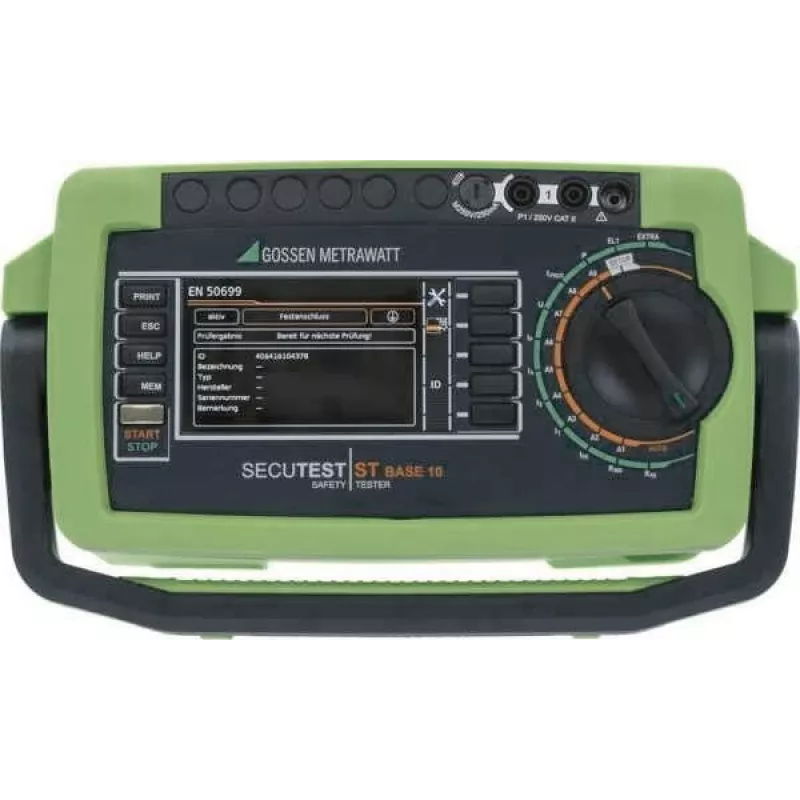

Gossen Metrawatt SECUTEST LEMONGREEN testilaitesarja kalibroitu (DAkkS) VDE 0701-0702, 0544, 0751 (M708E)

The SECUTEST LEMONGREEN from Gossen Metrawatt stands out in the field of electrical safety testing with its distinctive high-visibility design and comprehensive measurement capabilities. This calibrated set, verified by a DAkkS-accredited laboratory, addresses the stringent requirements of VDE 0701-0702, VDE 0544, and VDE 0751, making it suitable for testing portable appliances, arc welding equipment, and medical devices. The integrated high-resolution color graphic display and automatic limit value comparison streamline the testing process, while the internal memory for up to 1000 test results and USB interface facilitate efficient data management.

Highlights

• DAkkS calibration certificate included for traceable accuracy
• Wide range of measurement functions: protective conductor resistance, insulation resistance, equivalent leakage current, differential current, touch current, and function test (P, U, I)
• Supports PRCD/RCD testing for types A, F, B, and B+
• Pre-programmed and user-definable test sequences for flexible operation
• Compatible with IZYTRONIQ software for advanced reporting and data management
• Operates on mains power (100-240V AC) and rechargeable battery for field use

In daily use

The SECUTEST LEMONGREEN is engineered for both benchtop and field applications. Its integrated help function guides users through complex test procedures, reducing the likelihood of errors. The automatic limit value comparison provides immediate pass/fail indication, enhancing productivity. With a safety rating of CAT II 300V and protection class IP40, it is built to withstand typical testing environments. The included carrying case and test leads ensure readiness for on-site inspections.

Full specifications

• Product Type: Portable Appliance Tester (PAT Tester)
• Standards Compliance: VDE 0701-0702, VDE 0544, VDE 0751 (Medical Devices)
• Display Type: High-resolution color graphic display
• Internal Memory: Up to 1000 test results
• Interfaces: USB
• Power Supply: Mains operation (100-240V AC) and rechargeable battery
• Measurement Functions: Protective conductor resistance, Insulation resistance, Equivalent leakage current, Differential current, Touch current, Function test (P, U, I), PRCD/RCD testing (Type A, F, B, B+), Extension cable testing
• Software Compatibility: IZYTRONIQ
• Safety Category: CAT II 300V
• Protection Class (Device): IP40
• RPE Measurement Range: 0.001 Ω to 10 Ω
• RISO Measurement Range: 0.01 MΩ to 300 MΩ
• Leakage Current Measurement Range: 0.001 mA to 20 mA
• Voltage Measurement Range: 0 V to 300 V AC
• Current Measurement Range: 0 A to 16 A AC
• Power Measurement Range: 0 W to 3.6 kW

Final note

The SECUTEST LEMONGREEN is a professional-grade testing solution that combines versatility, accuracy, and ease of use, backed by DAkkS calibration for reliable compliance testing.
