GPU-sarja Thermal Grizzly TG-WV-P38H1N universaali alumiini

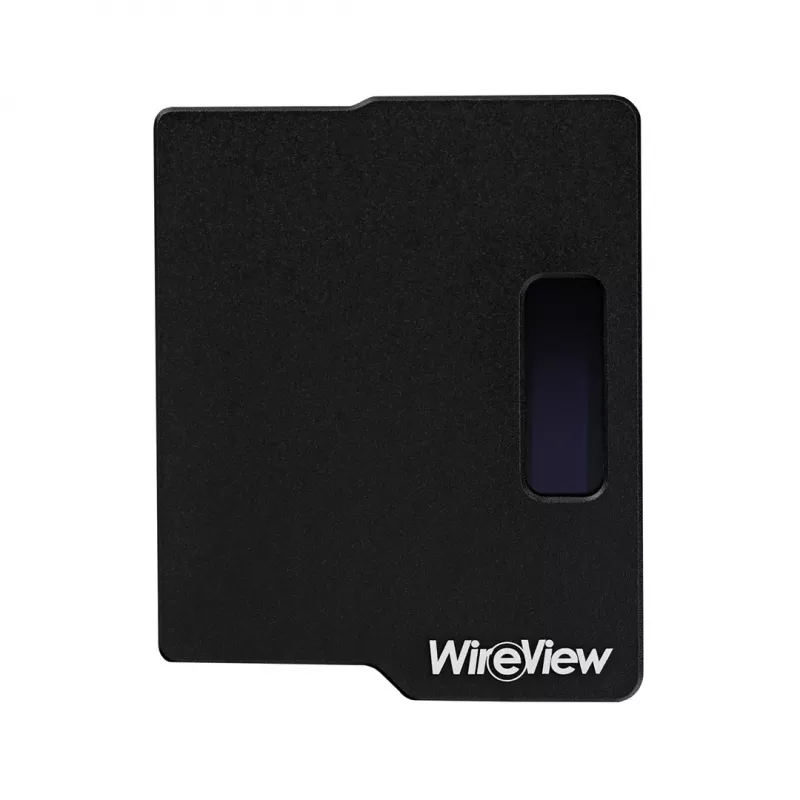

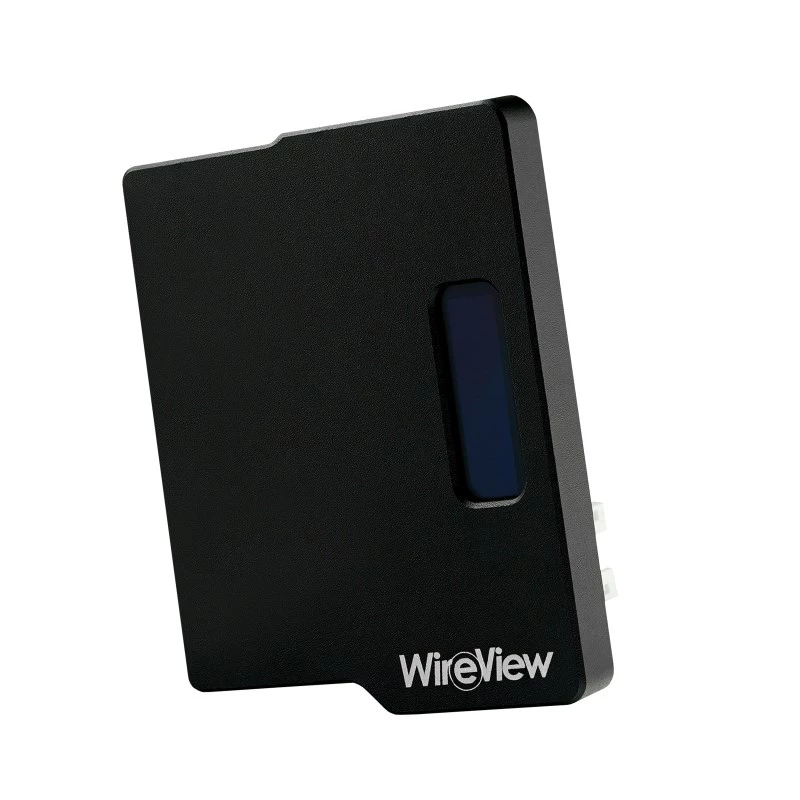

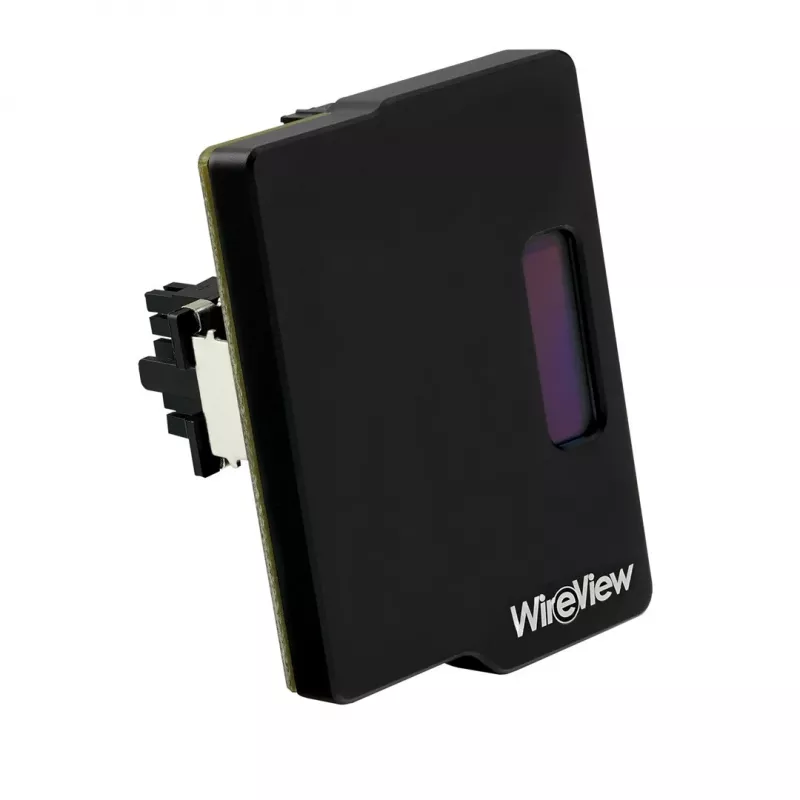

WireView GPU is a measurement and cable-management device for graphics cards that connects between the GPU power connectors and the power supply using PCIe power cables. It displays power consumption data on a built-in OLED screen and provides an organised, U-shaped routing for PCIe cables to reduce cable bulges and simplify cable management.

Advantages

The WireView GPU records and displays current, minimum, maximum and averaged power consumption values, and also shows total energy consumed. Its 60‑second averaging cycle provides a quick overview of typical power use, making it suitable for reviews and short tests. The U-shaped aluminium body enables neat cable routing over the GPU backplate, improving cable organisation and mechanical stability. Multiple versions support normal and rotated connector orientations and different 12VHPWR/PCIe connector configurations for high-power GPUs.

Suitable for

• Measuring GPU power consumption for reviews and benchmarks
• Monitoring power draw during gaming or GPU‑intensive applications
• Comparing energy use between graphics cards
• Improving cable routing and management in GPU installations

Key specifications

• Display: built-in OLED showing W, V, A, min/max W, average (60 s) and total energy
• Form factor: U-shaped aluminium body for cable routing and stability
• Connector orientations: "N" (normal) and "R" (rotated) for PCIe connector clip direction

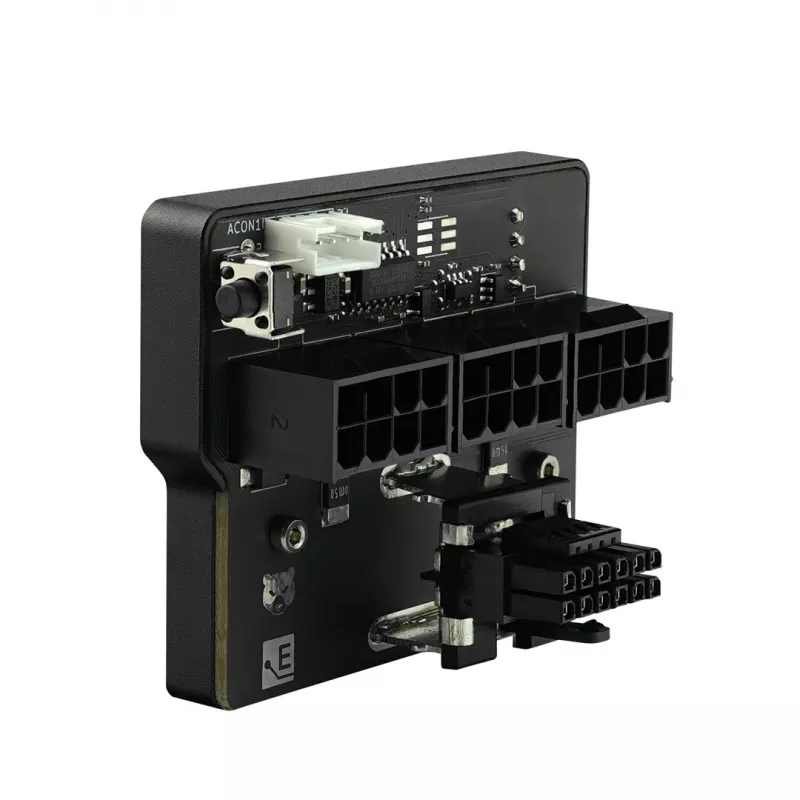

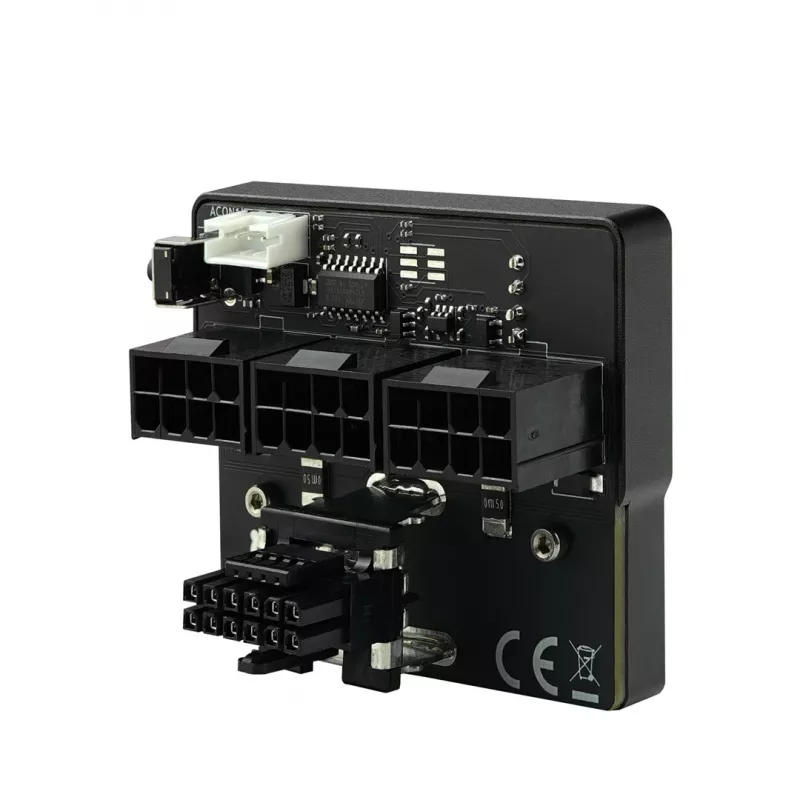

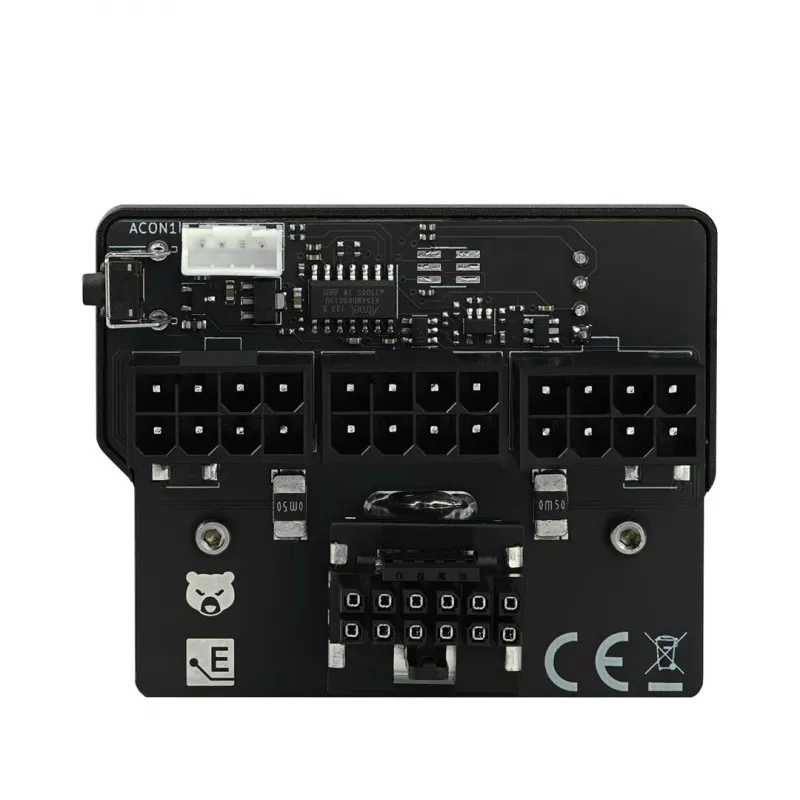

• High-power variants: single 12VHPWR in/out or 12VHPWR to three 8‑pin PCIe inputs
• Measurement cycle: special 60‑second averaging mode for quick display

How to use

Plug the WireView GPU into the GPU's PCIe power connectors and connect the device to the power supply using the PCIe power cables. When using a 12VHPWR configuration that requires three 8‑pin PCIe cables, connect each 8‑pin PCIe connector to the power supply with a separate cable (do not use splitters or Y‑cables). Use the device buttons to cycle through displayed values on the OLED: current power (W), voltage (V), current (A), min/max power, 60‑second average and total energy.

Recommendations

Ensure you select the correct orientation (N or R) and the appropriate high‑power variant for your GPU connector. When using 12VHPWR adapters, always use three independent 8‑pin PCIe cables from the PSU to avoid overloading a single cable or connector.
