GPU-teline InLine 11109A ruostumaton teräs 122 mm

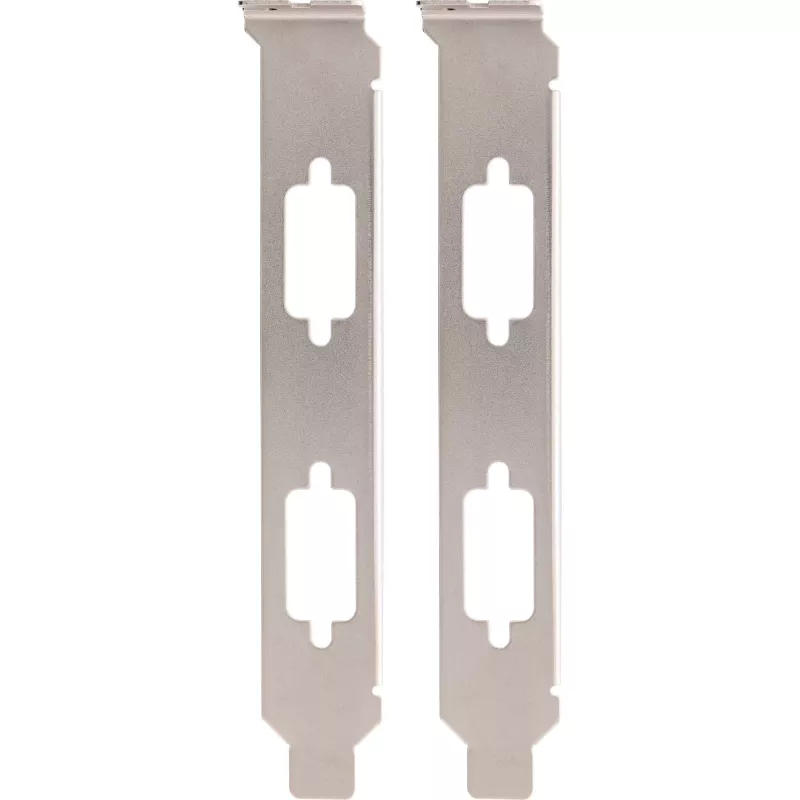

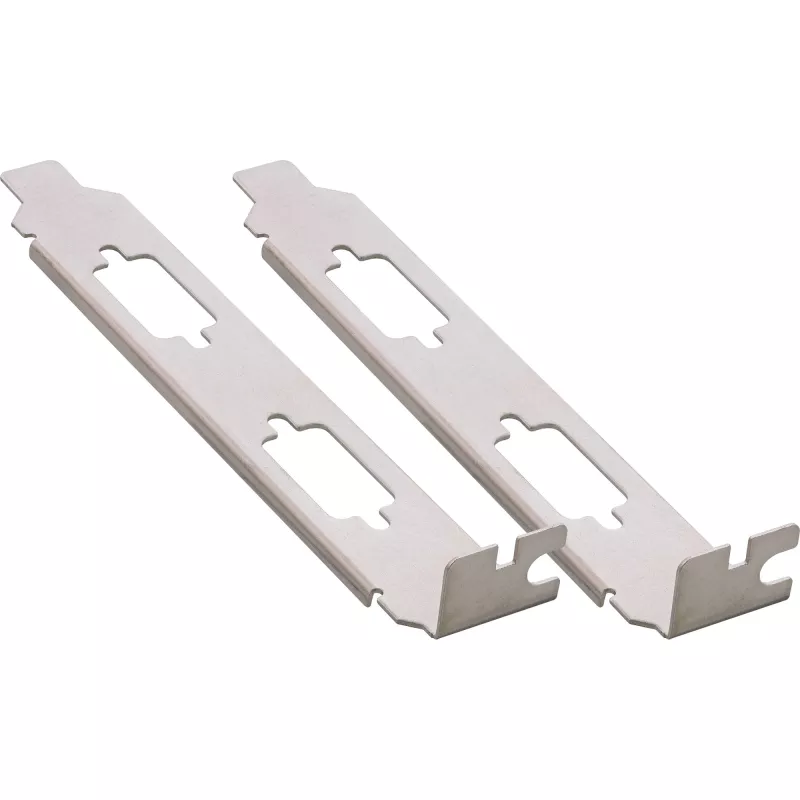

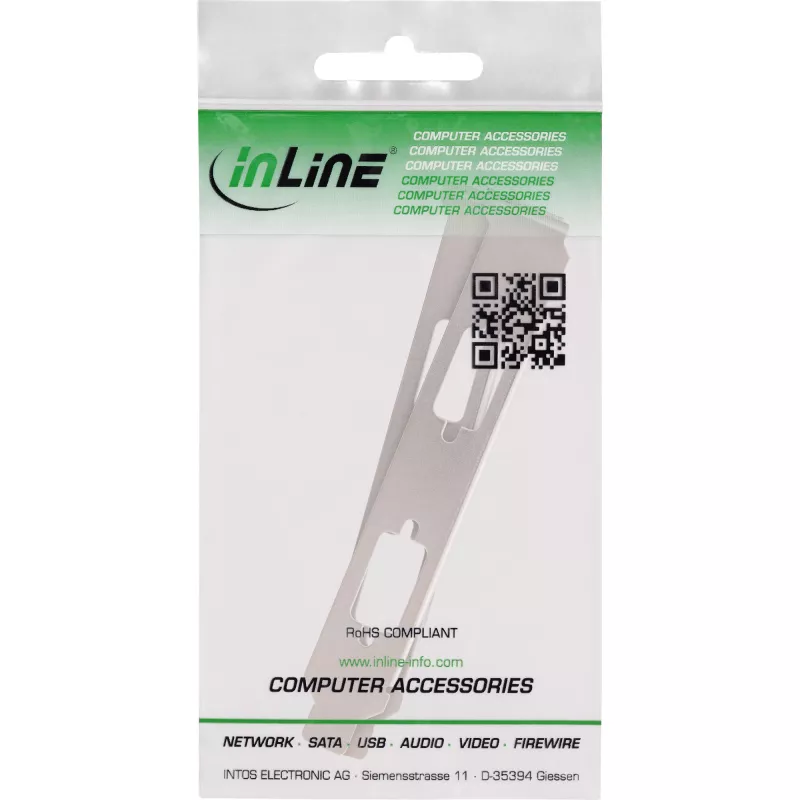

The InLine 11109A GPU bracket is a stainless steel support bracket measuring 122 mm in width, supplied as a pack of two. It is designed to mount two 9-pin male or female Sub-D connectors on the backplane of a housing or server using an available PCI slot, and to provide mechanical support for graphics cards to help maintain stability during operation.

Advantages

Constructed from stainless steel for corrosion resistance and durability. Compact 122 mm width and lightweight 25 g design that fits standard PCI slot openings. Supplied in pairs to cover both mounting points or to provide a spare. Compatible with 9-pin Sub-D connectors and intended to improve mechanical stability for installed GPUs.

Suitable for

Key specifications

How to use

Install the bracket into an available PCI slot on the backplane of your case or server by aligning it with the slot opening and securing it with the standard slot fastener. Use the bracket to mount up to two 9-pin Sub-D connectors, ensuring connector orientation and fastening are correct. Position the graphics card so that the bracket provides additional mechanical support and prevents undue stress on the card’s PCIe connector during installation and operation.

Recommendations

Ensure the system is powered off and disconnected from mains power before installation. Verify compatibility of the Sub-D connector gender (male or female) and confirm that the bracket aligns with your chassis PCI slot spacing. Tighten mounting screws securely but avoid over-torquing to prevent deformation of the stainless steel bracket or damage to connectors.
