Grenton analoginen tulo- ja lähtömoduuli, 4 tuloa 2 lähtöä, 1-Wire, DIN-kisko, TF-Bus

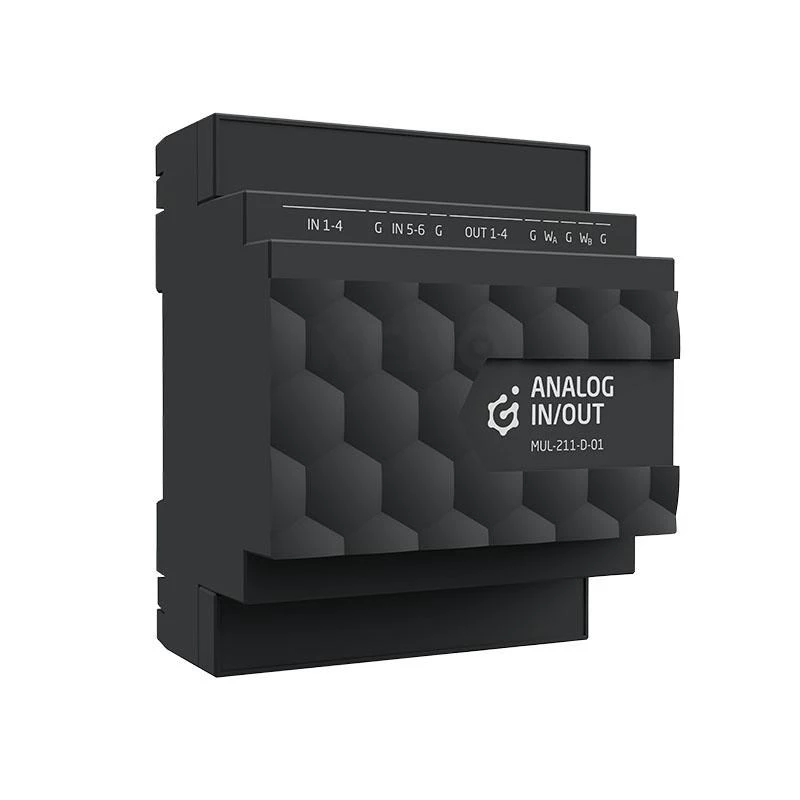

The Grenton MUL-211-D-01 is a versatile analog input and output module designed for the Grenton Smart Home System. It supports 1-Wire bus for connecting up to 8 DS18B20 temperature sensors and communicates via TF-Bus protocol. The module features 4 analog inputs (0-10V, 4-20mA, NTC 10kΩ, PT1000, DS18B20) with 12-bit resolution and 2 analog outputs (0-10V) with 10-bit resolution. It is DIN rail mountable, occupies 2 DIN modules (approx. 35mm), and is powered by 24V DC with a maximum power consumption of 2W. Operating temperature range is -10°C to +50°C, with IP20 protection rating.

Advantages

This module provides flexible analog signal acquisition and control, supporting multiple sensor types including temperature sensors via 1-Wire. Its compact DIN rail design saves space in electrical cabinets, and the TF-Bus communication ensures reliable integration with the Grenton system.

Suitable for

• Smart home automation systems
• Building management and control
• Industrial analog signal monitoring
• Temperature sensing with DS18B20 sensors

Key specifications

• Product Type: Analog Input/Output Module
• Brand Compatibility: Grenton Smart Home System
• Communication Protocol: TF-BUS
• Mounting Type: DIN Rail
• Number of Analog Inputs: 4
• Analog Input Types: 0-10V, 4-20mA, NTC 10kΩ, PT1000, DS18B20 (via 1-Wire)
• Analog Input Resolution: 12-bit
• Number of Analog Outputs: 2
• Analog Output Type: 0-10V
• Analog Output Resolution: 10-bit
• 1-Wire Bus Support: Yes
• 1-Wire Bus Capacity: Up to 8 DS18B20 sensors
• Power Supply: 24V DC
• Max Power Consumption: 2W
• Operating Temperature: -10°C to +50°C
• Protection Rating: IP20
• Module Width: 2 DIN modules (approx. 35mm)

Recommendations

For optimal performance, use with Grenton TF-Bus compatible controllers and certified 24V DC power supplies. Ensure proper DIN rail installation and avoid exposure to moisture or extreme temperatures.
