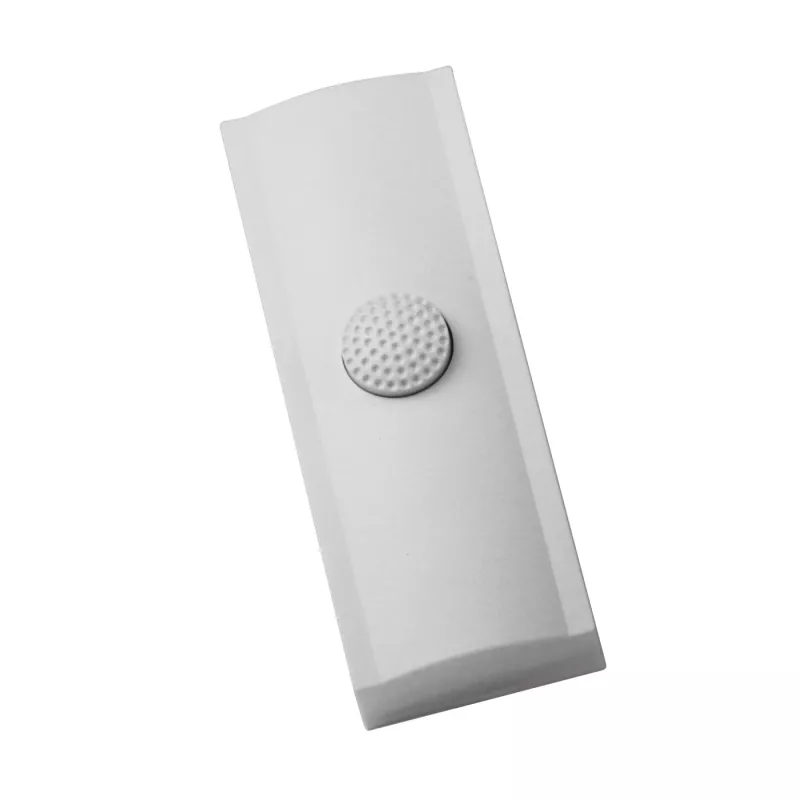

Grothe KKO 2001 WS/WS ovikellopainike Golf valkoinen 64032

Bell push button with a single momentary contact, finished in golf white. The KKO 2001 WS/WS provides a reliable push-to-make action for doorbell and signal systems, with a flush-mounted design and screw terminals for straightforward installation.

Advantages

Thermoplastic front plate in a matt golf white finish resists UV and is halogen-free. The compact 80 x 80 mm plate suits standard flush boxes, and the contact handles up to 24 V AC/DC at 1.5 A.

Suitable for

• Doorbell systems in residential or commercial buildings
• Signal and call systems requiring a simple momentary button
• Flush-mounted installations where a clean, unlit button is preferred

Key specifications

• Colour: Golf white
• Material: Thermoplastic
• Mounting: Flush-mounted
• Contact configuration: 1 normally open (NO)
• Max. voltage: 24 V AC/DC
• Max. current: 1.5 A
• Connection: Screw terminals
• Dimensions (front plate): 80 x 80 mm
• Operating temperature: -20°C to +50°C

Recommendations

For a clean, unlit bell push that matches standard flush boxes, the KKO 2001 WS/WS offers a durable and halogen-free solution.
