H-Tronic 1114780 ICL 3680 käynnistysvirtarajoitin, 3680 W, 16 A, 230 V AC, valkoinen

Limit inrush current by up to 80% with the H-Tronic ICL 3680, rated for 3680 W switching capacity at 16 A and 230 V AC. This single-phase limiter protects switching power supplies, LED drivers, transformers, and motors from current spikes at startup.

Overview

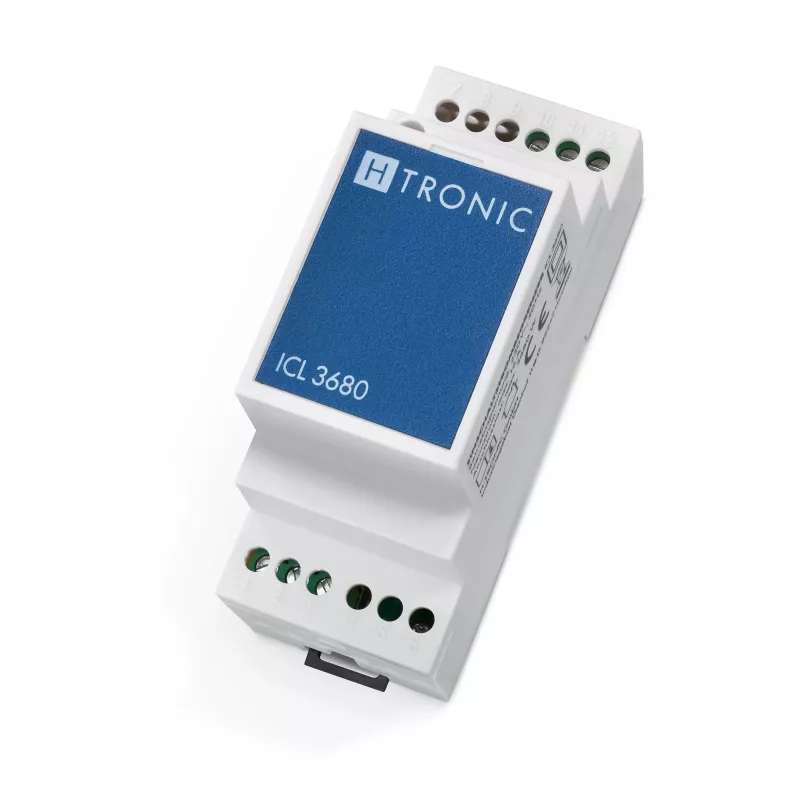

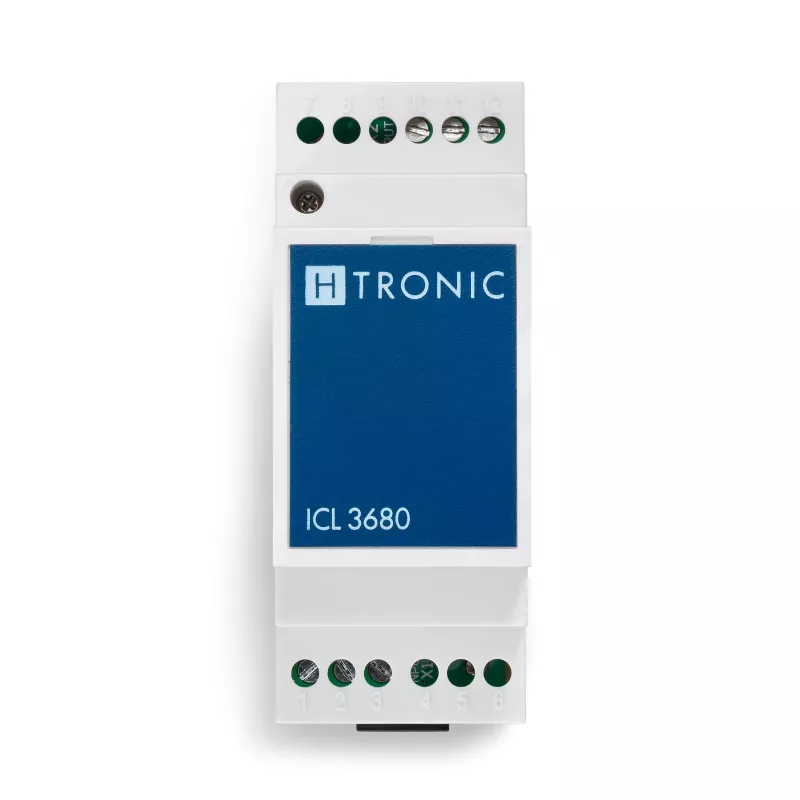

The ICL 3680 is a surface-mount inrush current limiter with screw terminals for secure wiring. It operates on 50/60 Hz and consumes less than 0.5 W in standby. The white plastic housing is IP20 rated for indoor use in temperatures from -10 to +40 °C.

What stands out

• Up to 80% inrush current reduction
• High 3680 W switching capacity
• Compact surface-mount design
• Low standby power consumption

Technical details

• Input voltage: 230 V AC
• Frequency: 50/60 Hz
• Max. current load: 16 A
• Connection: screw terminals

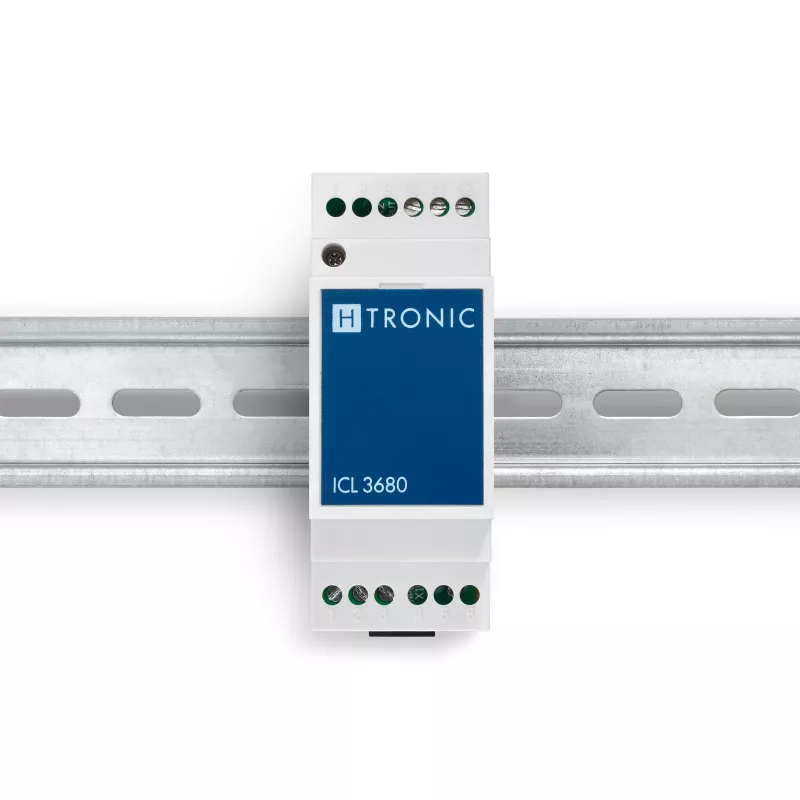

• Mounting: surface mount
• Protection class: IP20
• Operating temperature: -10 to +40 °C
• Standby power: < 0.5 W
• Phases: single-phase

Our verdict

The H-Tronic ICL 3680 is a reliable solution for reducing startup current spikes in high-power devices, ensuring smoother operation and longer component life.
