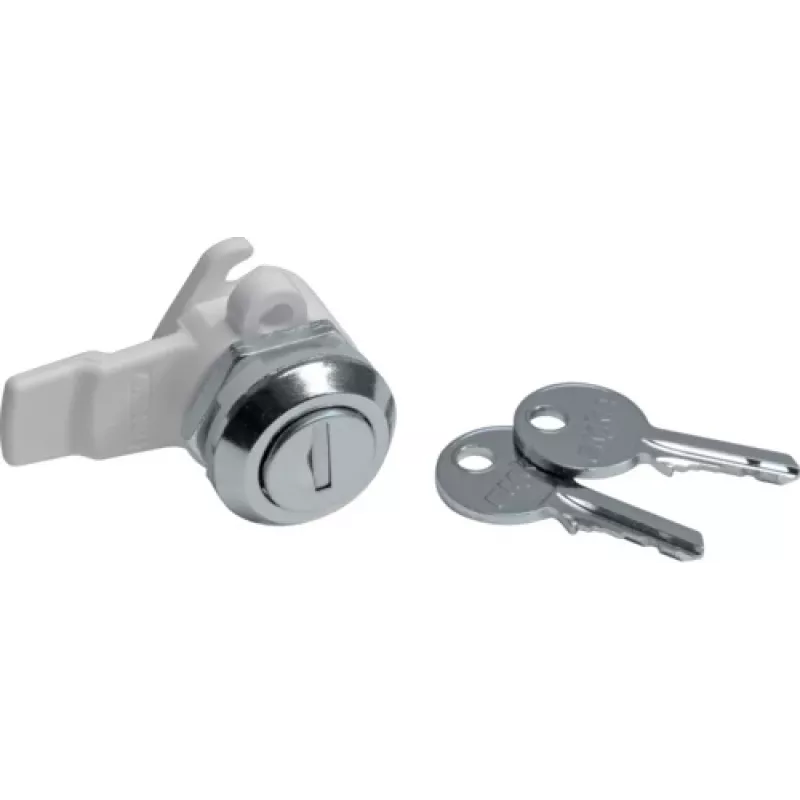

HAGER avainkahva FZ597 TeSys Vario kuormankytkimille, Ronis 455, musta

The HAGER FZ597 key handle provides a secure, key-operated control point for Schneider Electric TeSys Vario V0, V1, and V2 disconnect switches. Unlike standard rotary handles, this unit integrates a Ronis 455 key cylinder, ensuring that only authorized personnel can switch the circuit on or off, and the key can only be removed in the OFF position for added safety.

Highlights

• Key-operated handle for TeSys Vario disconnect switches
• Ronis 455 key series with two keys supplied
• Key removal only in OFF position, preventing accidental energization
• Front panel mounting with black thermoplastic handle
• 90° rotary angle for clear open/closed indication

In daily use

Mount the FZ597 on the front of your enclosure and use the key to turn the disconnect switch. The handle's 90° rotation gives a clear visual indication of the switch status. In the OFF position, the key can be withdrawn, locking the switch and preventing unauthorized operation. The robust thermoplastic handle and metal alloy key cylinder are built for industrial environments.

Full specifications

• Product type: Key handle
• Compatibility: Schneider Electric TeSys Vario V0, V1, V2 disconnect switches
• Lock type: Key-operated
• Key series: Ronis 455
• Number of keys supplied: 2
• Key removal position: OFF position
• Mounting type: Front panel mounting
• Handle colour: Black
• Handle material: Thermoplastic
• Key cylinder material: Metal alloy
• Rotary angle: 90°
• Accessory type: Control accessory
• Product range: TeSys
• Function: Main circuit breaking, emergency stop

Final note

The HAGER FZ597 combines security and simplicity, making it an essential accessory for controlled disconnect applications.
