Hager BRH6513019016 rintakourun alaosa 65x130mm liikenteenvalkoinen

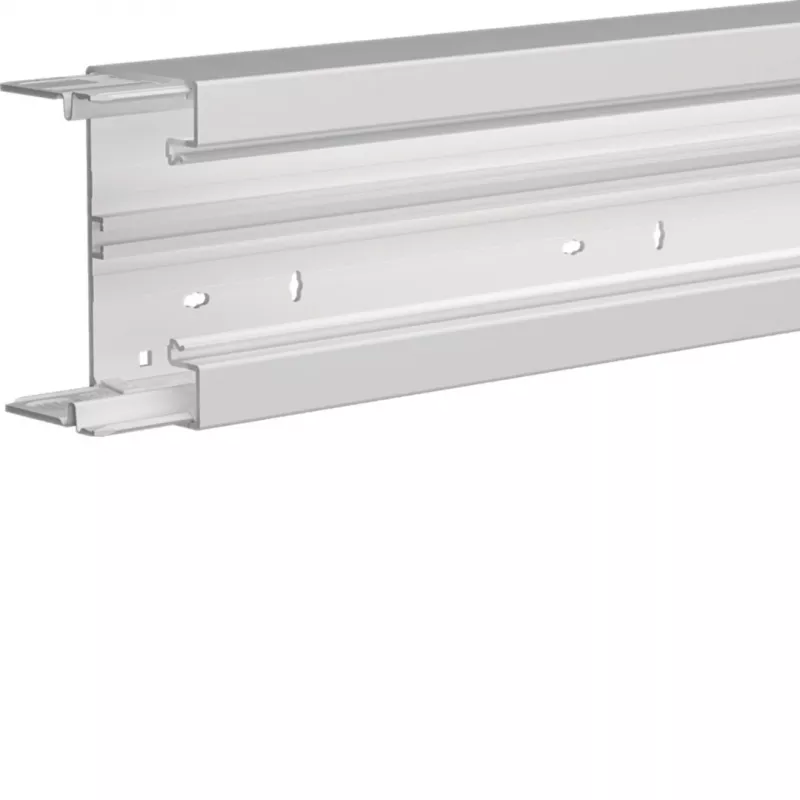

The Hager BRH6513019016 is a high-quality dado trunking base part from the BRH series, designed for professional cable management in commercial and industrial environments. Manufactured from halogen-free PVC, this trunking provides a safe and durable solution for routing power, data, and communication cables. With a compact 65x130mm cross-section and a 2-meter length, it offers ample space for organized cabling while maintaining a sleek, low-profile appearance.

Advantages

This trunking base part features a front-locking snap-on cover for quick and secure installation. Its halogen-free material ensures low smoke emission and reduced toxicity in case of fire, enhancing safety. The smooth surface finish and traffic white color (RAL 9016) blend seamlessly with modern interiors. UV resistance guarantees long-lasting performance even in sun-exposed areas.

Suitable for

• Wall-mounted cable management in offices, data centers, and retail spaces
• Routing power, data, and communication lines in surface-mounted installations
• Use with Hager BRH series accessories for complete trunking systems

Key specifications

• Product Type: Dado Trunking Base Part
• System Series: Hager BRH
• Material: PVC (Polyvinyl Chloride), Halogen-Free
• Trunking Height: 65 mm
• Trunking Width: 130 mm
• Length: 2000 mm
• Colour: Traffic White (RAL 9016)
• Cover Fastening: Front-locking / Snap-on
• Number of Compartments: Single channel (compartment ready for dividers)
• Mounting Type: Wall-mounted
• Protection Class (IP): IP20
• Flammability Rating: Self-extinguishing, flame-retardant
• Operating Temperature Range: -5 to +60 °C
• Impact Resistance: IK07
• Standards Compliance: EN 50085-1, EN 50085-2-1, RoHS
• UV Resistance: Yes
• Internal Cross-Section (approx.): 55 x 120 mm
• Surface Finish: Smooth

Recommendations

For a complete installation, pair this base part with Hager BRH series covers, dividers, and end caps. Ensure proper support at regular intervals when mounting. Suitable for use with standard cable ties and clips.
