Hager BRH6517019016 rintakourun alaosa etusnap-kiinnitys 65x170mm 2m puhtaanvalkoinen

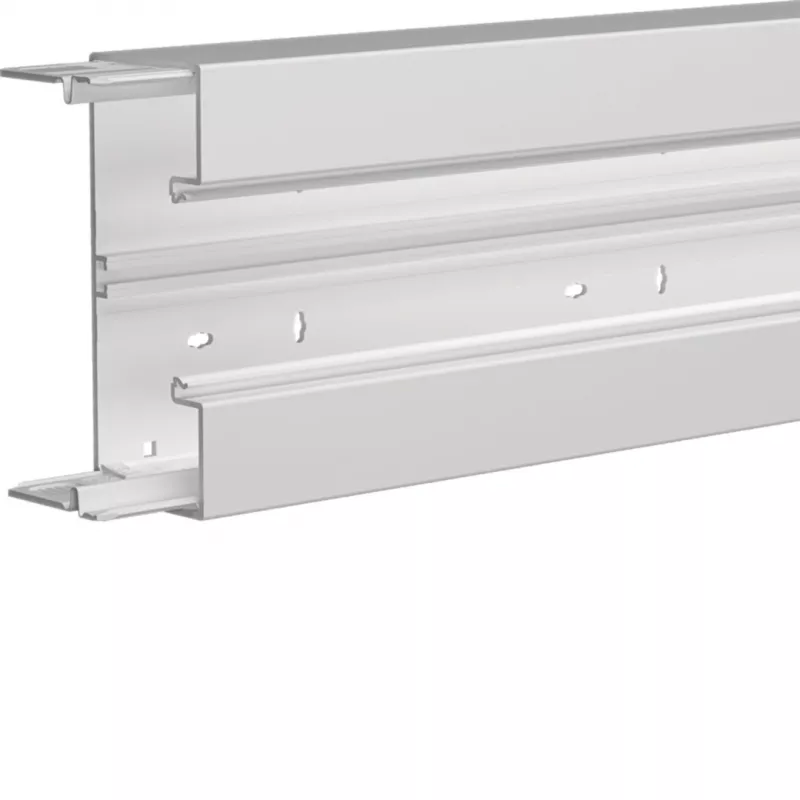

The Hager BRH6517019016 is a high-quality dado trunking base part (Brüstungskanal-Unterteil) designed for professional cable management in commercial and industrial environments. Manufactured from halogen-free PC/ABS material in pure white (RAL 9010), this front-locking base unit provides a robust and secure foundation for routing power, data, and communication cables. With dimensions of 65 mm height, 170 mm width, and 2000 mm length, it offers ample capacity for organized cable routing. The compatible cover width is 80 mm, and the system meets EN 50085-2-1 standards for trunking systems.

Advantages

Halogen-free material ensures safety in case of fire. Front-locking design allows quick and secure cover mounting. Pre-punched mounting holes simplify installation. Impact resistance IK07 provides durability. Glow-wire tested at 850 °C for enhanced fire protection.

Suitable for

• Office buildings and commercial spaces requiring organized cable management
• Industrial environments where robust trunking is needed
• Installations requiring halogen-free components for safety
• Projects needing a pure white finish (RAL 9010) for aesthetic integration

Key specifications

• Product Type: Dado Trunking Base Part (Unterschale)
• Material: PC/ABS, Halogen-Free
• Colour: Pure White (RAL 9010)
• Cover Mounting: Front-locking / Front-snapping
• Overall Height: 65 mm
• Overall Width: 170 mm
• Length: 2000 mm (2 meters)
• Compatible Cover Width: 80 mm
• Protection Class: IP30 (with cover/accessories)
• Impact Resistance: IK07
• Operating Temperature: -5 to +60 °C
• Glow-Wire Test: 850 °C (EN 60695-2-11)
• Standard Compliance: EN 50085-2-1
• Mounting: Pre-punched holes

Recommendations

For a complete installation, pair this base part with the matching Hager front-locking cover (80 mm width) and appropriate accessories. Ensure proper cable segregation according to local regulations. This product is ideal for new builds or retrofits where cable management and safety are priorities.
