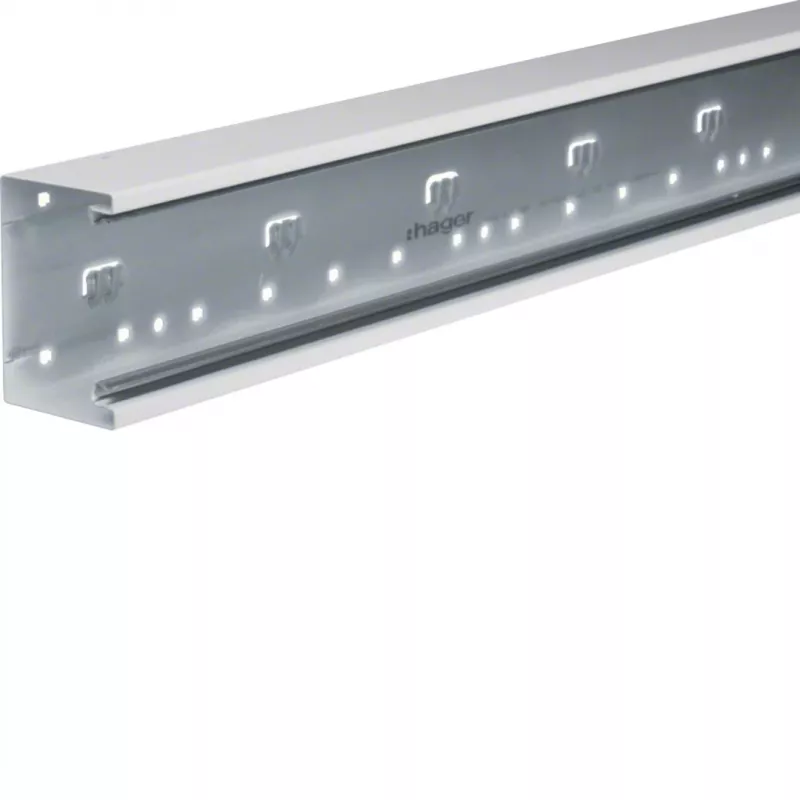

Hager BRS6510019016 jalkalistakanavan alaosa, etulukitus, 68x100mm, liikennevalkoinen, 2m

Dado trunking base unit for surface-mounted cable management, featuring a front-locking cover attachment for quick access. The 68x100mm profile in traffic white (RAL 9016) provides a single compartment for routing power and data lines, with the option to partition internally.

Advantages

Front-locking design allows covers to be snapped on without tools, simplifying installation and maintenance. The self-extinguishing PVC material enhances fire safety, while the robust construction withstands impacts up to IK07.

Suitable for

• Routing electrical and data cables along walls in offices and commercial buildings
• Retrofit installations where surface mounting is required
• Use with Hager BRS system covers and accessories for a complete trunking solution

Key specifications

• Height: 68 mm
• Width: 100 mm
• Length: 2000 mm
• Material: PVC
• Colour: Traffic white (RAL 9016)
• Number of compartments: 1
• Cover attachment: Front-locking / snap-on
• Halogen-free: No
• Self-extinguishing: Yes
• Protection class: IP30
• Impact resistance: IK07
• Operating temperature: -5°C to +60°C

Recommendations

Pair with Hager BRS front-locking covers and partition profiles to segregate power and data cabling within the same trunking run.
