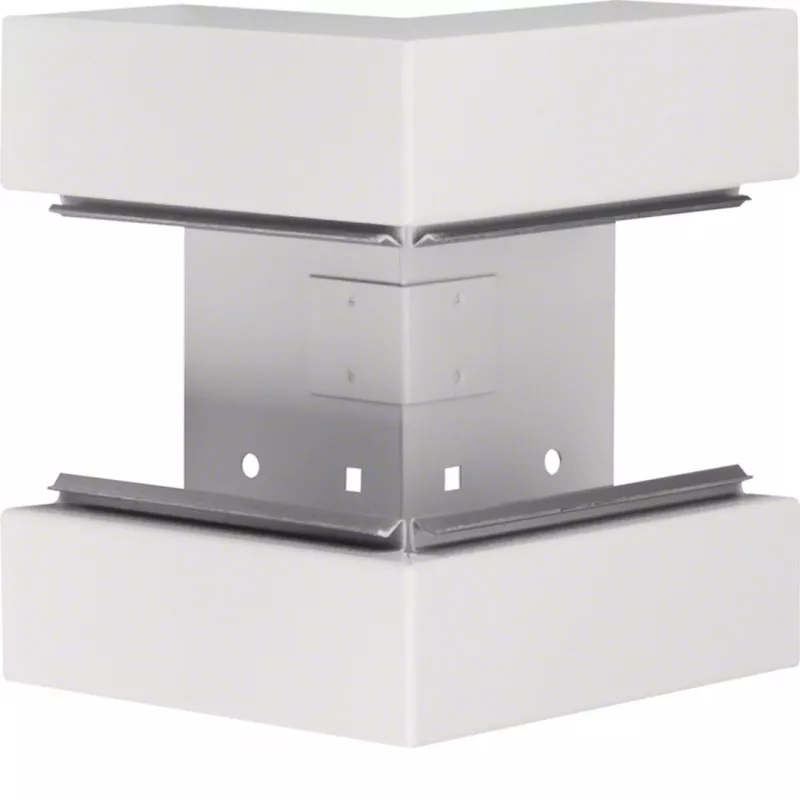

HAGER BRS6517039016 ulkokulma BRS-rintamakanavalle 170x68 mm, puhtaanvalkoinen

Electricians and installers working with the Hager BRS dado trunking system use this external corner to route cables neatly around 90-degree bends on walls. It clips directly onto the 170 x 68 mm trunking profile, creating a clean, professional finish in offices, schools, and commercial spaces.

Key specifications

• Product type: External corner
• System compatibility: Hager BRS dado trunking
• Compatible trunking profile (W x H): 170 x 68 mm
• Material: PVC
• Colour: Pure white (RAL 9010)
• Angle: 90 degrees
• Mounting type: Clip-on
• Halogen-free: Yes
• Surface finish: Matt
• Operating temperature: -5°C to +60°C

Why choose it

This corner piece matches the BRS trunking profile dimensions and colour, ensuring a seamless look. The clip-on design speeds up installation, and the halogen-free PVC material supports safer cable management in public buildings.

Ideal use cases

• Routing power and data cables around wall corners
• Completing dado trunking installations in offices, schools, and hospitals
• Retrofitting or extending existing Hager BRS trunking runs

Good to know

The corner is designed for the Hager BRS system and fits the 170 x 68 mm profile. It is supplied as a single piece in pure white to blend with standard trunking.
