HAGER ECEE325 CEE-pintapistorasia suora 32 A IP44

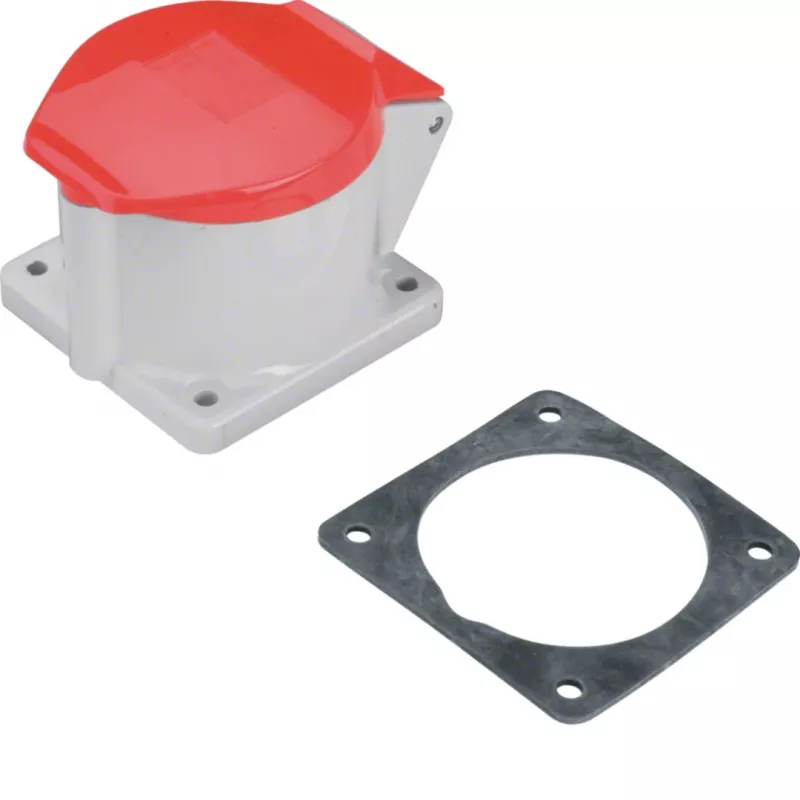

In industrial workshops, construction sites, and outdoor facilities, reliable power connections are critical. The HAGER ECEE325 CEE flange socket provides a robust 32 A, 400 V, 5-pole connection with IP44 protection against splashing water and solid objects. Its straight flange design allows secure mounting on panels or equipment housings, ensuring a safe and durable power interface for demanding environments.

Key specifications

• Current rating: 32 A
• Voltage rating: 400 V AC
• Number of poles: 5-pole (3P+N+E)
• Ingress protection: IP44
• Mounting type: Flange mounting
• Connection type: Screw terminals
• Angle: Straight
• Clock position: 6h
• Frequency: 50/60 Hz
• Housing material: Polyamide (PA)
• Colour: Red
• Max. wire cross-section: 10 mm²
• Flange dimensions (W x H): 75 x 75 mm
• Mounting hole spacing (W x H): 60 x 60 mm

Why choose it

The ECEE325 combines high current capacity with a compact flange design, making it easy to integrate into control panels, distribution boards, or mobile power units. Its polyamide housing is resistant to impact and weathering, while the screw terminals ensure a secure and maintenance-free connection.

Ideal use cases

• Industrial machinery power supply
• Construction site distribution boxes
• Outdoor event power connections
• Agricultural equipment

Good to know

The socket conforms to IEC 60309-1 and IEC 60309-2 standards, ensuring compatibility with standard CEE plugs. It operates reliably in temperatures from -25°C to +40°C, making it suitable for both indoor and outdoor applications.
