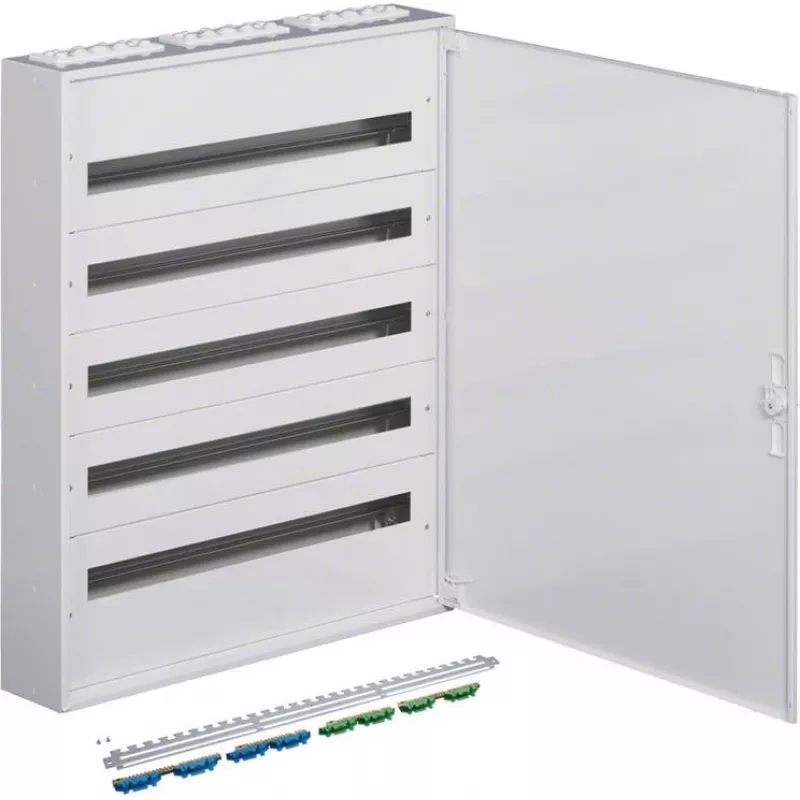

Hager FW536WT pinta-asennettava jakokeskus, 5 riviä, 180 moduulia, IP40, valkoinen

With a generous 180-module capacity across five rows, this Hager distribution board delivers the space and flexibility needed for extensive electrical installations. The integrated PE/N QuickConnect terminals, offering 42 connections each, streamline wiring and reduce installation time significantly.

Overview

The Hager FW536WT is a surface-mounted distribution board engineered for reliability and ease of use. Its white steel enclosure, finished in RAL 9010, provides a clean, professional appearance suitable for commercial and industrial environments. The board is rated IP40, offering protection against solid objects over 1mm, and IK07 impact resistance ensures durability in high-traffic areas.

What stands out

• High capacity: 5 rows × 36 modules = 180 modules total, accommodating extensive circuit configurations.
• QuickConnect PE/N terminals: 42 connections for both PE and N, simplifying and speeding up installation.
• Robust construction: Steel sheet enclosure and door with a white finish, rated IK07 for impact resistance.
• Safety compliance: Class I insulation and EN 61439-3 standard ensure safe operation at 400V AC.
• Secure access: Double bit lock prevents unauthorized access, ideal for public or shared spaces.

Technical details

• Mounting type: Surface-mounted
• Number of rows: 5
• Modules per row: 36
• Total modules: 180
• IP protection rating: IP40
• Insulation class: Class I
• Enclosure material: Steel sheet
• Door material: Steel sheet
• Door type: Opaque, white (RAL 9010)
• Colour: White
• PE/N terminals: Included

Our verdict

The Hager FW536WT combines high capacity, quick-connect convenience, and robust construction, making it an excellent choice for demanding electrical distribution projects.
